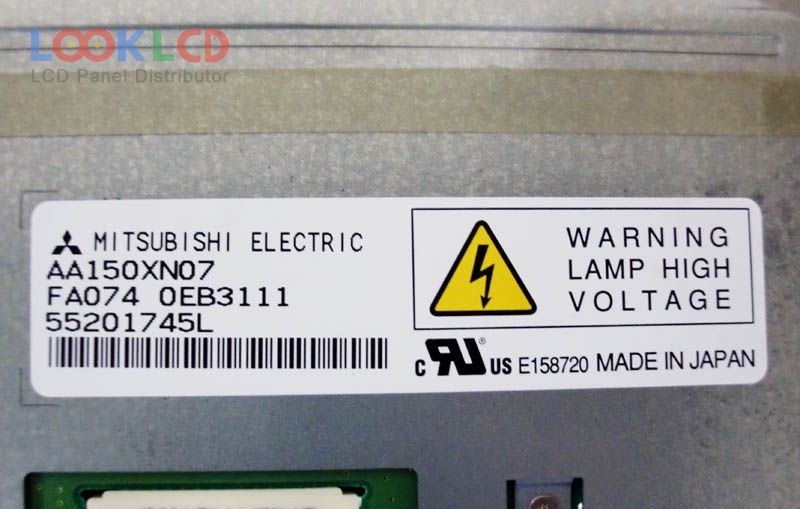

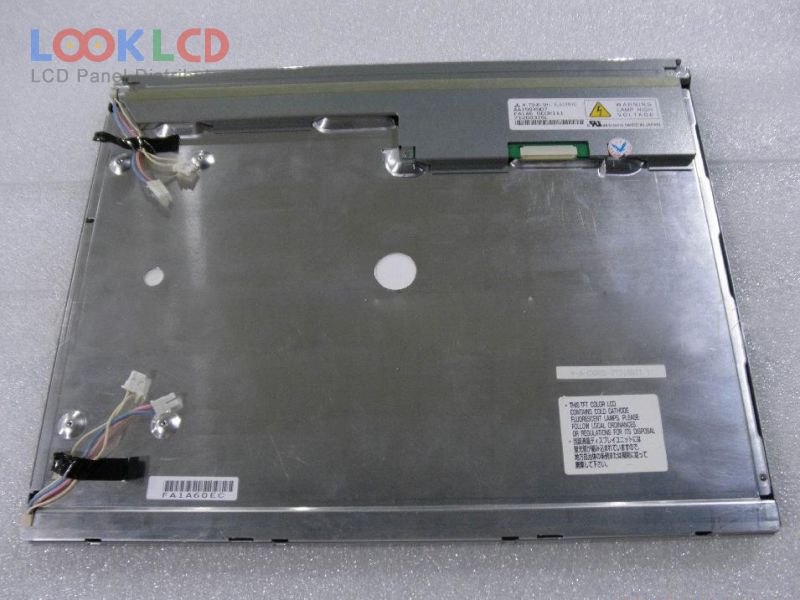

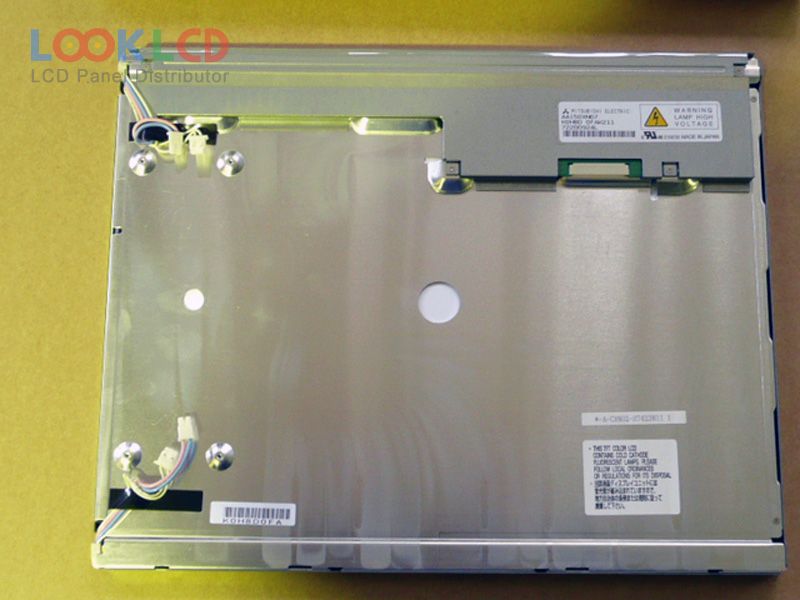

| भाग नम्बर | AA150XN07 |
| ब्रान्ड | Mitsubishi |
| साइज | 15.0 |
| आवेदन | IA |
| संकल्प | 1024×768 |
| रचना | LCM |
| चमक | 450 |
| CR | 450:1 |
| रंगहरू | 262K/16.7M |
| ब्याकलाइट | CCFL |
| इन्टरफेस | LVDS |
| प्यानल ब्रान्ड | Mitsubishi |
| प्यानल मोडेल | AA150XN07 1 Compatible model |
| प्यानल प्रकार | a-Si TFT-LCD , LCM |
| प्यानल आकार | 15.0 inch |
| संकल्प | 1024(RGB)×768 , XGA |
| प्रदर्शन मोड | TN, Normally White, Transmissive |
| सक्रिय क्षेत्र | 304.128×228.096 mm |
| रूपरेखा | 326×255×17.1 mm |
| सतह | Antiglare, Hard coating (3H) |
| चमक | 450 cd/m² (Typ.) |
| विपरीत अनुपात | 450:1 (Typ.) |
| प्रदर्शन रंगहरू | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| प्रतिक्रिया समय | 6/19 (Typ.)(Tr/Td) |
| हेर्ने कोण | 75/75/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| आवृत्ति | 60Hz |
| बत्ती प्रकार | 4 pcsCCFLWithout Driver |
| संकेत इन्टरफेस | LVDS (1 ch, 6/8-bit), 20 pins |
| इनपुट भोल्टेज | 3.3V (Typ.) |
| आवेदन | IA |
| AA150XA03B | Mitsubishi | 15.0 | 1024×768 |
| AA150XC01 | Mitsubishi | 15.0 | 1024×768 |
| AA150XN01 | Mitsubishi | 15.0 | 1024×768 |
| AA150XN02 | Mitsubishi | 15.0 | 1024×768 |
| AA150XN03 | Mitsubishi | 15.0 | 1024×768 |
| AA150XN04 | Mitsubishi | 15.0 | 1024×768 |
| AA150XN07 | Mitsubishi | 15.0 | 1024×768 |
| AA150XN09 | Mitsubishi | 15.0 | 1024×768 |
| AA150XT01 | Mitsubishi | 15.0 | 1024×768 |
| AA150XT11 | Mitsubishi | 15.0 | 1024×768 |
| AA121SK22 | Mitsubishi | 12.1 | 800×600 |
| AA121SL09 | Mitsubishi | 12.1 | 800×600 |
| ER0570B2NC6 | EDT | 5.7 | 320×240 |
| HTW-G320240B2 | Other | 5.7 | 320×240 |
| LM64183P | SHARP | 9.4 | 640×480 |
| LM80C209 | SHARP | 11.3 | 800×600 |
| LQ150X1LW73 | SHARP | 15.0 | 1024×768 |
| LQ156M3LW01 | SHARP | 15.6 | 1920×1080 |
| NL6448BC33-53 | NLT | 10.4 | 640×480 |
| SX19V007 | KOE | 7.5 | 640×480 |
