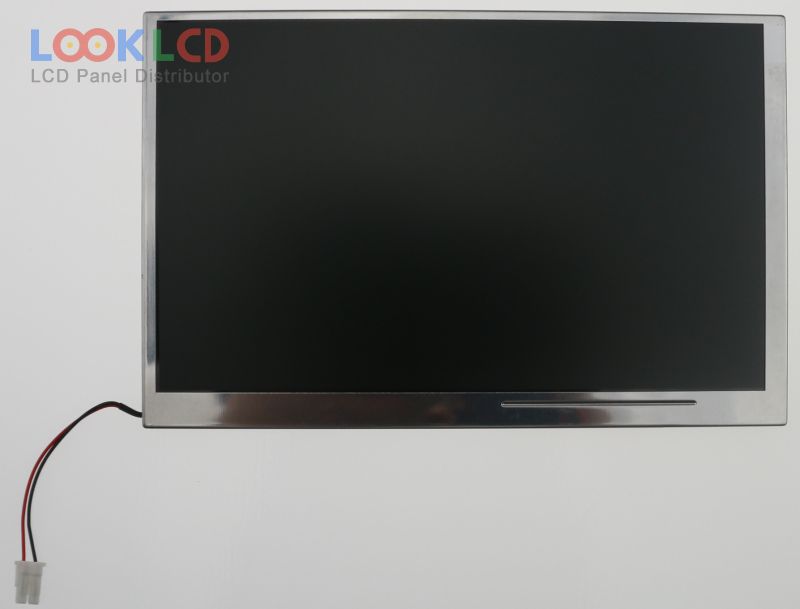

| भाग नम्बर | AM-800480RCTMQW-00H |
| ब्रान्ड | AMPIRE |
| साइज | 7.0 |
| आवेदन | IA |
| संकल्प | 800×480 |
| रचना | LCM |
| चमक | 1000 |
| CR | 400:1 |
| रंगहरू | 262K |
| ब्याकलाइट | WLED |
| इन्टरफेस | TTL |
| प्यानल ब्रान्ड | AMPIRE |
| प्यानल मोडेल | AM-800480RCTMQW-00H |
| प्यानल प्रकार | a-Si TFT-LCD , LCM |
| प्यानल आकार | 7.0 inch |
| संकल्प | 800(RGB)×480 , WVGA |
| प्रदर्शन मोड | TN, Normally White, Transmissive |
| सक्रिय क्षेत्र | 152.4×91.44 mm |
| रूपरेखा | 165×106×9.06 mm |
| सतह | |
| चमक | 1000 cd/m² (Typ.) |
| विपरीत अनुपात | 400:1 (Typ.) |
| प्रदर्शन रंगहरू | 262K (6-bit) |
| प्रतिक्रिया समय | 5/11 (Typ.)(Tr/Td) |
| हेर्ने कोण | 70/70/65/65 (Typ.)(CR≥10)(L/R/U/D) |
| आवृत्ति | 60Hz |
| बत्ती प्रकार | 5S3PWLEDWithout Driver |
| संकेत इन्टरफेस | Parallel RGB (1 ch, 6-bit), 40 pins |
| इनपुट भोल्टेज | 3.3V (Typ.) |
| आवेदन | IA |
