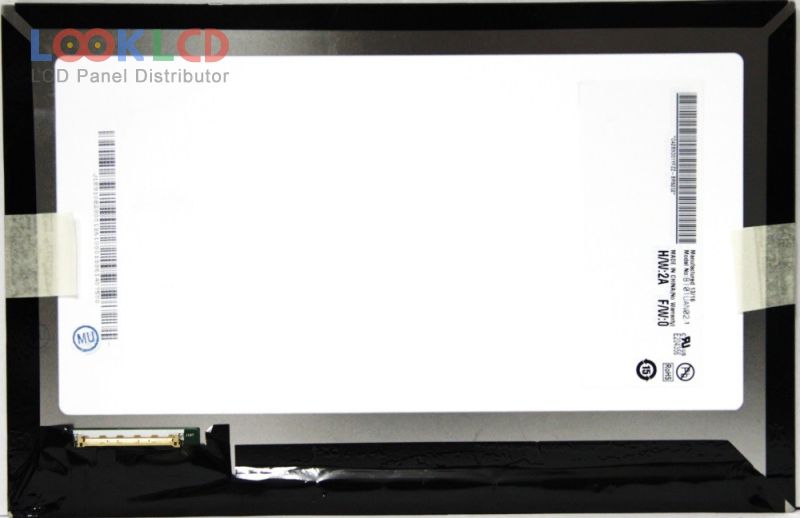

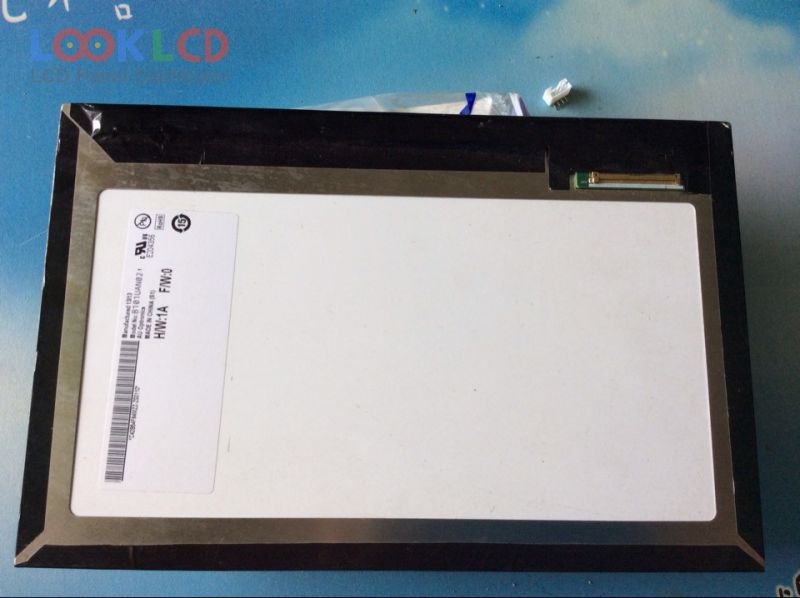

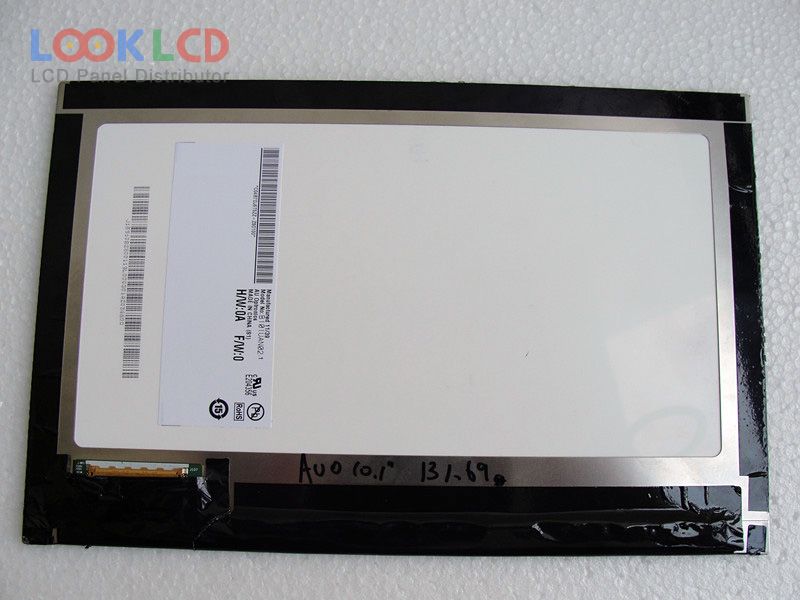

| भाग नम्बर | B101UAN02.1 |
| ब्रान्ड | AUO |
| साइज | 10.1 |
| आवेदन | PAD |
| संकल्प | 1920×1200 |
| रचना | LCM |
| चमक | 400 |
| CR | 800:1 |
| रंगहरू | 16.7M |
| ब्याकलाइट | WLED |
| इन्टरफेस | LVDS |
| प्यानल ब्रान्ड | AUO |
| प्यानल मोडेल | B101UAN02.1 1 Compatible model |
| प्यानल प्रकार | a-Si TFT-LCD , LCM |
| प्यानल आकार | 10.1 inch |
| संकल्प | 1920(RGB)×1200 , WUXGA |
| प्रदर्शन मोड | AHVA, Normally Black, Transmissive |
| सक्रिय क्षेत्र | 216.81×135.5 mm |
| रूपरेखा | 229.45×149.2×5 mm |
| सतह | Glare (Haze 0%), Hard coating (3H) |
| चमक | 400 cd/m² (Typ.) |
| विपरीत अनुपात | 800:1 (Typ.) |
| प्रदर्शन रंगहरू | 16.7M (8-bit), CIE193168% |
| प्रतिक्रिया समय | 13/12 (Typ.)(Tr/Td) |
| हेर्ने कोण | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| आवृत्ति | 60Hz |
| बत्ती प्रकार | 5 stringsWLEDWithout Driver |
| संकेत इन्टरफेस | LVDS (2 ch, 8-bit), 50 pins |
| इनपुट भोल्टेज | 3.3V (Typ.) |
| आवेदन | PAD |
