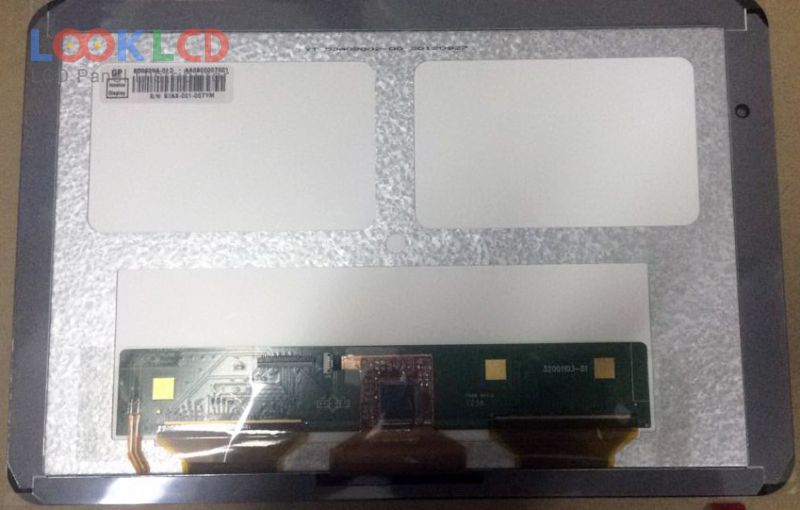

| भाग नम्बर | ED090NA-01D |
| ब्रान्ड | Innolux |
| साइज | 9.0 |
| आवेदन | PAD |
| संकल्प | 1280×800 |
| रचना | Assembly |
| चमक | 200 |
| CR | 700:1 |
| रंगहरू | 262K/16.7M |
| ब्याकलाइट | WLED |
| इन्टरफेस | LVDS |
| प्यानल ब्रान्ड | CHIMEI INNOLUX |
| प्यानल मोडेल | ED090NA-01D |
| प्यानल प्रकार | a-Si TFT-LCD , Assembly |
| प्यानल आकार | 9.0 inch |
| संकल्प | 1280(RGB)×800 , WXGA |
| सक्रिय क्षेत्र | 193.92×121.2 mm |
| रूपरेखा | 235.12×156.4×7.84 mm |
| सतह | Hard coating (7H) |
| चमक | 200 cd/m² (Typ.) |
| विपरीत अनुपात | 700:1 (Typ.) |
| प्रदर्शन रंगहरू | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193170% |
| हेर्ने कोण | 70/70/70/50 (Typ.)(CR≥10)(L/R/U/D) |
| आवृत्ति | 60Hz |
| संकेत इन्टरफेस | LVDS (1 ch, 6/8-bit), 51 pins |
| इनपुट भोल्टेज | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| आवेदन | PAD |
