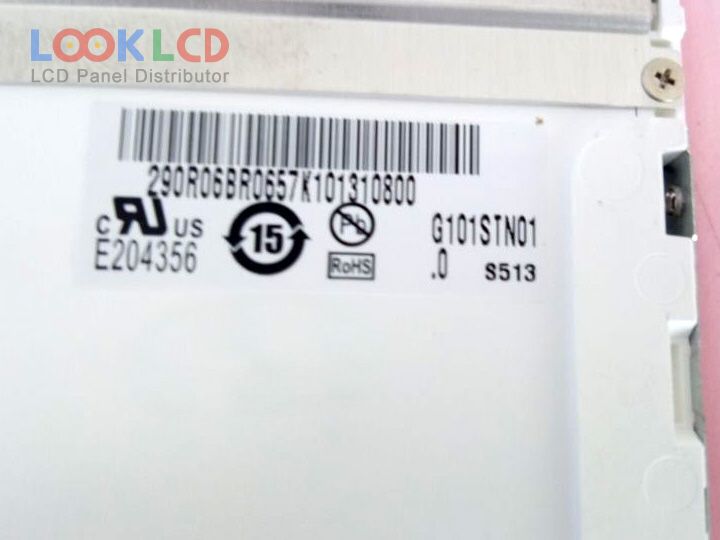

| भाग नम्बर | G101STN01.0 |
| ब्रान्ड | AUO |
| साइज | 10.1 |
| आवेदन | IA |
| संकल्प | 1024×600 |
| रचना | LCM |
| चमक | 250 |
| CR | 500:1 |
| रंगहरू | 262K/16.7M |
| ब्याकलाइट | WLED |
| इन्टरफेस | LVDS |
| प्यानल ब्रान्ड | AUO |
| प्यानल मोडेल | G101STN01.0 |
| प्यानल प्रकार | a-Si TFT-LCD , LCM |
| प्यानल आकार | 10.1 inch |
| संकल्प | 1024(RGB)×600 , WSVGA |
| प्रदर्शन मोड | TN, Normally White, Transmissive |
| सक्रिय क्षेत्र | 222.72×125.28 mm |
| रूपरेखा | 235×143×5.2 mm |
| सतह | Antiglare, Hard coating (3H) |
| चमक | 250 cd/m² (Typ.) |
| विपरीत अनुपात | 500:1 (Typ.) |
| प्रदर्शन रंगहरू | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193145% |
| प्रतिक्रिया समय | 7/9 (Typ.)(Tr/Td) |
| हेर्ने कोण | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| आवृत्ति | 60Hz |
| बत्ती प्रकार | WLEDEmbedded (LED Driver) |
| संकेत इन्टरफेस | LVDS (1 ch, 6/8-bit), 40 pins |
| इनपुट भोल्टेज | 3.3V (Typ.) |
| आवेदन | IA |
| B101AW06 V4 | AUO | 10.1 | 1024×600 |
| B101UAN07.2 | AUO | 10.1 | 1200×1920 |
| G101STN01.0 | AUO | 10.1 | 1024×600 |
| G101STN01.2 | AUO | 10.1 | 1024×600 |
| G101STN01.3 | AUO | 10.1 | 1024×600 |
| HJ101NA-02A | Innolux | 10.1 | 1280×800 |
| HSD101PFW3-D00 | HannStar | 10.1 | 1024×600 |
| HSD101PWW2-A00 | HannStar | 10.1 | 1280×800 |
| LP101WSB-TLN1 | LG Display | 10.1 | 1024×600 |
| LP101WX1-SLP2 | LG Display | 10.1 | 1280×800 |
| B084SN01 V2 | AUO | 8.4 | 800×600 |
| C555001 | SII | 5.7 | 320×240 |
| G104SN02 V1 | AUO | 10.4 | 800×600 |
| G150XG03 V1 | AUO | 15.0 | 1024×768 |
| KCB6448BSTT-X5 | Kyocera | 10.4 | 640×480 |
| LLB121ST01 | Samsung | 12.1 | 800×600 |
| LTM04C380K | TOSHIBA | 4.0 | 640×480 |
| NL6448BC26-11 | NLT | 8.4 | 640×480 |
| NL8060BC31-01 | NLT | 12.1 | 800×600 |
| RGS24128064WW001 | RiTdisplay | 2.4 | 128×64 |
