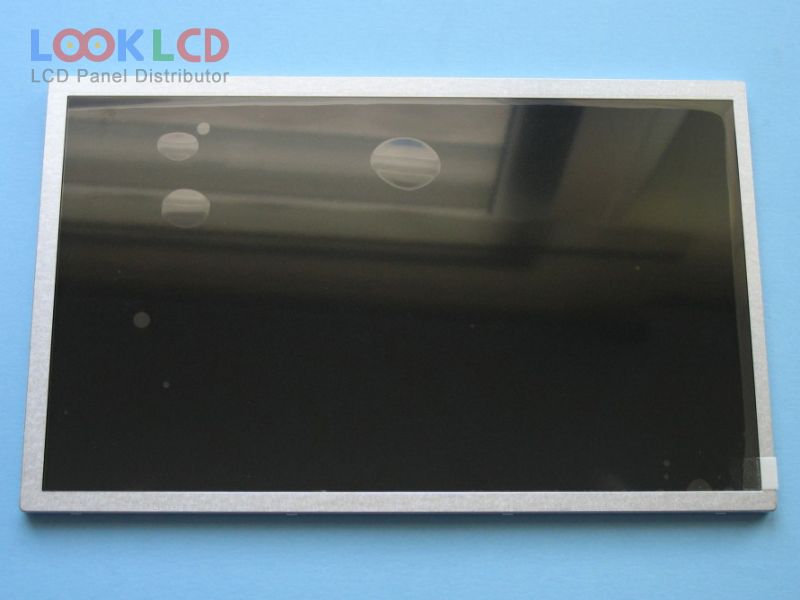

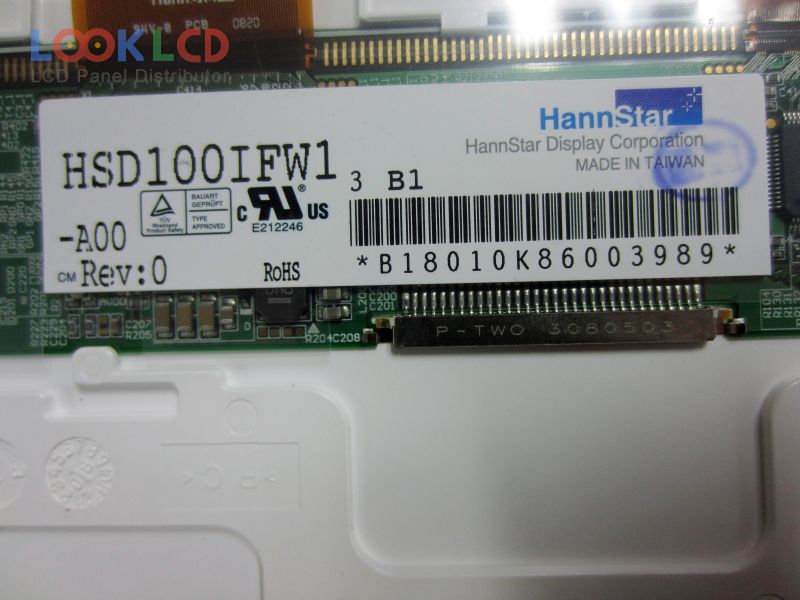

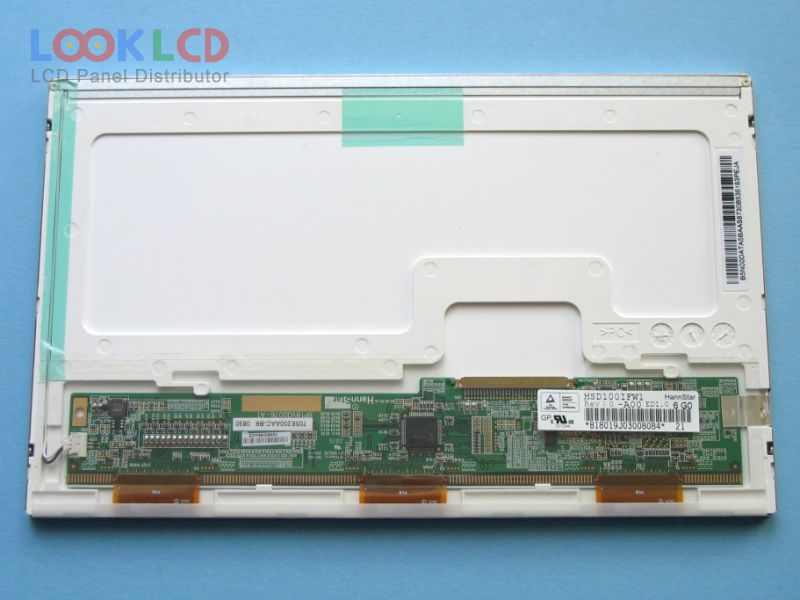

| भाग नम्बर | HSD100IFW1-A00 |
| ब्रान्ड | HannStar |
| साइज | 10.1 |
| आवेदन | DPF |
| संकल्प | 1024×600 |
| रचना | LCM |
| चमक | 250 |
| CR | 500:1 |
| रंगहरू | 262K |
| ब्याकलाइट | WLED |
| इन्टरफेस | LVDS |
| प्यानल ब्रान्ड | HannStar |
| प्यानल मोडेल | HSD100IFW1-A00 5 Compatible model |
| प्यानल प्रकार | a-Si TFT-LCD , LCM |
| प्यानल आकार | 10.1 inch |
| संकल्प | 1024(RGB)×600 , WSVGA |
| प्रदर्शन मोड | TN, Normally White, Transmissive |
| सक्रिय क्षेत्र | 220.416×129.15 mm |
| रूपरेखा | 235×145.8×5.8 mm |
| सतह | Antiglare, Hard coating (3H) |
| चमक | 250 cd/m² (Typ.) |
| विपरीत अनुपात | 500:1 (Typ.) |
| प्रदर्शन रंगहरू | 262K (6-bit) |
| प्रतिक्रिया समय | 5/20 (Typ.)(Tr/Td) |
| हेर्ने कोण | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| आवृत्ति | 60Hz |
| बत्ती प्रकार | WLEDEmbedded (LED Driver) |
| संकेत इन्टरफेस | LVDS (1 ch, 6-bit), 30 pins |
| इनपुट भोल्टेज | 3.3V (Typ.) |
| आवेदन | DPF |
| CLAA101FP01 | CPT | 10.1 | 1920×1200 |
| HSD100IFW1-A00 | HannStar | 10.1 | 1024×600 |
| HSD100IFW1-A02 | HannStar | 10.1 | 1024×600 |
| HSD100IFW1-A04 | HannStar | 10.1 | 1024×600 |
| HSD100IFW1-C01 | HannStar | 10.1 | 1024×600 |
| HSD100IFW1-F01 | HannStar | 10.1 | 1024×600 |
| HSD100IFW1-F03 | HannStar | 10.1 | 1024×600 |
| HSD100IFW3-A00 | HannStar | 10.1 | 1024×600 |
| HSD100IFW4-A00 | HannStar | 10.1 | 1024×600 |
| HSD100IXN1-A00 | HannStar | 10.0 | 1024×768 |
| A085FW01 V5 | AUO | 8.5 | 480×234 |
| AT070TN84 | Innolux | 7.0 | 800×480 |
| AT102TN03 V.1 | Innolux | 10.2 | 800×480 |
| CLAA080MB0DCW | CPT | 8.0 | 800×600 |
| EJ080NA-05A | Innolux | 8.0 | 800×600 |
| HSD090ICW1-A00 | HannStar | 9.0 | 640×234 |
| HSD101PFW2-A00 | HannStar | 10.1 | 1024×600 |
| LQ090Y3DG01A | SHARP | 9.0 | 800×480 |
| PM070WM3 | E Ink | 7.0 | 800×480 |
| TM070RDH13 | Tianma | 7.0 | 800×480 |
