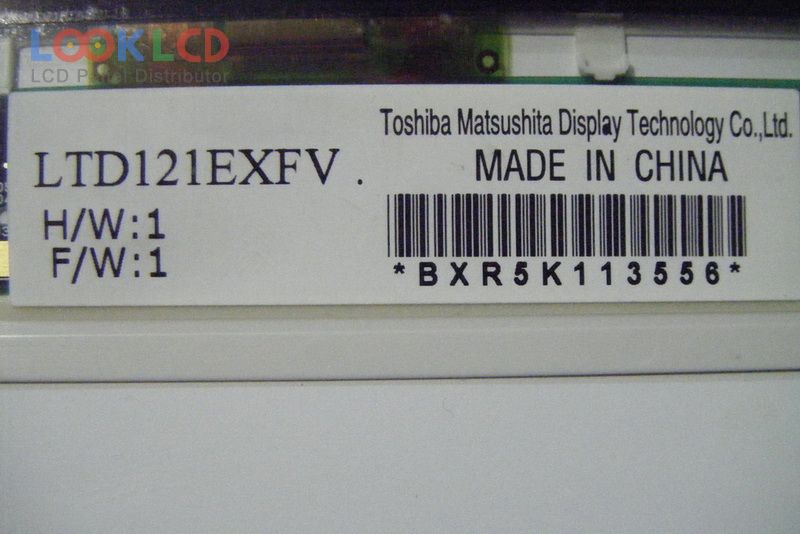

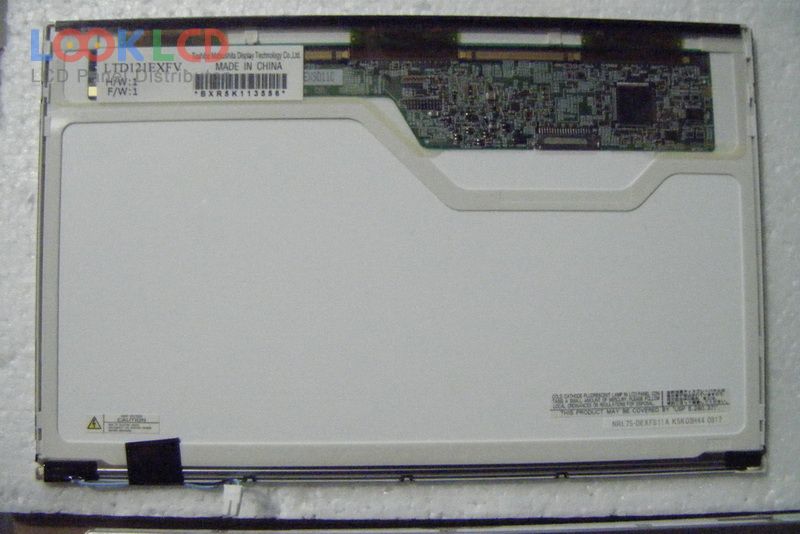

| भाग नम्बर | LTD121EXFV |
| ब्रान्ड | TOSHIBA |
| साइज | 12.1 |
| आवेदन | NBPC |
| संकल्प | 1280×768 |
| रचना | LCM |
| चमक | 200 |
| CR | 600:1 |
| रंगहरू | 262K |
| ब्याकलाइट | CCFL |
| इन्टरफेस | LVDS |
| प्यानल ब्रान्ड | Toshiba Matsushita |
| प्यानल मोडेल | LTD121EXFV 1 Compatible model |
| प्यानल प्रकार | LTPS TFT-LCD , LCM |
| प्यानल आकार | 12.1 inch |
| संकल्प | 1280(RGB)×768 , WXGA |
| प्रदर्शन मोड | TN, Normally White, Transmissive |
| सक्रिय क्षेत्र | 263.04×157.824 mm |
| रूपरेखा | 275×173.5×5.2 mm |
| आकार शैली | Wedge (PCBA Bent, Depth ≥5.2mm) |
| सतह | Glare (Haze 0%), Hard coating (2H) |
| चमक | 200 cd/m² (Typ.) |
| विपरीत अनुपात | 600:1 (Typ.) |
| प्रदर्शन रंगहरू | 262K (6-bit) |
| प्रतिक्रिया समय | 50 (Max.)(Tr+Td) |
| हेर्ने कोण | 30/30/10/20 (Typ.)(CR≥10)(L/R/U/D) |
| आवृत्ति | 60Hz |
| बत्ती प्रकार | 1 pcsCCFLWithout Driver |
| संकेत इन्टरफेस | LVDS (1 ch, 6-bit), 20 pins |
| इनपुट भोल्टेज | 3.3V (Typ.) |
| rohs: | |
| आवेदन | NBPC |
