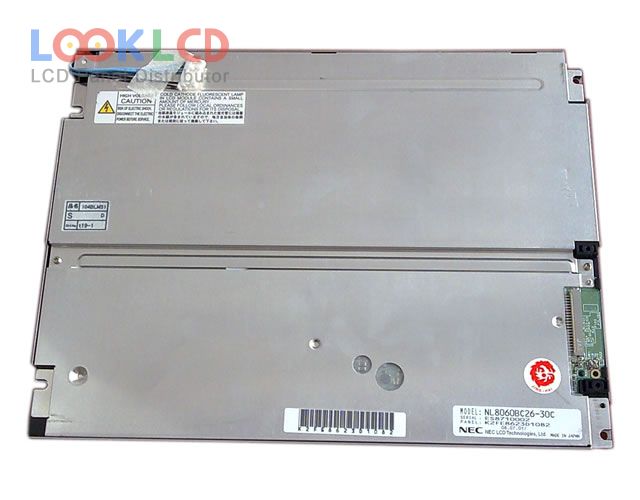

| भाग नम्बर | NL8060BC26-30C |
| ब्रान्ड | NLT |
| साइज | 10.4 |
| आवेदन | IA |
| संकल्प | 800×600 |
| रचना | LCM |
| चमक | 550 |
| CR | 900:1 |
| रंगहरू | 262K/16.7M |
| ब्याकलाइट | CCFL |
| इन्टरफेस | LVDS |
| प्यानल ब्रान्ड | NEC |
| प्यानल मोडेल | NL8060BC26-30C |
| प्यानल प्रकार | a-Si TFT-LCD , LCM |
| प्यानल आकार | 10.4 inch |
| संकल्प | 800(RGB)×600 , SVGA |
| प्रदर्शन मोड | TN, Normally White, Transmissive |
| सक्रिय क्षेत्र | 211.2×158.4 mm |
| रूपरेखा | 243×185.1×11 mm |
| सतह | Clear, Hard coating (2H), Antireflection |
| चमक | 550 cd/m² (Typ.) |
| विपरीत अनुपात | 900:1 (Typ.) |
| प्रदर्शन रंगहरू | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193140% |
| प्रतिक्रिया समय | 3/15 (Typ.)(Tr/Td) |
| हेर्ने कोण | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| आवृत्ति | 60Hz |
| बत्ती प्रकार | 2 pcsCCFLWithout Driver |
| संकेत इन्टरफेस | LVDS (1 ch, 6/8-bit), 20 pins |
| इनपुट भोल्टेज | 3.3V (Typ.) |
| आवेदन | IA |
