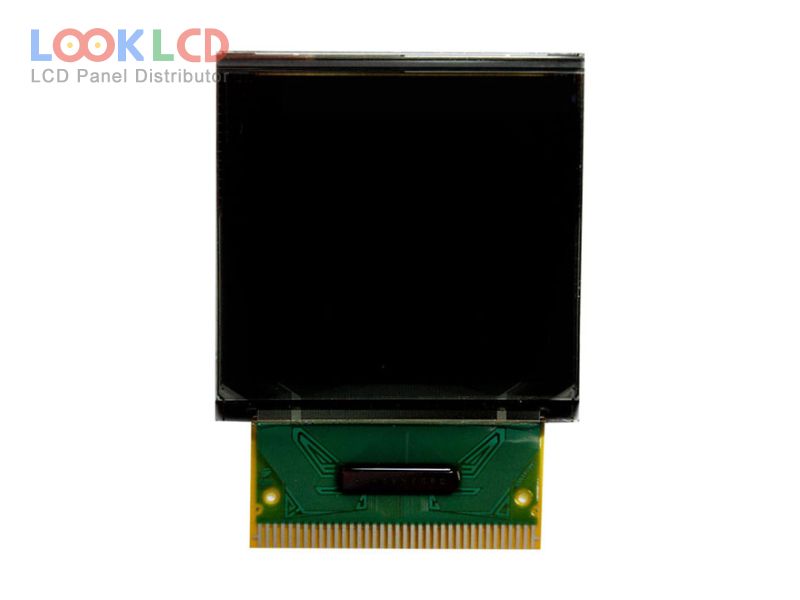

| भाग नम्बर | OEL9M1004-L4-E |
| ब्रान्ड | Other |
| साइज | 1.5 |
| आवेदन | SW |
| संकल्प | 128×128 |
| रचना | OLED |
| चमक | 80 |
| CR | 5000:1 |
| रंगहरू | 262K |
| ब्याकलाइट | self |
| इन्टरफेस | CPU/SPI |
| प्यानल ब्रान्ड | TRULY |
| प्यानल मोडेल | OEL9M1004-L4-E |
| प्यानल प्रकार | PM-OLED , OLED |
| प्यानल आकार | 1.5 inch |
| संकल्प | 128(RGB)×128 |
| सक्रिय क्षेत्र | 27.23×27.23 mm |
| रूपरेखा | 35.5×34.6×1.55 mm |
| सतह | |
| चमक | 80 cd/m² (Typ.) |
| विपरीत अनुपात | 5000 : 1 (Min.) |
| प्रदर्शन रंगहरू | 262K (6-bit), CIE193160% |
| हेर्ने कोण | 85/85/85/85 (Min.)(L/R/U/D) |
| आवृत्ति | 100Hz |
| चालक आईसी | COF Built-in SSD1355U8R1 |
| संकेत इन्टरफेस | 8/16/18-bit 6800/8080 parallel, 3/4-wire SPI, 37 pins |
| आवेदन | SW |
| OEL9M1003-L3-E | Other | 1.1 | 96×96 |
| OEL9M1004-L4-E | Other | 1.5 | 128×128 |
| OEL9M1007-B-E | Other | 1.1 | 96×96 |
| OEL9M1007-G-E | Other | 1.1 | 96×96 |
| OEL9M1007-R-E | Other | 1.1 | 96×96 |
| OEL9M1007-Y-E | Other | 1.1 | 96×96 |
| OEL9M1010-B-E | Other | 0.95 | 96×64 |
| OEL9M1010-G-E | Other | 0.95 | 96×64 |
| OEL9M1010-W-E | Other | 0.95 | 96×64 |
| OEL9M1010-Y-E | Other | 0.95 | 96×64 |
| LPM012A154A | JDI | 1.2 | 218×218 |
| LS012B7DH02 | SHARP | 1.2 | 240×240 |
| OEL9M0084-B-E | Other | 0.91 | 128×32 |
| OEL9M0084-G-E | Other | 0.91 | 128×32 |
| OEL9M0084-W-E | Other | 0.91 | 128×32 |
| OEL9M0084-Y-E | Other | 0.91 | 128×32 |
| OEL9M1007-B-E | Other | 1.1 | 96×96 |
| OEL9M1007-W-E | Other | 1.1 | 96×96 |
| OEL9M1007-Y-E | Other | 1.1 | 96×96 |
| OEL9M1010-R-E | Other | 0.95 | 96×64 |
