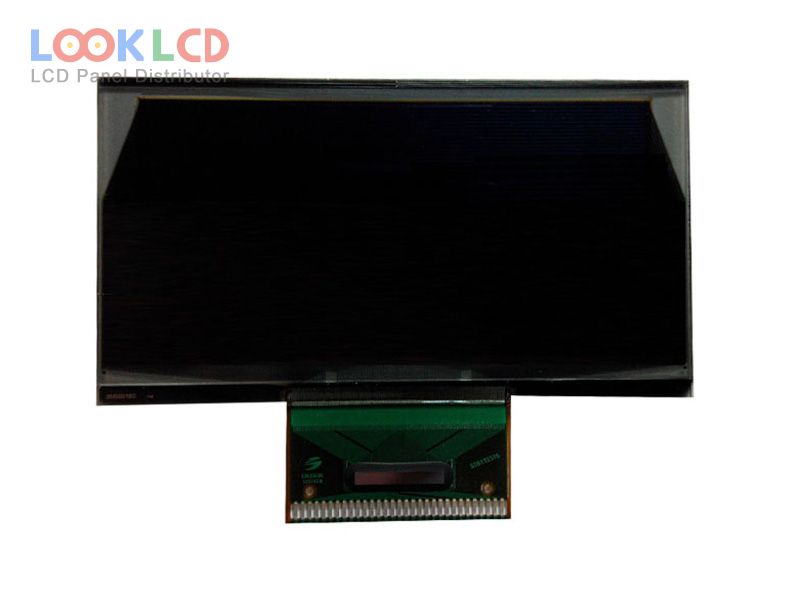

| भाग नम्बर | OEL9M5003-B-E |
| ब्रान्ड | Other |
| साइज | 2.7 |
| आवेदन | |
| संकल्प | 128×64 |
| रचना | OLED |
| चमक | |
| CR | 10000:1 |
| रंगहरू | Mono(Blue) |
| ब्याकलाइट | self |
| इन्टरफेस | CPU/SPI |
| प्यानल ब्रान्ड | TRULY |
| प्यानल मोडेल | OEL9M5003-B-E |
| प्यानल प्रकार | PM-OLED , OLED |
| प्यानल आकार | 2.7 inch |
| संकल्प | 128×64 |
| सक्रिय क्षेत्र | 61.41×30.69 mm |
| रूपरेखा | 73×40.24×2.15 mm |
| सतह | |
| चमक | |
| विपरीत अनुपात | 10000 : 1 (Min.) |
| प्रदर्शन रंगहरू | Mono(Blue) (1-bit) |
| हेर्ने कोण | 80/80/80/80 (Min.)(L/R/U/D) |
| आवृत्ति | 100Hz |
| चालक आईसी | TAB Built-in SSD1305T7R1 |
| संकेत इन्टरफेस | 8-bit 6800/8080 parallel, SPI, 30 pins |
| इनपुट भोल्टेज | 3.0/13.0V (Typ.)(VDD/VCC) |
