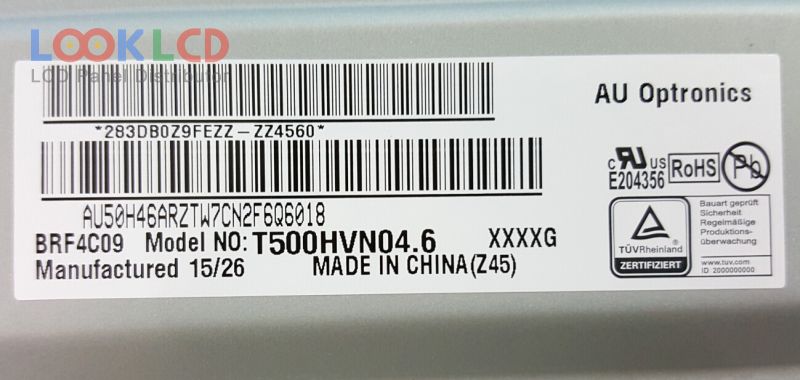

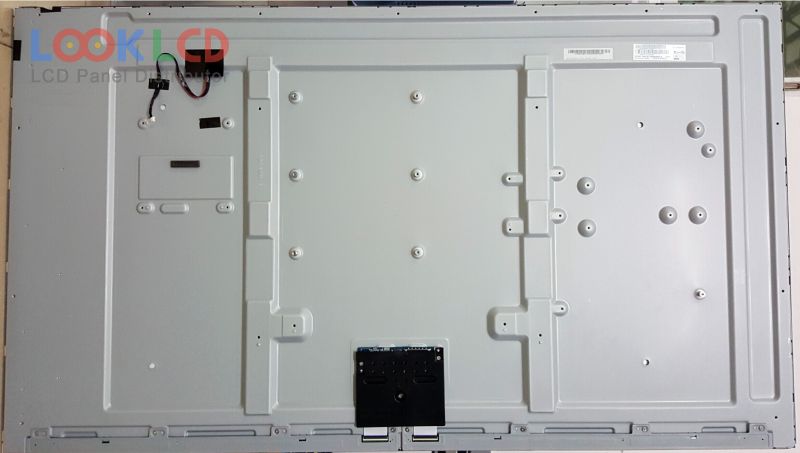

| भाग नम्बर | T500HVN04.6 |
| ब्रान्ड | AUO |
| साइज | 50 |
| आवेदन | LCTV |
| संकल्प | 1920×1080 |
| रचना | LCM |
| चमक | 300 |
| CR | 3000:1 |
| रंगहरू | 16.7M |
| ब्याकलाइट | WLED |
| इन्टरफेस | LVDS |
| प्यानल ब्रान्ड | AUO |
| प्यानल मोडेल | T500HVN04.6 |
| प्यानल प्रकार | a-Si TFT-LCD , LCM |
| प्यानल आकार | 50 inch |
| संकल्प | 1920(RGB)×1080 , FHD |
| प्रदर्शन मोड | AMVA3, Normally Black, Transmissive |
| सक्रिय क्षेत्र | 1095.84×616.41 mm |
| रूपरेखा | 1115×638.4×21.8 mm |
| सतह | Antiglare (Haze 2%), Hard coating (3H) |
| चमक | 300 cd/m² (Typ.) |
| विपरीत अनुपात | 3000:1 (Typ.) |
| प्रदर्शन रंगहरू | 16.7M (8-bit), CIE193172% |
| प्रतिक्रिया समय | 6.5 (Typ.)(G to G) |
| हेर्ने कोण | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| आवृत्ति | 60Hz |
| बत्ती प्रकार | WLEDWithout Driver |
| संकेत इन्टरफेस | LVDS (2 ch, 8-bit), 51 pins |
| इनपुट भोल्टेज | 12.0V (Typ.) |
| आवेदन | LCTV |
