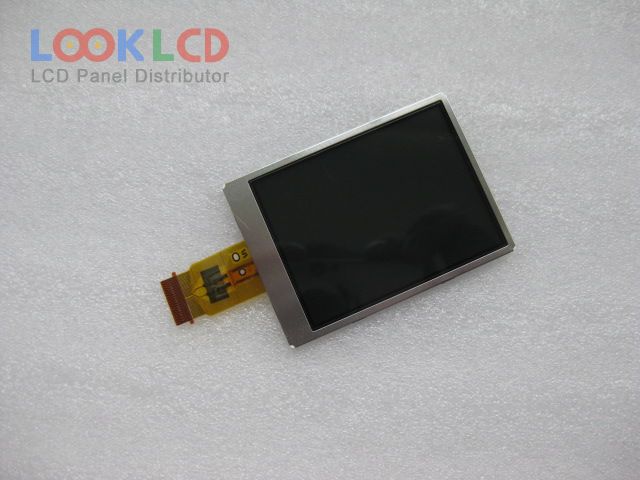

| भाग नम्बर | TD025THEA3 |
| ब्रान्ड | TPO |
| साइज | 2.5 |
| आवेदन | DSC |
| संकल्प | 320×240 |
| रचना | LCM |
| चमक | 250 |
| CR | 300:1 |
| रंगहरू | 16.7M |
| ब्याकलाइट | WLED |
| इन्टरफेस | Serial RGB |
| प्यानल ब्रान्ड | TPO |
| प्यानल मोडेल | TD025THEA3 |
| प्यानल प्रकार | LTPS TFT-LCD , LCM |
| प्यानल आकार | 2.5 inch |
| संकल्प | 320(RGB)×240 , QVGA |
| प्रदर्शन मोड | TN, Normally White, Transmissive |
| सक्रिय क्षेत्र | 50.91×38.16 mm |
| रूपरेखा | 61.7×44.5 mm |
| सतह | Hard coating (3H) |
| चमक | 250 cd/m² (Typ.) |
| विपरीत अनुपात | 300:1 (Typ.) |
| प्रदर्शन रंगहरू | 16.7M (8-bit) |
| प्रतिक्रिया समय | 13/22 (Typ.)(Tr/Td) |
| हेर्ने कोण | 40/40/20/50 (Typ.)(CR≥10)(L/R/U/D) |
| बत्ती प्रकार | 2S1PWLEDWithout Driver |
| संकेत इन्टरफेस | Serial RGB (8-bit) + SPI, CCIR601, 39 pins |
| इनपुट भोल्टेज | 3.0V (Typ.) |
| आवेदन | DSC |
