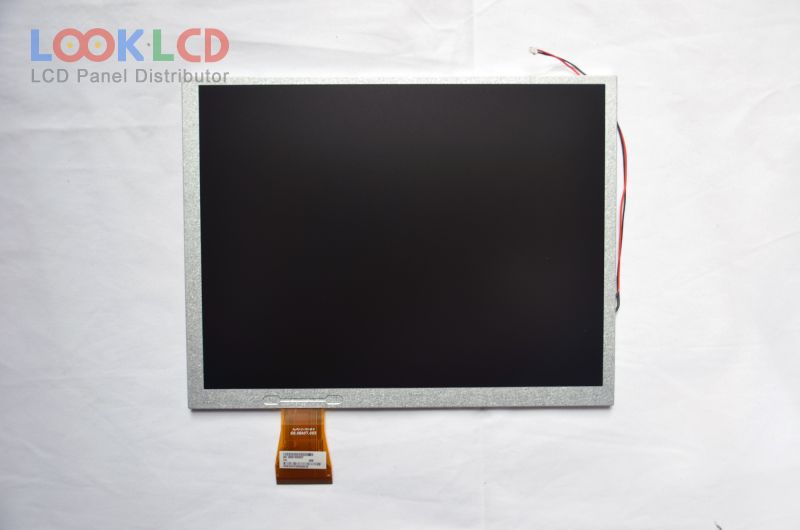

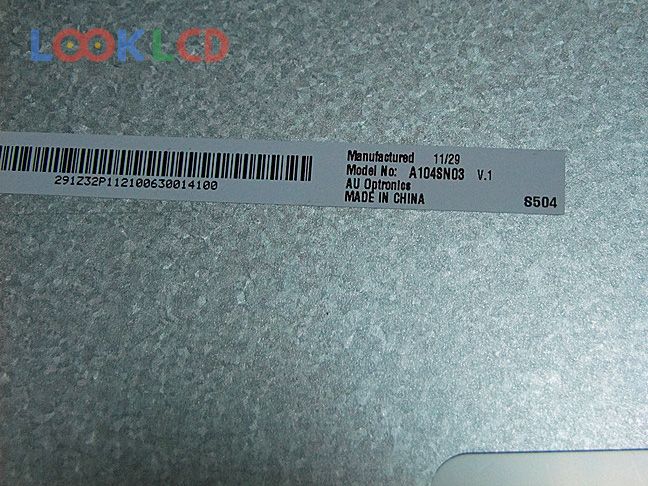

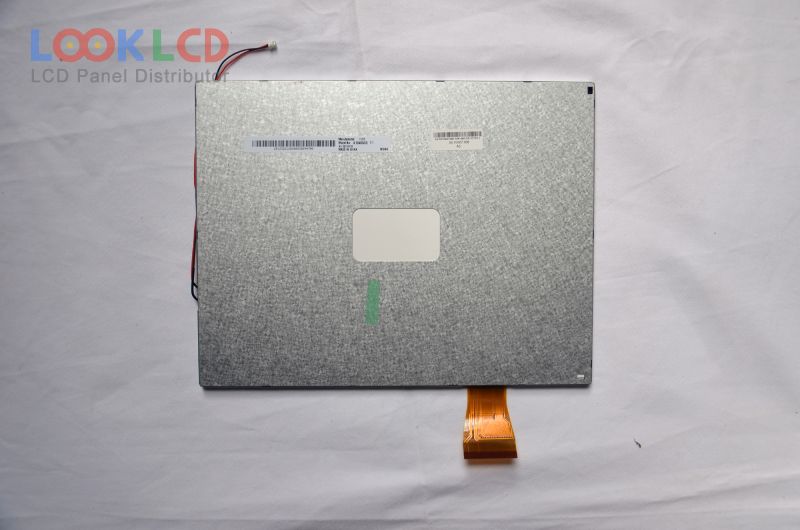

| भाग नम्बर | A104SN03 V1 |
| ब्रान्ड | AUO |
| साइज | 10.4 |
| आवेदन | DPF |
| संकल्प | 800×600 |
| रचना | LCM |
| चमक | 350 |
| CR | 500:1 |
| रंगहरू | 262K/16.2M |
| ब्याकलाइट | WLED |
| इन्टरफेस | TTL |
| प्यानल ब्रान्ड | AUO |
| प्यानल मोडेल | A104SN03 V1 |
| प्यानल प्रकार | a-Si TFT-LCD , LCM |
| प्यानल आकार | 10.4 inch |
| संकल्प | 800(RGB)×600 , SVGA |
| प्रदर्शन मोड | TN, Normally White, Transmissive |
| सक्रिय क्षेत्र | 211.2×158.4 mm |
| रूपरेखा | 228.4×175.4×6.5 mm |
| सतह | Antiglare, Hard coating (3H) |
| चमक | 350 cd/m² (Typ.) |
| विपरीत अनुपात | 500:1 (Typ.) |
| प्रदर्शन रंगहरू | 262K/16.2M (6-bit / 6-bit + Dithering), CIE193150% |
| प्रतिक्रिया समय | 30 (Typ.)(Tr+Td) |
| हेर्ने कोण | 75/75/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| आवृत्ति | 60Hz |
| बत्ती प्रकार | 3S12PWLEDWithout Driver |
| संकेत इन्टरफेस | TTL (1 ch, 6/8-bit) + SPI, 60 pins |
| इनपुट भोल्टेज | 3.3/11/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| आवेदन | DPF |
