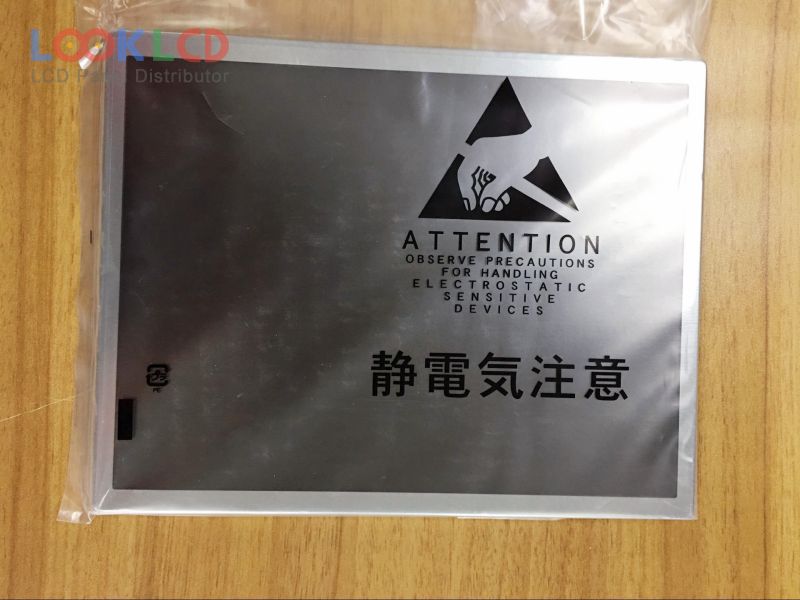

| भाग नम्बर | AA104SH02 |
| ब्रान्ड | Mitsubishi |
| साइज | 10.4 |
| आवेदन | IA |
| संकल्प | 800×600 |
| रचना | LCM |
| चमक | 700 |
| CR | 700:1 |
| रंगहरू | 262K/16.7M |
| ब्याकलाइट | WLED |
| इन्टरफेस | LVDS |
| प्यानल ब्रान्ड | Mitsubishi |
| प्यानल मोडेल | AA104SH02 1 Compatible model |
| प्यानल प्रकार | a-Si TFT-LCD , LCM |
| प्यानल आकार | 10.4 inch |
| संकल्प | 800(RGB)×600 , SVGA |
| प्रदर्शन मोड | TN, Normally White, Transmissive |
| सक्रिय क्षेत्र | 211.2×158.4 mm |
| रूपरेखा | 230×180.2×11 mm |
| सतह | Antiglare, Hard coating (3H) |
| चमक | 700 cd/m² (Typ.) |
| विपरीत अनुपात | 700:1 (Typ.) |
| प्रदर्शन रंगहरू | 262K/16.7M (6-bit / 8-bit), CIE193140% |
| प्रतिक्रिया समय | 4/12 (Typ.)(Tr/Td) |
| हेर्ने कोण | 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| आवृत्ति | 60Hz |
| बत्ती प्रकार | 2 stringsWLEDWithout Driver |
| संकेत इन्टरफेस | LVDS (1 ch, 6/8-bit), 20 pins |
| इनपुट भोल्टेज | 3.3V (Typ.) |
| आवेदन | IA |
| AA104SG04 | Mitsubishi | 10.4 | 800×600 |
| AA104SH02--T1 | Mitsubishi | 10.4 | 800×600 |
| AA104SL02-DE1 | Mitsubishi | 10.4 | 800×600 |
| AA104VC01 | Mitsubishi | 10.4 | 640×480 |
| AA104VC02 | Mitsubishi | 10.4 | 640×480 |
| AA104VC04 | Mitsubishi | 10.4 | 640×480 |
| AA104VC06 | Mitsubishi | 10.4 | 640×480 |
| AA104XD02 | Mitsubishi | 10.4 | 1024×768 |
| AA104XD12 | Mitsubishi | 10.4 | 1024×768 |
| AA10SA6C-ADDD | Mitsubishi | 10.4 | 800×600 |
| AA084VC05 | Mitsubishi | 8.4 | 640×480 |
| CLAA102NB01XV | CPT | 10.2 | 1024×600 |
| EL320.256-FD7 HB | Lumineq | 4.8 | 320×256 |
| G065VN01 V1 | AUO | 6.5 | 640×480 |
| LP064V1 | LG Display | 6.4 | 640×480 |
| LQ057V3DG02 | SHARP | 5.7 | 640×480 |
| NL10276BC30-18 | NLT | 15.0 | 1024×768 |
| NL10276BC30-39 | NLT | 15.0 | 1024×768 |
| PD050SX2 | E Ink | 5.0 | 800×600 |
| TM24064BBCWVBYD | Tianma | 5.2 | 240×64 |
