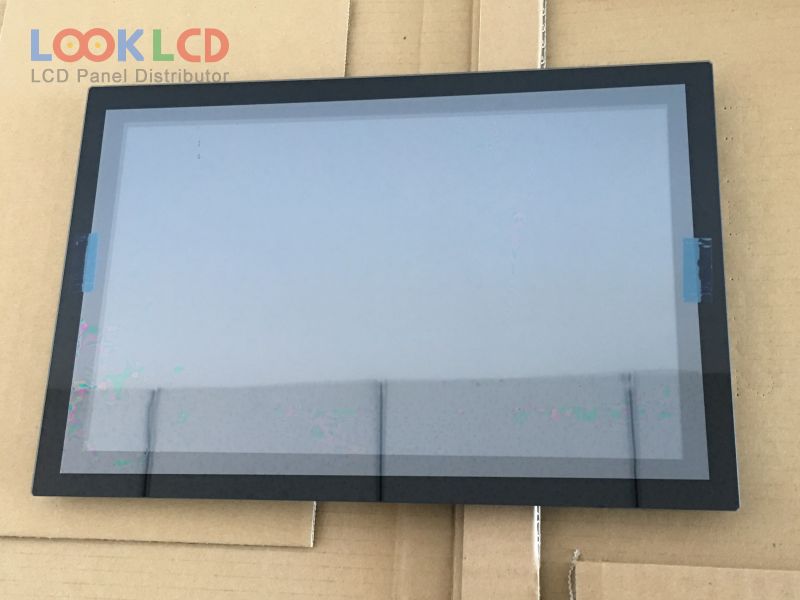

| भाग नम्बर | AA121TH01-DE1 |
| ब्रान्ड | Mitsubishi |
| साइज | 12.1 |
| आवेदन | IA |
| संकल्प | 1280×800 |
| रचना | LCM |
| चमक | 400 |
| CR | 1000:1 |
| रंगहरू | 262K/16.7M |
| ब्याकलाइट | WLED |
| इन्टरफेस | LVDS |
| प्यानल ब्रान्ड | Mitsubishi |
| प्यानल मोडेल | AA121TH01-DE1 |
| प्यानल प्रकार | a-Si TFT-LCD , LCM |
| प्यानल आकार | 12.1 inch |
| संकल्प | 1280(RGB)×800 , WXGA |
| प्रदर्शन मोड | IPS, Normally Black, Transmissive |
| सक्रिय क्षेत्र | 261.12×163.2 mm |
| रूपरेखा | 303×205.1×16.3 mm |
| सतह | Clear, Hard coating (5H) |
| चमक | 400 cd/m² (Typ.) |
| विपरीत अनुपात | 1000:1 (Typ.) |
| प्रदर्शन रंगहरू | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| प्रतिक्रिया समय | 12/12 (Typ.)(Tr/Td) |
| हेर्ने कोण | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| आवृत्ति | 60Hz |
| बत्ती प्रकार | WLEDEmbedded (LED Driver) |
| संकेत इन्टरफेस | LVDS (1 ch, 8-bit), 20 pins |
| इनपुट भोल्टेज | 3.3V (Typ.) |
| आवेदन | IA |
