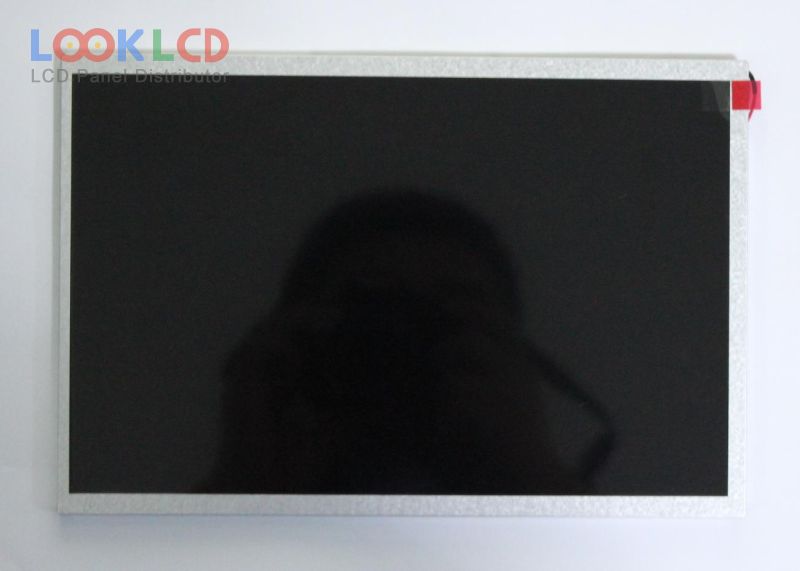

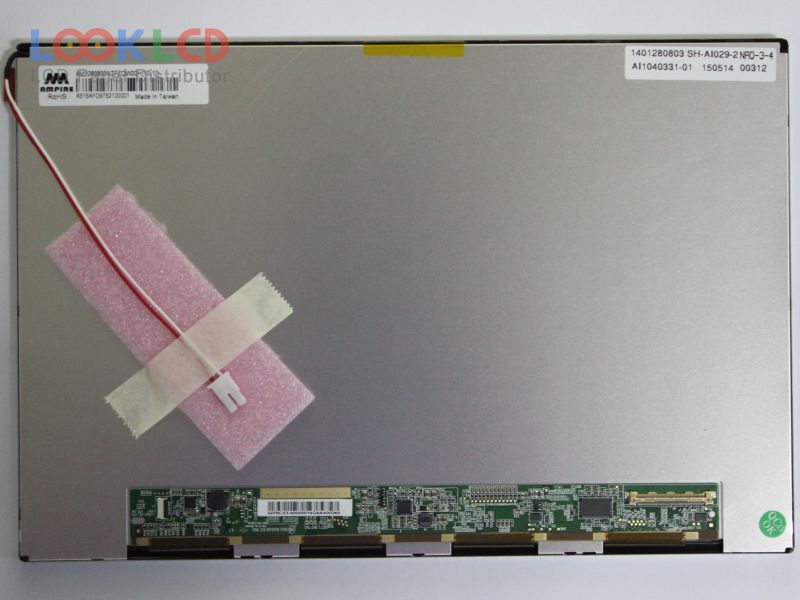

| भाग नम्बर | AM-1280800N2TZQW-00H |
| ब्रान्ड | AMPIRE |
| साइज | 10.1 |
| आवेदन | IA |
| संकल्प | 1280×800 |
| रचना | LCM |
| चमक | 1000 |
| CR | 800:1 |
| रंगहरू | 16.7M |
| ब्याकलाइट | WLED |
| इन्टरफेस | LVDS |
| प्यानल ब्रान्ड | AMPIRE |
| प्यानल मोडेल | AM-1280800N2TZQW-00H |
| प्यानल प्रकार | a-Si TFT-LCD , LCM |
| प्यानल आकार | 10.1 inch |
| संकल्प | 1280(RGB)×800 , WXGA |
| प्रदर्शन मोड | IPS, Normally Black, Transmissive |
| सक्रिय क्षेत्र | 216.96×135.6 mm |
| रूपरेखा | 231×154.4×6.2 mm |
| सतह | Hard coating |
| चमक | 1000 cd/m² (Typ.) |
| विपरीत अनुपात | 800:1 (Typ.) |
| प्रदर्शन रंगहरू | 16.7M (8-bit), CIE193145% |
| प्रतिक्रिया समय | 25 (Typ.)(Tr+Td) |
| हेर्ने कोण | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| आवृत्ति | 60Hz |
| बत्ती प्रकार | 7S6PWLEDWithout Driver |
| संकेत इन्टरफेस | LVDS (1 ch, 8-bit), 40 pins |
| इनपुट भोल्टेज | 3.3V (Typ.) |
| आवेदन | IA |
| AM-1280800N1TZQW-T06H | AMPIRE | 10.1 | 1280×800 |
| AM-1280800N2TZQW-00H | AMPIRE | 10.1 | 1280×800 |
| AM-1280800N2TZQW-T48H | AMPIRE | 10.1 | 1280×800 |
| B101UAN01.7 HW0A | AUO | 10.1 | 1920×1200 |
| B101UAN02.1 | AUO | 10.1 | 1920×1200 |
| CLAA101NB03A | CPT | 10.1 | 1024×600 |
| HJ101NA-02A | Innolux | 10.1 | 1280×800 |
| HSD101PFW4-B01 | HannStar | 10.1 | 1024×600 |
| HSD101PWW1-B00-C11 | HannStar | 10.1 | 1280×800 |
| PJ101IA-01A | Innolux | 10.1 | 1280×800 |
| AA078AA01 | Mitsubishi | 7.8 | 800×300 |
| EL240.128.45 CC | Lumineq | 4.8 | 240×128 |
| KS3224ASTT-FW-X2 | Kyocera | 5.7 | 320×240 |
| LJ64H034 | SHARP | 8.9 | 640×400 |
| LM10V332R | SHARP | 10.4 | 640×480 |
| LQ235D1LW03 | SHARP | 23.6 | 1920×1080 |
| LTM09C015A | TOSHIBA | 9.4 | 640×480 |
| NL6448BC18-03F | NLT | 5.7 | 640×480 |
| RGC11096096FR007 | RiTdisplay | 1.1 | 96×96 |
| UG-9639TSWEG03 | WiseChip | 0.82 | 96×39 |
