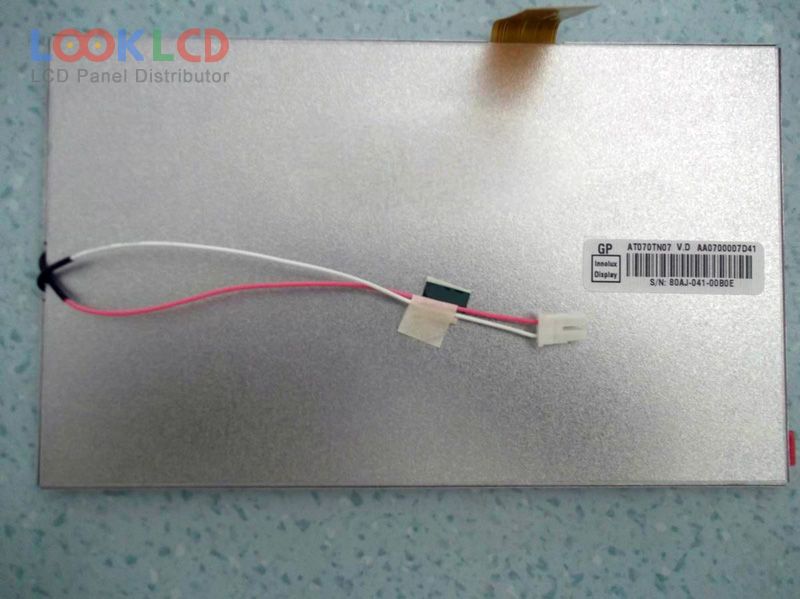

| भाग नम्बर | AT070TN07 V.D |
| ब्रान्ड | Innolux |
| साइज | 7.0 |
| आवेदन | VDP |
| संकल्प | 480×234 |
| रचना | LCM |
| चमक | 200 |
| CR | 300:1 |
| रंगहरू | Full color |
| ब्याकलाइट | WLED |
| इन्टरफेस | Analog |
| प्यानल ब्रान्ड | INNOLUX |
| प्यानल मोडेल | AT070TN07 V.D |
| प्यानल प्रकार | a-Si TFT-LCD , LCM |
| प्यानल आकार | 7.0 inch |
| संकल्प | 480(RGB)×234 |
| प्रदर्शन मोड | TN, Normally White, Transmissive |
| सक्रिय क्षेत्र | 154.08×86.58 mm |
| रूपरेखा | 164.9×100 mm |
| सतह | Antiglare |
| चमक | 200 cd/m² (Typ.) |
| विपरीत अनुपात | 300:1 (Typ.) |
| प्रदर्शन रंगहरू | Full color |
| प्रतिक्रिया समय | 15/20 (Typ.)(Tr/Td) |
| हेर्ने कोण | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| बत्ती प्रकार | 3S4PWLEDWithout Driver |
| संकेत इन्टरफेस | TFT Specific Analog RGB, 26 pins |
| इनपुट भोल्टेज | (3.3/5.0)/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| rohs: | |
| आवेदन | VDP |
| AT070TN07 V.A | Innolux | 7.0 | 480×234 |
| AT070TN82 | Innolux | 7.0 | 800×480 |
| AT070TN83 | Innolux | 7.0 | 800×480 |
| AT070TN84 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN92 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.1 TP | Innolux | 7.0 | 800×480 |
| AT070TN92 V.4 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.X | Innolux | 7.0 | 800×480 |
| AT070TNA2 | Innolux | 7.0 | 1024×600 |
| A070FW03 VD | AUO | 7.0 | 480×234 |
| DLC0500AIG-2 | Other | 5.0 | 640×480 |
| HSD070I651-C02 | HannStar | 7.0 | 480×234 |
| HSD070I651-F20 | HannStar | 7.0 | 480×234 |
| LQ050A3AD01 | SHARP | 5.0 | 320×234 |
| LR700BA9005 | Innolux | 7.0 | 480×234 |
| LTA065B096D | TOSHIBA | 6.5 | 400×234 |
| PW062XS6 | E Ink | 6.2 | 480×234 |
| PW070DS1T6 | E Ink | 7.0 | 480×234 |
| TM056KDH02 | Tianma | 5.6 | 320×234 |
