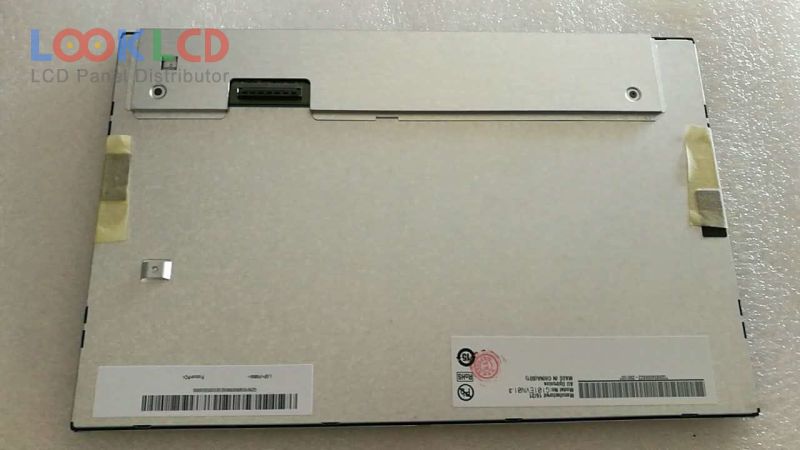

| भाग नम्बर | G101EVN01.3 |
| ब्रान्ड | AUO |
| साइज | 10.1 |
| आवेदन | IA |
| संकल्प | 1280×800 |
| रचना | LCM |
| चमक | 500 |
| CR | 1300:1 |
| रंगहरू | 262K/16.7M |
| ब्याकलाइट | WLED |
| इन्टरफेस | LVDS |
| प्यानल ब्रान्ड | AUO |
| प्यानल मोडेल | G101EVN01.3 |
| प्यानल प्रकार | a-Si TFT-LCD , LCM |
| प्यानल आकार | 10.1 inch |
| संकल्प | 1280(RGB)×800 , WXGA |
| प्रदर्शन मोड | MVA, Normally Black, Transmissive |
| सक्रिय क्षेत्र | 216.96×135.6 mm |
| रूपरेखा | 227.91×148×8.34 mm |
| सतह | Hard coating, Reflection 1.5% (Typ.) |
| चमक | 500 cd/m² (Typ.) |
| विपरीत अनुपात | 1300:1 (Typ.) |
| प्रदर्शन रंगहरू | 262K/16.7M (6-bit / 6-bit + FRC), CIE193145% |
| प्रतिक्रिया समय | 25 (Typ.)(Tr+Td) |
| हेर्ने कोण | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| आवृत्ति | 60Hz |
| बत्ती प्रकार | WLEDEmbedded (LED Driver) |

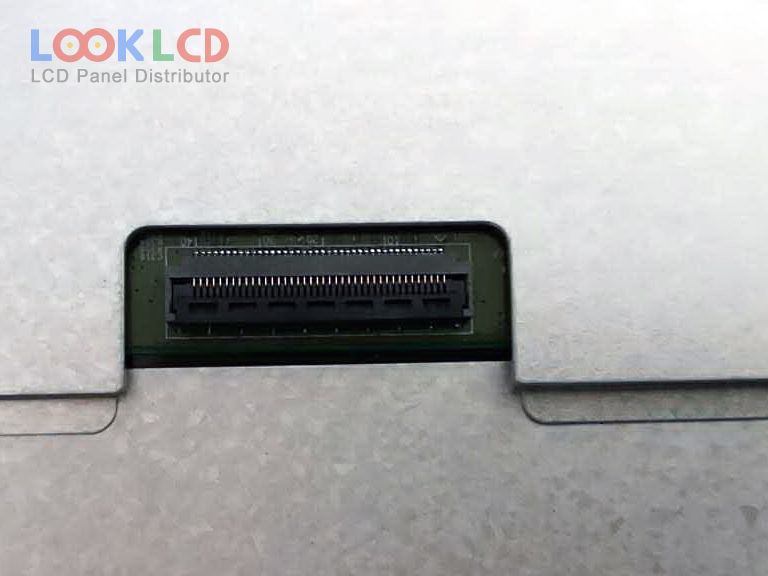

| संकेत इन्टरफेस | LVDS (1 ch, 6/8-bit), 40 pins |
| इनपुट भोल्टेज | 3.3V (Typ.) |
| आवेदन | IA |
