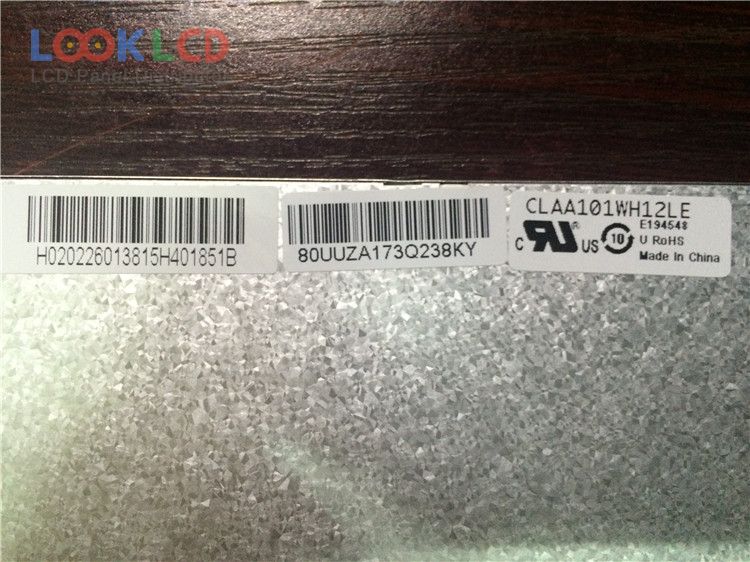

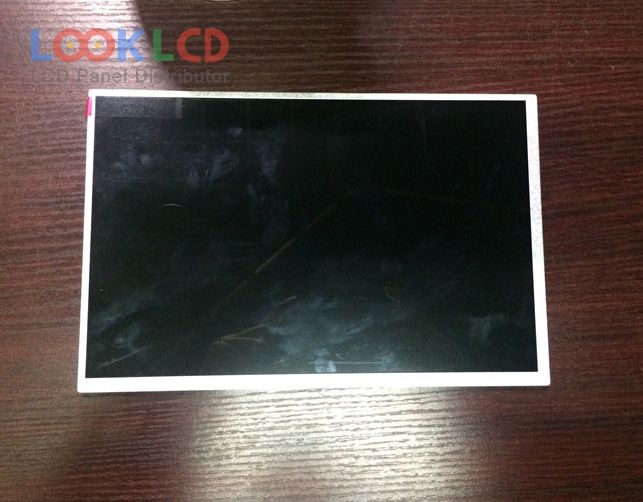

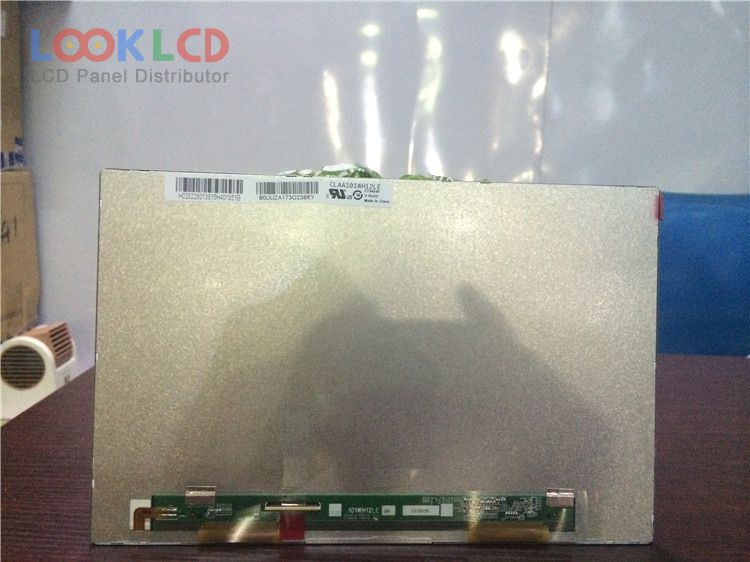

| भाग नम्बर | CLAA101WH12 LE |
| ब्रान्ड | CPT |
| साइज | 10.1 |
| आवेदन | PAD |
| संकल्प | 1280×800 |
| रचना | LCM |
| चमक | 350 |
| CR | 600:1 |
| रंगहरू | 262K/16.7M |
| ब्याकलाइट | WLED |
| इन्टरफेस | LVDS |
| प्यानल ब्रान्ड | CPT |
| प्यानल मोडेल | CLAA101WH12 LE |
| प्यानल प्रकार | a-Si TFT-LCD , LCM |
| प्यानल आकार | 10.1 inch |
| संकल्प | 1280(RGB)×800 , WXGA |
| प्रदर्शन मोड | TN, Normally White, Transmissive |
| सक्रिय क्षेत्र | 216.96×135.6 mm |
| रूपरेखा | 222.46×149.1×4.96 mm |
| सतह | Hard coating (3H) |
| चमक | 350 cd/m² (Typ.) |
| विपरीत अनुपात | 600:1 (Typ.) |
| प्रदर्शन रंगहरू | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| प्रतिक्रिया समय | 30 (Typ.)(Tr+Td) |
| हेर्ने कोण | 80/80/60/80 (Typ.)(CR≥10)(L/R/U/D) |
| आवृत्ति | 60Hz |
| बत्ती प्रकार | 3S12PWLEDWithout Driver |
| संकेत इन्टरफेस | LVDS (1 ch, 8-bit), 40 pins |
| इनपुट भोल्टेज | 3.3/11/21.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| आवेदन | PAD |
