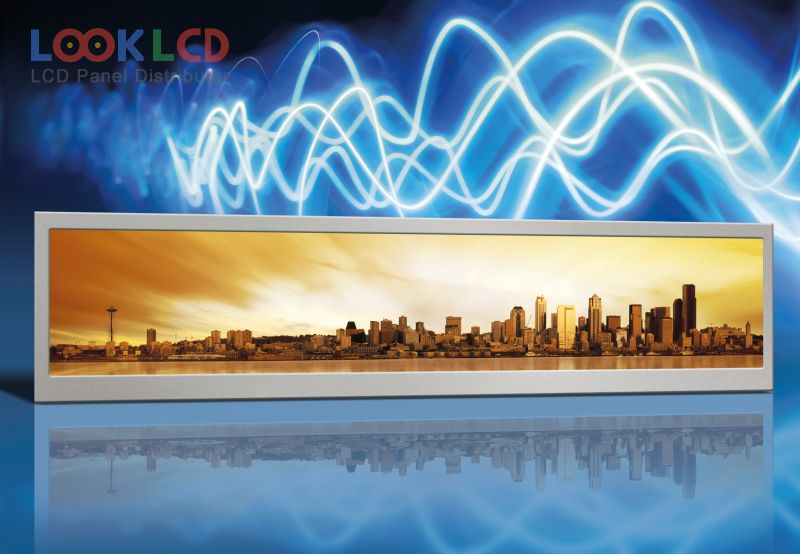

| भाग नम्बर | G190SVT01.0 |
| ब्रान्ड | AUO |
| साइज | 19.0 |
| आवेदन | IA |
| संकल्प | 1680×342 |
| रचना | LCM |
| चमक | 260 |
| CR | 2000:1 |
| रंगहरू | 16.7M |
| ब्याकलाइट | WLED |
| इन्टरफेस | LVDS |
| प्यानल ब्रान्ड | AUO |
| प्यानल मोडेल | G190SVT01.0 |
| प्यानल प्रकार | a-Si TFT-LCD , LCM |
| प्यानल आकार | 19.0 inch(1/3 cut of 22.0") |
| संकल्प | 1680(RGB)×342 |
| प्रदर्शन मोड | MVA, Normally Black, Transmissive |
| सक्रिय क्षेत्र | 473.76×96.44 mm |
| रूपरेखा | 497.7×126.8×21.66 mm |
| सतह | Antiglare, Hard coating (7H) |
| चमक | 260 cd/m² (Typ.) |
| विपरीत अनुपात | 2000:1 (Typ.) |
| प्रदर्शन रंगहरू | 16.7M (6-bit + Hi-FRC), CIE193168% |
| प्रतिक्रिया समय | 8 (Typ.)(G to G); 20 (Typ.)(Tr+Td) |
| हेर्ने कोण | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| आवृत्ति | 60Hz |
| बत्ती प्रकार | 8S5PWLEDEmbedded (LED Driver) |
| संकेत इन्टरफेस | LVDS (2 ch, 8-bit), 30 pins |
| इनपुट भोल्टेज | 5.0V (Typ.) |
| आवेदन | IA |
