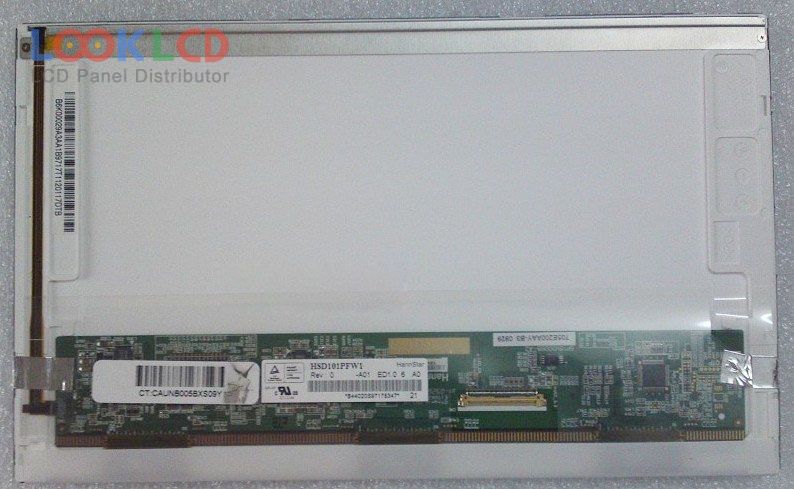

| भाग नम्बर | HSD101PFW1-A01 |
| ब्रान्ड | HannStar |
| साइज | 10.1 |
| आवेदन | DPF |
| संकल्प | 1024×576 |
| रचना | LCM |
| चमक | 200 |
| CR | 500:1 |
| रंगहरू | 262K |
| ब्याकलाइट | WLED |
| इन्टरफेस | LVDS |
| प्यानल ब्रान्ड | HannStar |
| प्यानल मोडेल | HSD101PFW1-A01 5 Compatible model |
| प्यानल प्रकार | a-Si TFT-LCD , LCM |
| प्यानल आकार | 10.1 inch |
| संकल्प | 1024(RGB)×576 , WSVGA |
| प्रदर्शन मोड | TN, Normally White, Transmissive |
| सक्रिय क्षेत्र | 222.72×125.28 mm |
| रूपरेखा | 235×143×5.2 mm |
| सतह | Antiglare, Hard coating (3H) |
| चमक | 200 cd/m² (Typ.) |
| विपरीत अनुपात | 500:1 (Typ.) |
| प्रदर्शन रंगहरू | 262K (6-bit), CIE193150% |
| प्रतिक्रिया समय | 2/6 (Typ.)(Tr/Td) |
| हेर्ने कोण | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| आवृत्ति | 60Hz |
| बत्ती प्रकार | 27 pcsWLEDEmbedded (LED Driver) |
| संकेत इन्टरफेस | LVDS (1 ch, 6-bit), 40 pins |
| इनपुट भोल्टेज | 3.3V (Typ.) |
| आवेदन | DPF |
