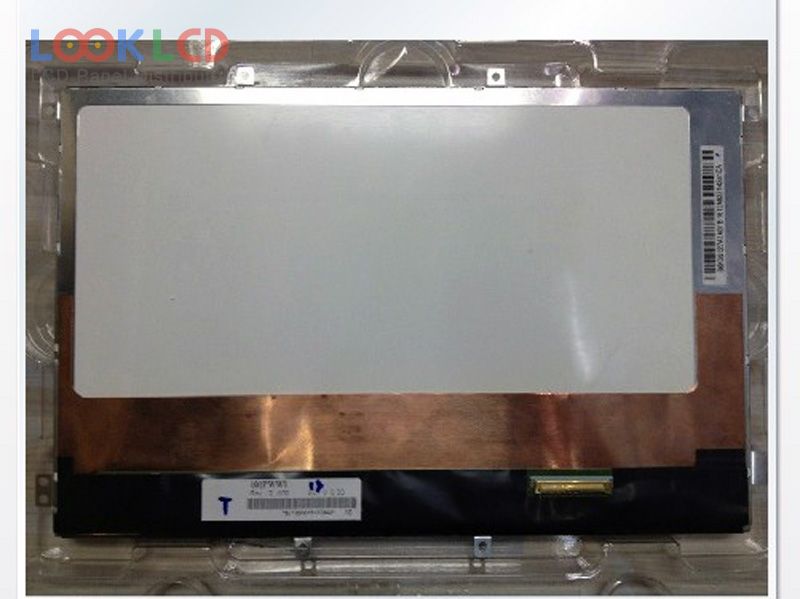

| भाग नम्बर | HSD101PWW1-A00 |
| ब्रान्ड | HannStar |
| साइज | 10.1 |
| आवेदन | PAD |
| संकल्प | 1280×800 |
| रचना | LCM |
| चमक | 350 |
| CR | 800:1 |
| रंगहरू | 262K |
| ब्याकलाइट | WLED |
| इन्टरफेस | LVDS |
| प्यानल ब्रान्ड | HannStar |
| प्यानल मोडेल | HSD101PWW1-A00 |
| प्यानल प्रकार | a-Si TFT-LCD , LCM |
| प्यानल आकार | 10.1 inch |
| संकल्प | 1280(RGB)×800 , WXGA |
| प्रदर्शन मोड | HS-IPS, Normally Black, Transmissive |
| सक्रिय क्षेत्र | 216.96×135.6 mm |
| सतह | Glare (Haze 0%), Hard coating (3H), Reflection 1.5% (Max.) |
| चमक | 350 cd/m² (Typ.) |
| विपरीत अनुपात | 800:1 (Typ.) |
| प्रदर्शन रंगहरू | 262K (6-bit), CIE193145% |
| प्रतिक्रिया समय | 25 (Typ.)(Tr+Td) |
| हेर्ने कोण | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| आवृत्ति | 60Hz |
| बत्ती प्रकार | WLEDEmbedded (LED Driver) |
| संकेत इन्टरफेस | LVDS (1 ch, 6-bit), 40 pins |
| इनपुट भोल्टेज | 3.3V (Typ.) |
| आवेदन | PAD |
