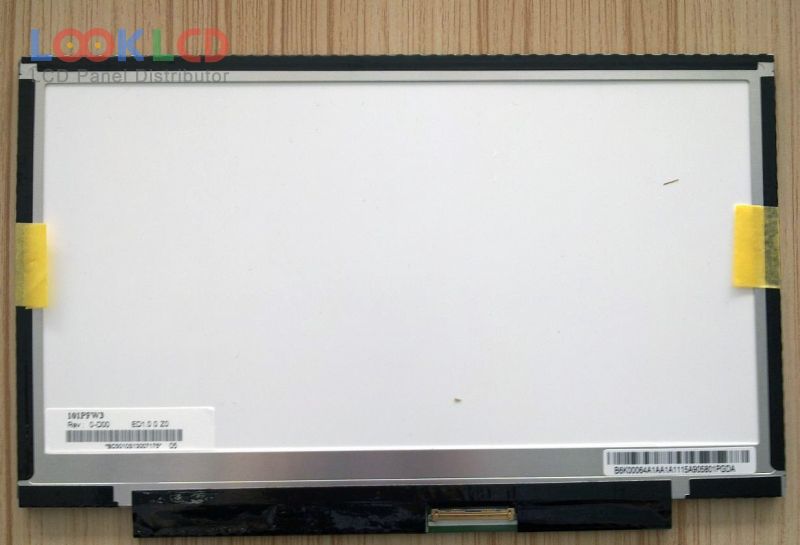

| भाग नम्बर | HSD101PFW3-A00 |
| ब्रान्ड | HannStar |
| साइज | 10.1 |
| आवेदन | NOPC |
| संकल्प | 1024×600 |
| रचना | LCM |
| चमक | 180 |
| CR | 500:1 |
| रंगहरू | 262K |
| ब्याकलाइट | WLED |
| इन्टरफेस | LVDS |
| प्यानल ब्रान्ड | HannStar |
| प्यानल मोडेल | HSD101PFW3-A00 |
| प्यानल प्रकार | a-Si TFT-LCD , LCM |
| प्यानल आकार | 10.1 inch |
| संकल्प | 1024(RGB)×600 , WSVGA |
| प्रदर्शन मोड | TN, Normally White, Transmissive |
| सक्रिय क्षेत्र | 222.72×125.28 mm |
| रूपरेखा | 243×146.5×3.6 mm |
| सतह | Glare (Haze 0%), Hard coating (3H) |
| चमक | 180 cd/m² (Typ.) |
| विपरीत अनुपात | 500:1 (Typ.) |
| प्रदर्शन रंगहरू | 262K (6-bit), CIE193150% |
| प्रतिक्रिया समय | 4/12 (Typ.)(Tr/Td) |
| हेर्ने कोण | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| आवृत्ति | 60Hz |
| बत्ती प्रकार | WLEDEmbedded (LED Driver) |
| संकेत इन्टरफेस | LVDS (1 ch, 6-bit), 40 pins |
| इनपुट भोल्टेज | 3.3V (Typ.) |
| आवेदन | NOPC |
| HSD101PFW1-B00 | HannStar | 10.1 | 1024×576 |
| HSD101PFW2-A00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW2-B00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW3-A00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW4-B01 | HannStar | 10.1 | 1024×600 |
| HSD101PWW1-A00 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-F01 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-G10 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-H00 | HannStar | 10.1 | 1280×800 |
| HSD101PWW2-A00 | HannStar | 10.1 | 1280×800 |
| B116AW02 V0 | AUO | 11.6 | 1024×600 |
| B116XW05 V0 | AUO | 11.6 | 1366×768 |
| CLAA101NA0ACN | CPT | 10.1 | 1024×576 |
| CLAA101NB03A | CPT | 10.1 | 1024×600 |
| LTN101NT02-W05 | Samsung | 10.1 | 1024×600 |
| LTN101NT06-W01 | Samsung | 10.1 | 1024×600 |
| M101NWT2 R3 | IVO | 10.1 | 1024×600 |
| N101LGE-L11 | Innolux | 10.1 | 1024×600 |
| N116BGE-EA2 | Innolux | 11.6 | 1366×768 |
| N116BGE-LB1 | Innolux | 11.6 | 1366×768 |
