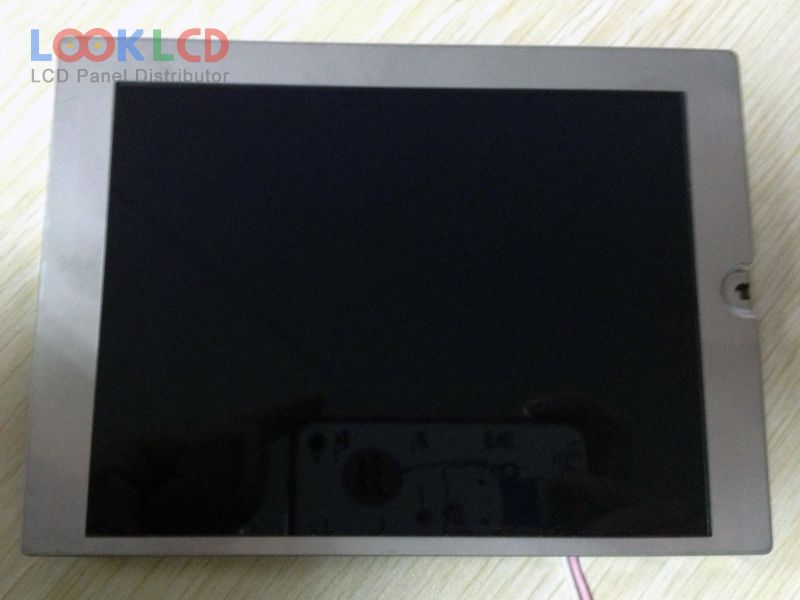

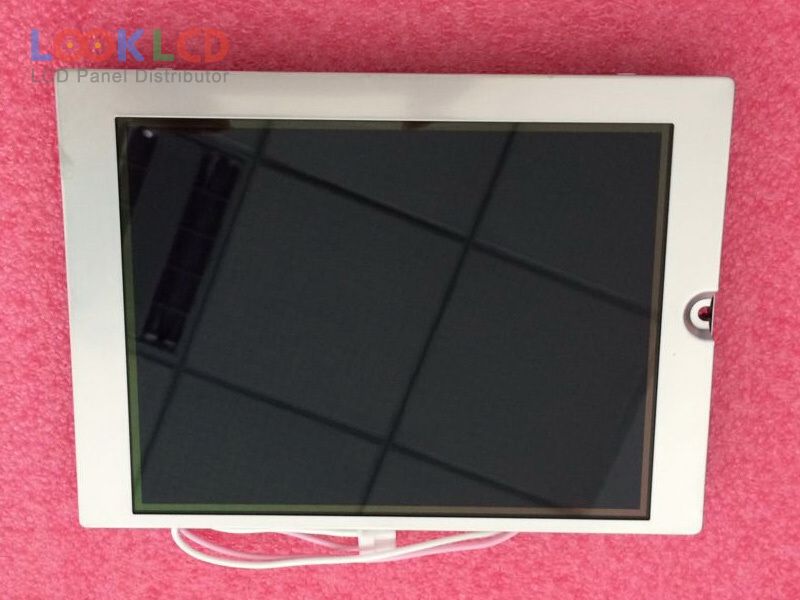

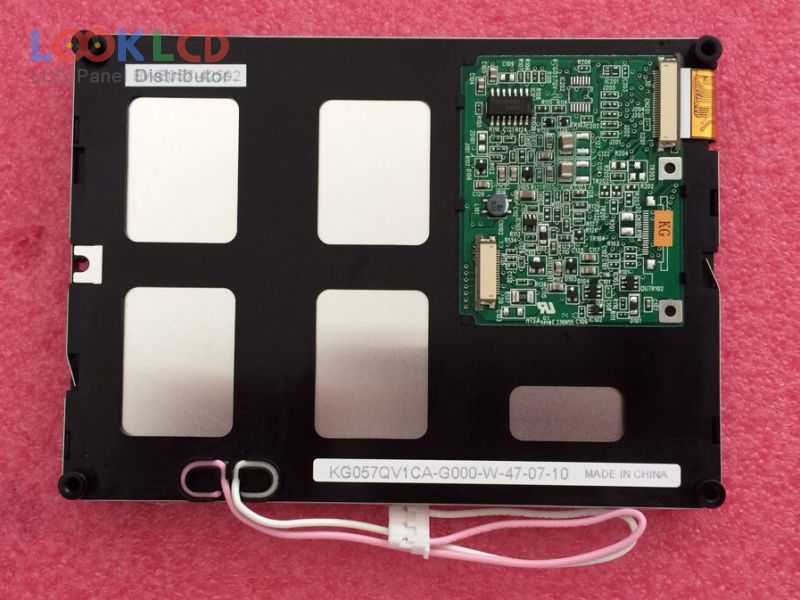

| भाग नम्बर | KG057QV1CA-G000 |
| ब्रान्ड | Kyocera |
| साइज | 5.7 |
| आवेदन | IA |
| संकल्प | 320×240 |
| रचना | LCM |
| चमक | 220 |
| CR | 10:1 |
| रंगहरू | Monochrome |
| ब्याकलाइट | CCFL |
| इन्टरफेस | Parallel Data |
| प्यानल ब्रान्ड | Kyocera |
| प्यानल मोडेल | KG057QV1CA-G000 |
| प्यानल प्रकार | FSTN-LCD , LCM |
| प्यानल आकार | 5.7 inch |
| संकल्प | 320×240 , QVGA |
| प्रदर्शन मोड | STN, Black/White (Negative), Transmissive |
| सक्रिय क्षेत्र | 115.18×86.38 mm |
| रूपरेखा | 144×104.8×13.2 mm |
| सतह | Glare (Haze 0%) |
| चमक | 220 cd/m² (Typ.) |
| विपरीत अनुपात | 10:1 (Typ.) |
| प्रदर्शन रंगहरू | Monochrome |
| प्रतिक्रिया समय | 500 (Typ.)(Tr+Td) |
| हेर्ने कोण | 45/45/20/40 (Min.)(CR≥2)(L/R/U/D) |
| बत्ती प्रकार | 1 pcsCCFLWithout Driver |
| इनपुट भोल्टेज | 3.3/5.0V (Typ.)(VDD) |
| आवेदन | IA |
