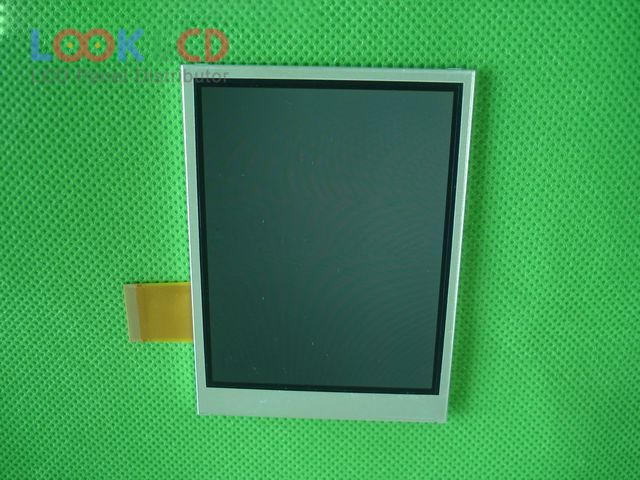

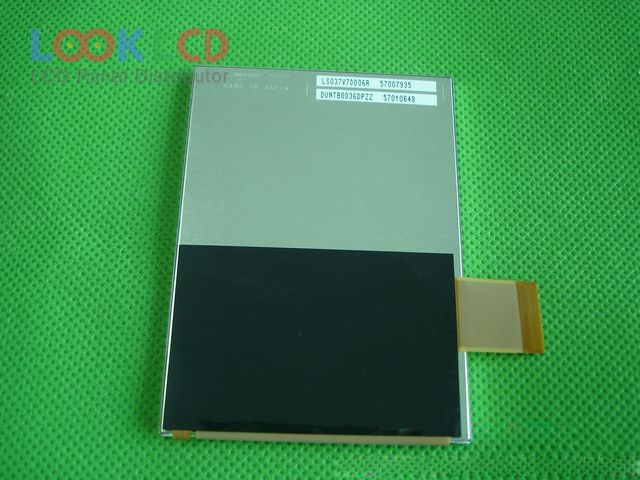

| भाग नम्बर | LS037V7DD06R |
| ब्रान्ड | SHARP |
| साइज | 3.7 |
| आवेदन | MPH |
| संकल्प | 480×640 |
| रचना | LCM |
| चमक | 100 |
| CR | 100:1 |
| रंगहरू | 262K |
| ब्याकलाइट | WLED |
| इन्टरफेस | TTL |
| प्यानल ब्रान्ड | SHARP |
| प्यानल मोडेल | LS037V7DD06R |
| प्यानल प्रकार | CG-Silicon , LCM |
| प्यानल आकार | 3.7 inch |
| संकल्प | 480(RGB)×640 , VGA |
| प्रदर्शन मोड | TN, Normally White, Transflective |
| सक्रिय क्षेत्र | 56.16×74.88 mm |
| रूपरेखा | 65×90 mm |
| सतह | |
| चमक | 100 cd/m² (Typ.) |
| विपरीत अनुपात | 100:1 (Typ.)(Transmissive)5:1 (Typ.)(Reflective) |
| प्रदर्शन रंगहरू | 262K (6-bit) |
| प्रतिक्रिया समय | 30/50 (Typ.)(Tr/Td) |
| हेर्ने कोण | 40/40/40/40 (Typ.)(CR≥10)(L/R/U/D) |
| आवृत्ति | 60Hz |
| बत्ती प्रकार | WLEDWithout Driver |
| संकेत इन्टरफेस | Parallel RGB (1 ch, 6-bit), 51 pins |
| इनपुट भोल्टेज | 5.0/3.3/8.0/-4.0/-8.0V (Typ.)(VSHA/VSHD/VDD/VSSD/GVSS) |
| आवेदन | MPH |
| LS037V3DX01 | SHARP | 3.7 | 640×480 |
| LS037V3DX02 | SHARP | 3.7 | |
| LS037V7DD05 | SHARP | 3.7 | 480×640 |
| LS037V7DD06 | SHARP | 3.7 | 480×640 |
| LS037V7DD06R | SHARP | 3.7 | 480×640 |
| LS037V7DW02 | SHARP | 3.7 | 480×640 |
| LS037V7DW03 | SHARP | 3.7 | 480×640 |
| LS037V7DW03A | SHARP | 3.7 | 480×640 |
| LS037V7DW03B | SHARP | 3.7 | 480×640 |
| LS037V7DW06 | SHARP | 3.7 | 480×640 |
| AMS427GL34-1 | Samsung | 4.3 | 480×800 |
| DLC0350TZG | Other | 3.5 | 240×320 |
| ET028002DMU | EDT | 2.8 | 240×320 |
| LH500X01-SD01 | LG Display | 5.0 | 768×1024 |
| LS026B8PX04 | SHARP | 2.6 | 240×400 |
| LT032MDQ7000 | JDI | 3.2 | 360×480 |
| LT043MDY5000 | TOSHIBA | 4.3 | 720×1280 |
| OEL9M0039-R-E | Other | 1.5 | 128×128 |
| TM020GDZ25 | Tianma | 2.0 | 176×220 |
| TM024HBZ26 | Tianma | 2.4 | 240×320 |
