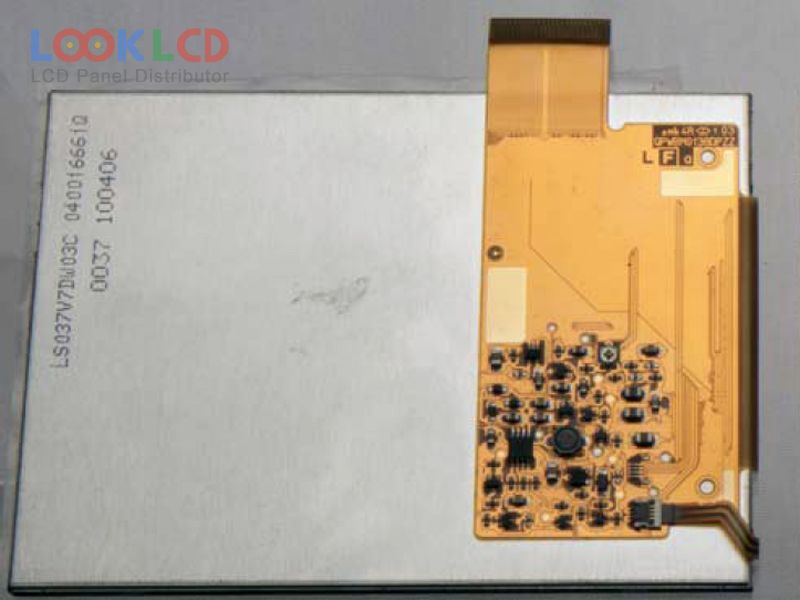

| भाग नम्बर | LS037V7DW03 |
| ब्रान्ड | SHARP |
| साइज | 3.7 |
| आवेदन | HHP |
| संकल्प | 480×640 |
| रचना | LCM |
| चमक | 200 |
| CR | 200:1 |
| रंगहरू | 262K |
| ब्याकलाइट | WLED |
| इन्टरफेस | TTL |
| प्यानल ब्रान्ड | SHARP |
| प्यानल मोडेल | LS037V7DW03 2 Compatible model |
| प्यानल प्रकार | CG-Silicon , LCM |
| प्यानल आकार | 3.7 inch |
| संकल्प | 480(RGB)×640 , VGA |
| प्रदर्शन मोड | ASV, Normally Black, Transflective |
| सक्रिय क्षेत्र | 56.16×74.88 mm |
| रूपरेखा | 65×89.2 mm |
| सतह | |
| चमक | 200 cd/m² (Typ.) |
| विपरीत अनुपात | 200:1 (Typ.)(Transmissive)2:1 (Typ.)(Reflective) |
| प्रदर्शन रंगहरू | 262K (6-bit), CIE193135% |
| प्रतिक्रिया समय | 15/20 (Typ.)(Tr/Td) |
| हेर्ने कोण | 80/80/80/80 (Typ.)(CR≥5)(L/R/U/D) |
| बत्ती प्रकार | 7S1PWLEDWithout Driver |
| संकेत इन्टरफेस | Parallel RGB (1 ch, 6-bit), 51 pins |
| इनपुट भोल्टेज | 3.3V (Typ.)(VSHD) |
| आवेदन | HHP |
| LS037V3DX02 | SHARP | 3.7 | |
| LS037V7DD05 | SHARP | 3.7 | 480×640 |
| LS037V7DD06 | SHARP | 3.7 | 480×640 |
| LS037V7DD06R | SHARP | 3.7 | 480×640 |
| LS037V7DW01 | SHARP | 3.7 | 480×640 |
| LS037V7DW02 | SHARP | 3.7 | 480×640 |
| LS037V7DW03 | SHARP | 3.7 | 480×640 |
| LS037V7DW03A | SHARP | 3.7 | 480×640 |
| LS037V7DW03B | SHARP | 3.7 | 480×640 |
| LS037V7DW06 | SHARP | 3.7 | 480×640 |
| 28QVF1H | SII | 2.8 | 240×320 |
| A043FW03 V2 | AUO | 4.3 | 480×272 |
| AM-240320-024DT | Other | 2.4 | 240×320 |
| COM35H3P09UTC | ORTUSTECH | 3.5 | 480×640 |
| DLC0200EUG | Other | 2.0 | 240×320 |
| DLC0430NZG-T-1 | Other | 4.3 | 480×272 |
| LM038QC1R10 | SHARP | 3.8 | 320×240 |
| LS037V7DW01 | SHARP | 3.7 | 480×640 |
| LS037V7DW03 | SHARP | 3.7 | 480×640 |
| S035V01 | CDTECH | 3.5 | 480×640 |
