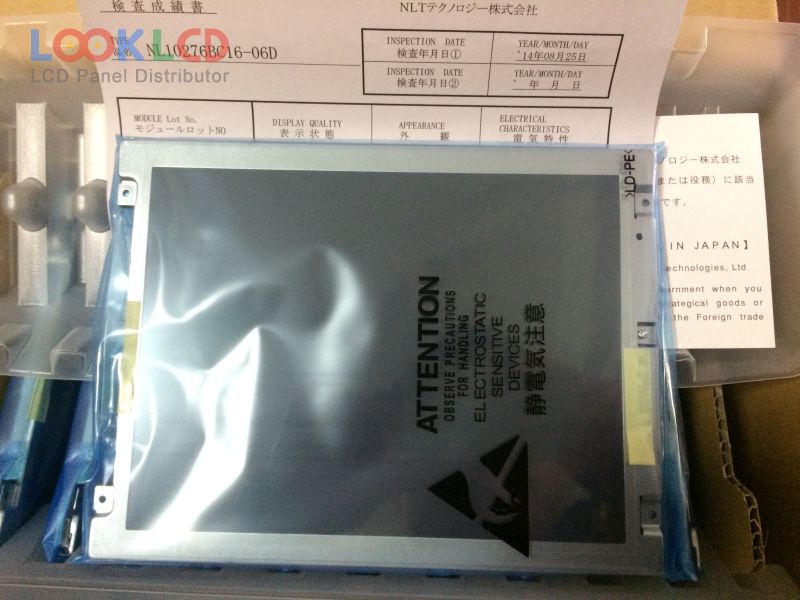

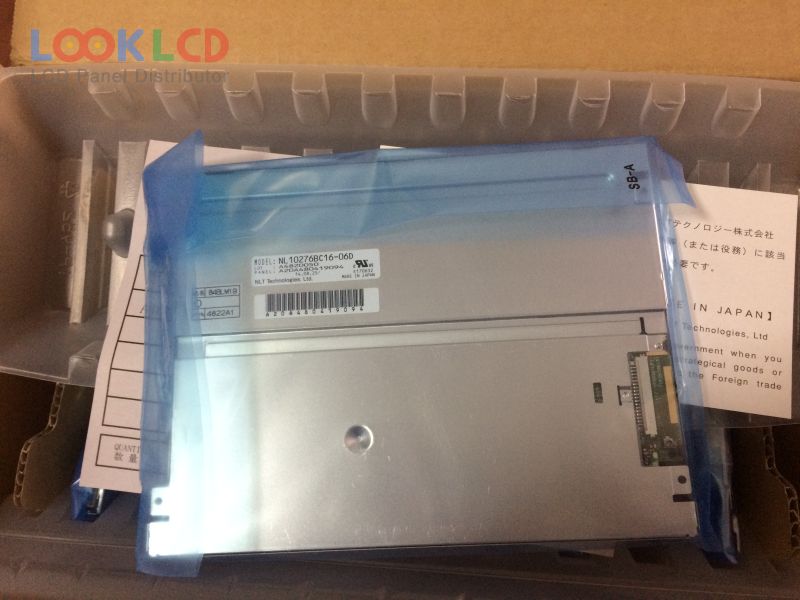

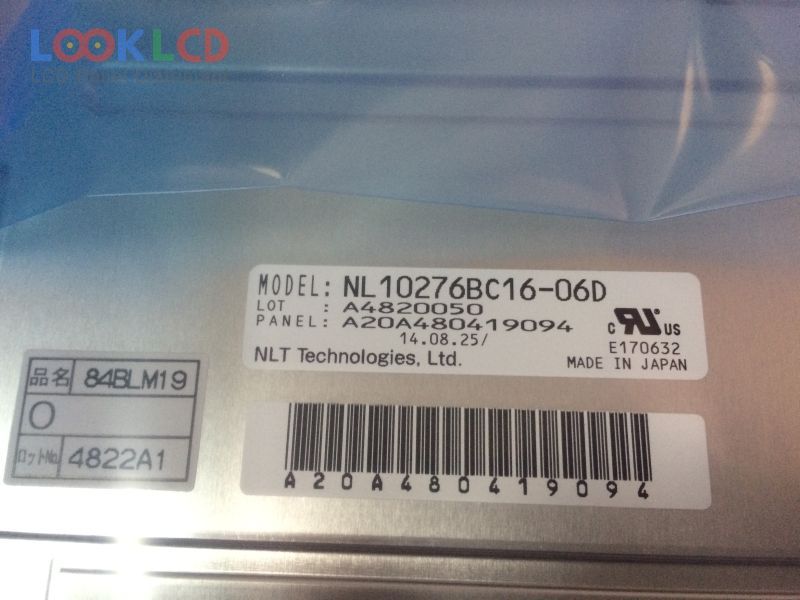

| भाग नम्बर | NL10276BC16-06D |
| ब्रान्ड | NLT |
| साइज | 8.4 |
| आवेदन | IA |
| संकल्प | 1024×768 |
| रचना | LCM |
| चमक | 600 |
| CR | 1000:1 |
| रंगहरू | 262K/16.7M |
| ब्याकलाइट | WLED |
| इन्टरफेस | LVDS |
| प्यानल ब्रान्ड | NEC |
| प्यानल मोडेल | NL10276BC16-06D |
| प्यानल प्रकार | a-Si TFT-LCD , LCM |
| प्यानल आकार | 8.4 inch |
| संकल्प | 1024(RGB)×768 , XGA |
| प्रदर्शन मोड | UA-SFT, Normally Black, Transmissive |
| सक्रिय क्षेत्र | 170.496×127.872 mm |
| रूपरेखा | 200×152×8.7 mm |
| सतह | Antiglare, Hard coating (3H) |
| चमक | 600 cd/m² (Typ.) |
| विपरीत अनुपात | 1000:1 (Typ.) |
| प्रदर्शन रंगहरू | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193172% |
| प्रतिक्रिया समय | 13/12 (Typ.)(Tr/Td) |
| हेर्ने कोण | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| आवृत्ति | 60Hz |
| बत्ती प्रकार | 4 stringsWLEDWithout Driver |
| संकेत इन्टरफेस | LVDS (1 ch, 6/8-bit), 20 pins |
| इनपुट भोल्टेज | 3.3V (Typ.) |
| आवेदन | IA |
