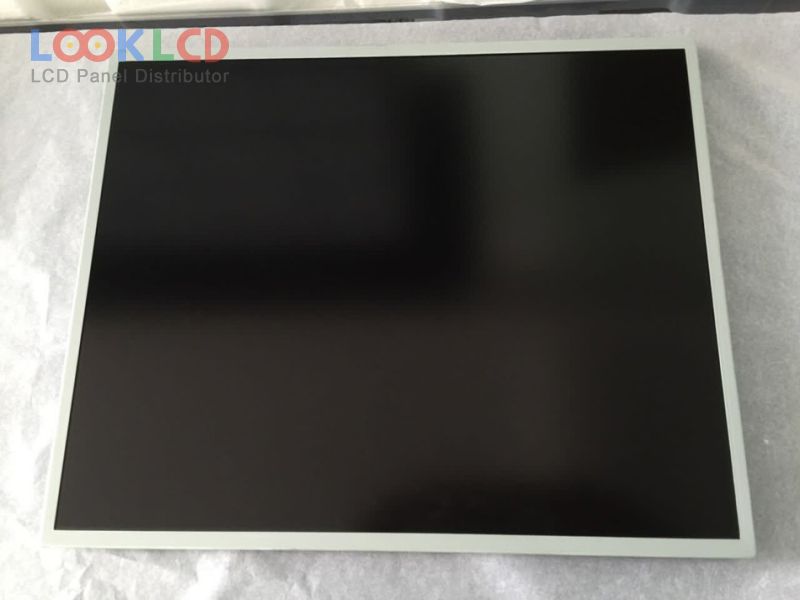

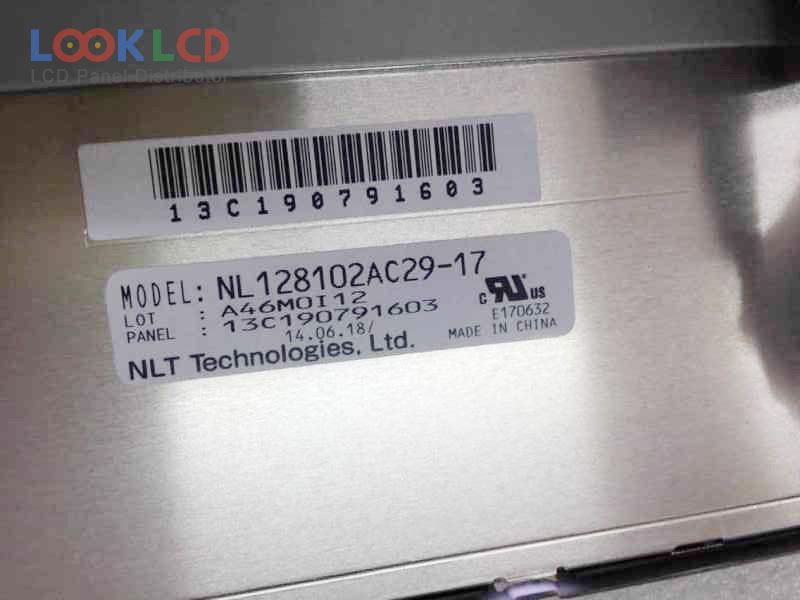

| भाग नम्बर | NL128102AC29-17 |
| ब्रान्ड | NLT |
| साइज | 19.0 |
| आवेदन | IA |
| संकल्प | 1280×1024 |
| रचना | LCM |
| चमक | 800 |
| CR | 1000:1 |
| रंगहरू | 16.7M |
| ब्याकलाइट | WLED |
| इन्टरफेस | LVDS |
| प्यानल ब्रान्ड | NLT |
| प्यानल मोडेल | NL128102AC29-17 |
| प्यानल प्रकार | a-Si TFT-LCD , LCM |
| प्यानल आकार | 19.0 inch |
| संकल्प | 1280(RGB)×1024 , SXGA |
| प्रदर्शन मोड | UA-SFT, Normally Black, Transmissive |
| सक्रिय क्षेत्र | 376.32×301.056 mm |
| रूपरेखा | 396×324×18.5 mm |
| सतह | Antiglare, Hard coating (2H) |
| चमक | 800 cd/m² (Typ.) |
| विपरीत अनुपात | 1000:1 (Typ.) |
| प्रदर्शन रंगहरू | 16.7M (8-bit), CIE193172% |
| प्रतिक्रिया समय | 14/11 (Typ.)(Tr+Td) |
| हेर्ने कोण | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| आवृत्ति | 60Hz |
| बत्ती प्रकार | WLEDEmbedded (LED Driver) |
| संकेत इन्टरफेस | LVDS (2 ch, 8-bit), 30 pins |
| इनपुट भोल्टेज | 5.0V (Typ.) |
| आवेदन | IA |
