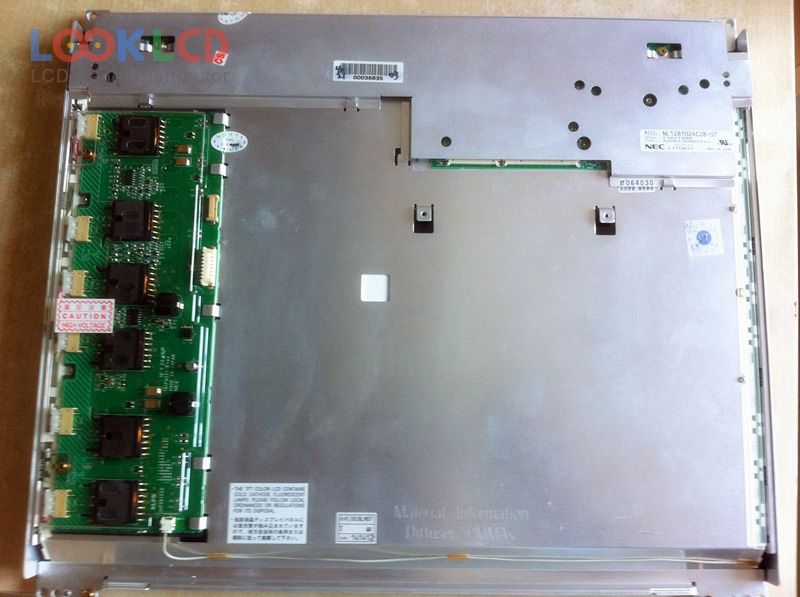

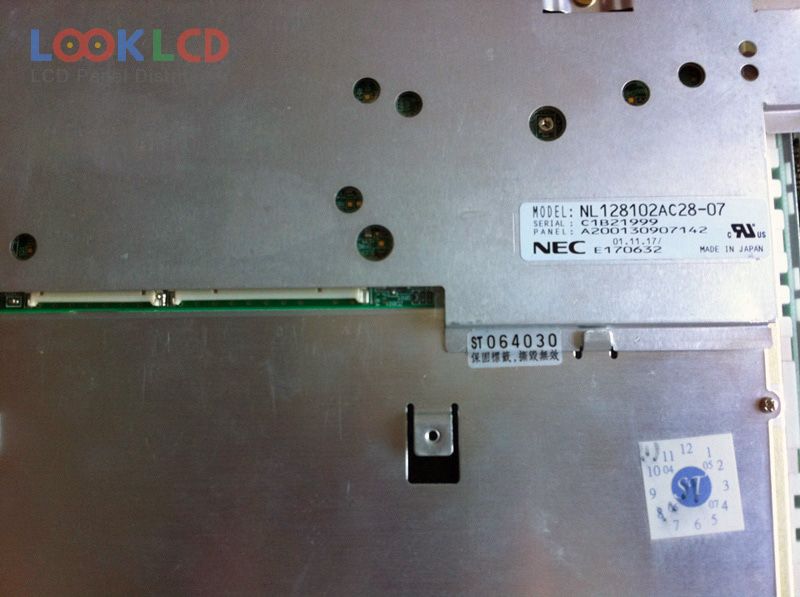

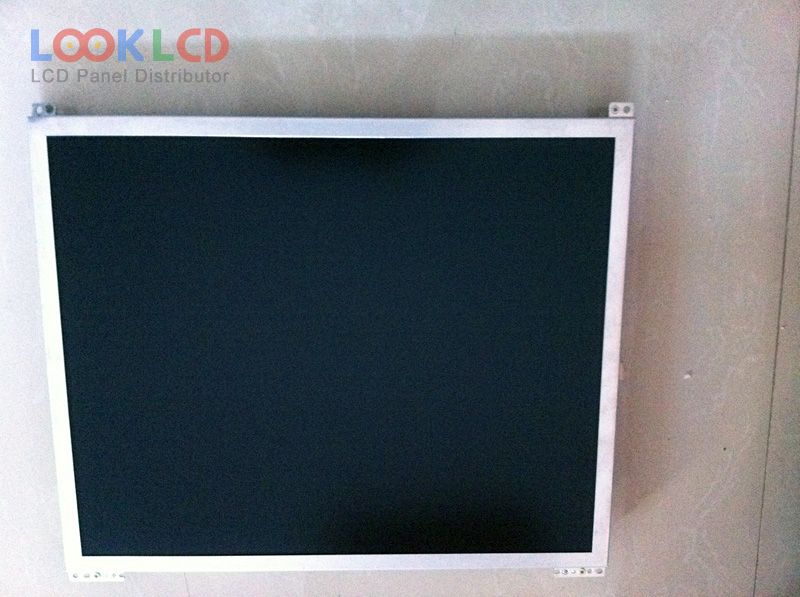

| भाग नम्बर | NL128102AC28-07 |
| ब्रान्ड | NLT |
| साइज | 18.1 |
| आवेदन | IA |
| संकल्प | 1280×1024 |
| रचना | LCM |
| चमक | 240 |
| CR | 300:1 |
| रंगहरू | 16.7M |
| ब्याकलाइट | CCFL |
| इन्टरफेस | LVDS |
| प्यानल ब्रान्ड | NEC |
| प्यानल मोडेल | NL128102AC28-07 |
| प्यानल प्रकार | a-Si TFT-LCD , LCM |
| प्यानल आकार | 18.1 inch |
| संकल्प | 1280(RGB)×1024 , SXGA |
| प्रदर्शन मोड | A-SFT, Normally Black, Transmissive |
| सक्रिय क्षेत्र | 359.04×287.232 mm |
| रूपरेखा | 389×317.2×31.3 mm |
| सतह | Hard coating (2H), Antireflection |
| चमक | 240 cd/m² (Typ.) |
| विपरीत अनुपात | 300:1 (Typ.) |
| प्रदर्शन रंगहरू | 16.7M (8-bit), CIE193160% |
| प्रतिक्रिया समय | 15/14 (Typ.)(Tr+Td) |
| हेर्ने कोण | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| आवृत्ति | 60Hz |
| बत्ती प्रकार | 12 pcsCCFLEmbedded (Inverter) |
| संकेत इन्टरफेस | LVDS (2 ch, 8-bit), 50 pins |
| इनपुट भोल्टेज | 12.0V (Typ.) |
| आवेदन | IA |
