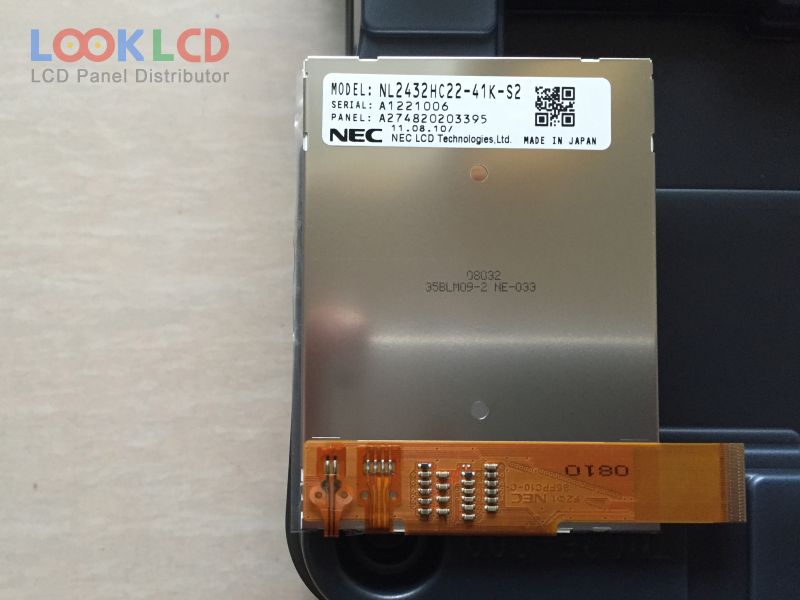

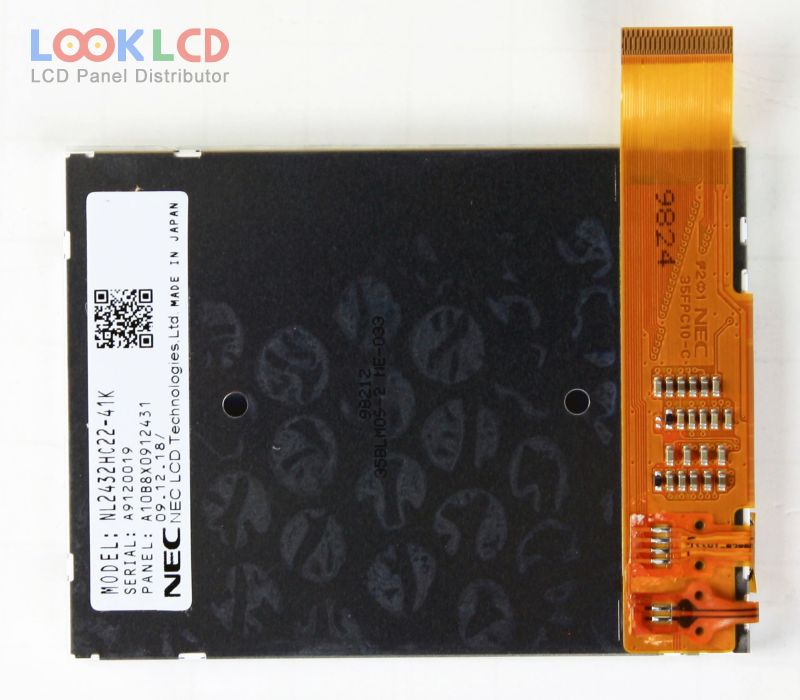

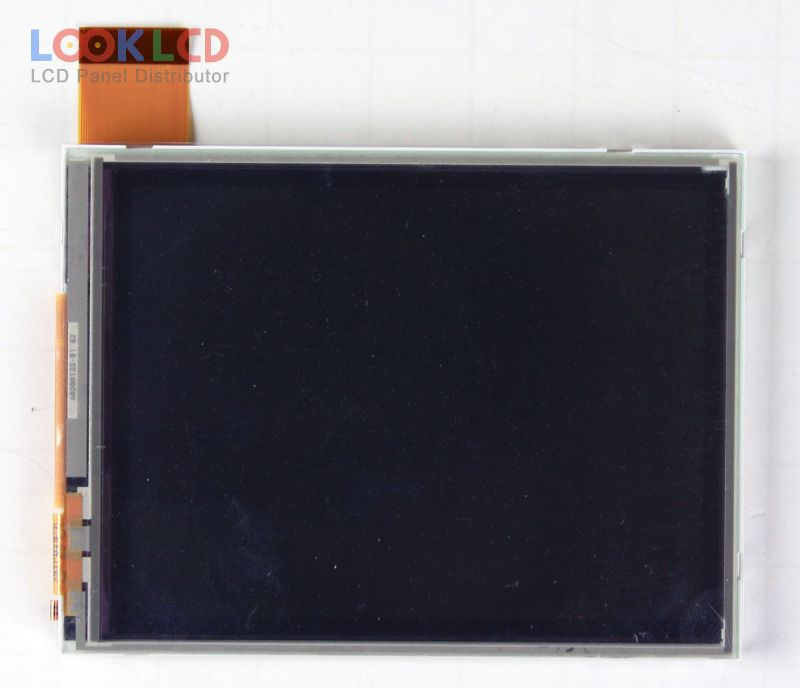

| भाग नम्बर | NL2432HC22-41K |
| ब्रान्ड | NLT |
| साइज | 3.5 |
| आवेदन | PDA |
| संकल्प | 240×320 |
| रचना | LCM |
| चमक | 200 |
| CR | 150:1 |
| रंगहरू | 262K |
| ब्याकलाइट | WLED |
| इन्टरफेस | TTL |
| प्यानल ब्रान्ड | NEC |
| प्यानल मोडेल | NL2432HC22-41K |
| प्यानल प्रकार | a-Si TFT-LCD , LCM |
| प्यानल आकार | 3.5 inch |
| संकल्प | 240(RGB)×320 , QVGA |
| प्रदर्शन मोड | TN, Normally White, Transflective |
| सक्रिय क्षेत्र | 53.64×71.52 mm |
| रूपरेखा | 63.5×85×7 mm |
| सतह | Clear, Hard coating (3H) |
| चमक | 200 cd/m² (Typ.) |
| विपरीत अनुपात | 150:1 (Typ.)(Transmissive)15:1 (Typ.)(Reflective) |
| प्रदर्शन रंगहरू | 262K (6-bit), CIE193140% |
| प्रतिक्रिया समय | 7/23 (Typ.)(Tr/Td) |
| हेर्ने कोण | 30/30/30/35 (Typ.)(CR≥5)(L/R/U/D) |
| आवृत्ति | 60Hz |
| बत्ती प्रकार | 6S1PWLEDWithout Driver |
| संकेत इन्टरफेस | CMOS (1 ch, 6-bit) + SPI, 45 pins |
| इनपुट भोल्टेज | 3.0V (Typ.) |
| आवेदन | PDA |
| ET035009DH6 | EDT | 3.5 | 320×240 |
| NL2432HC22-22B | NLT | 3.5 | 240×320 |
| NL2432HC22-23B | NLT | 3.5 | 240×320 |
| NL2432HC22-25E | NLT | 3.5 | 240×320 |
| NL2432HC22-32B | NLT | 3.5 | 240×320 |
| NL2432HC22-40J | NLT | 3.5 | 240×320 |
| NL2432HC22-41B | NLT | 3.5 | 240×320 |
| NL2432HC22-41K | NLT | 3.5 | 240×320 |
| NL2432HC22-50B | NLT | 3.5 | 240×320 |
| TM035KDH04 | Tianma | 3.5 | 320×240 |
| ACX502BMU-7 | SONY | 3.5 | 240×320 |
| LQ035Q7DH02 | SHARP | 3.5 | 240×320 |
| LQ035Q7DH06 | SHARP | 3.5 | 240×320 |
| LS037V7DD05 | SHARP | 3.7 | 480×640 |
| LTE283QV-F01 | Samsung | 2.8 | 320×240 |
| LTM035A776B | TOSHIBA | 3.5 | 240×320 |
| NL2432DR22-11B | NLT | 3.5 | 240×320 |
| NL4864HL11-01B | NLT | 3.5 | 480×640 |
| TM038QV-67A02A | SANYO | 3.8 | 320×240 |
| TM038QV-67A03 | SANYO | 3.8 | 320×240 |
