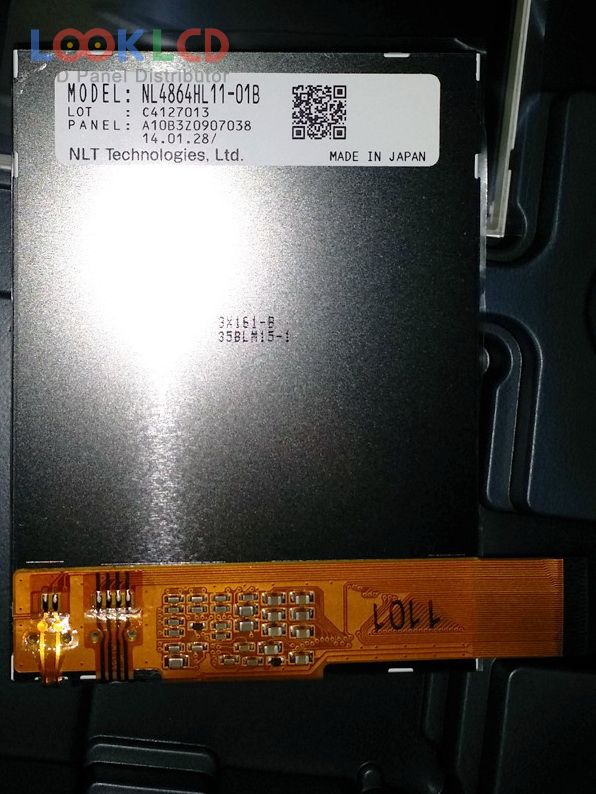

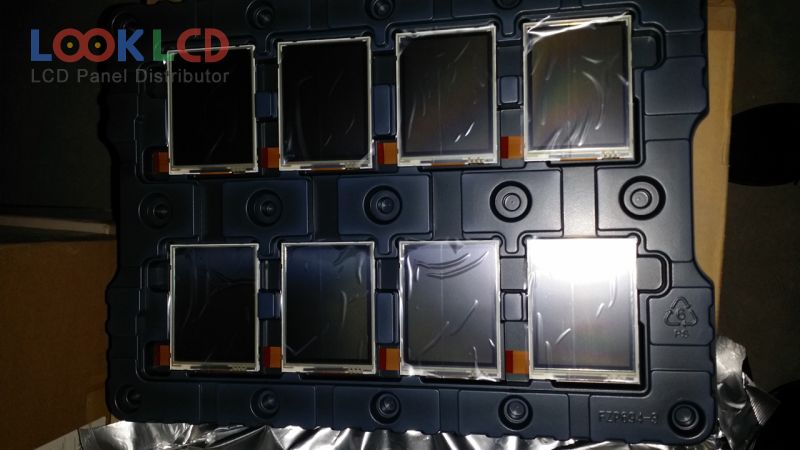

| भाग नम्बर | NL4864HL11-01B |
| ब्रान्ड | NLT |
| साइज | 3.5 |
| आवेदन | PDA |
| संकल्प | 480×640 |
| रचना | LCM |
| चमक | 200 |
| CR | 180:1 |
| रंगहरू | 262K |
| ब्याकलाइट | WLED |
| इन्टरफेस | TTL |
| प्यानल ब्रान्ड | NEC |
| प्यानल मोडेल | NL4864HL11-01B |
| प्यानल प्रकार | LTPS TFT-LCD , LCM |
| प्यानल आकार | 3.5 inch |
| संकल्प | 480(RGB)×640 , VGA |
| प्रदर्शन मोड | TN, Normally White, Transflective |
| सक्रिय क्षेत्र | 53.28×71.04 mm |
| रूपरेखा | 63.5×85 mm |
| सतह | Clear, Hard coating (3H) |
| चमक | 200 cd/m² (Typ.) |
| विपरीत अनुपात | 180:1 (Typ.)(Transmissive) |
| प्रदर्शन रंगहरू | 262K (6-bit), CIE193140% |
| प्रतिक्रिया समय | |
| हेर्ने कोण | 30/30/30/35 (Typ.)(CR≥10)(L/R/U/D) |
| आवृत्ति | 60Hz |
| बत्ती प्रकार | WLED |
| संकेत इन्टरफेस | CMOS (1 ch, 6-bit), 45 pins |
| इनपुट भोल्टेज | 3.0/3.0V (Typ.)(VCC/VCCIO) |
| आवेदन | PDA |
| 35HVE0H | SII | 3.5 | 320×480 |
| 35QVW1T | SII | 3.5 | 320×240 |
| COM35H3P09UTC | ORTUSTECH | 3.5 | 480×640 |
| DLC0350BMG-1 | Other | 3.5 | 240×320 |
| GCX123AKQ-E | JDI | 3.5 | 240×320 |
| LQ035Q1DH01 | SHARP | 3.5 | 320×240 |
| NL4864HL11-01B | NLT | 3.5 | 480×640 |
| PT035TN01 V.6 | Innolux | 3.5 | 320×240 |
| TX09D70VM1CEA | KOE | 3.5 | 240×320 |
| TX09D83VM3CEA | KOE | 3.5 | 240×320 |
| ACX502BMU-7 | SONY | 3.5 | 240×320 |
| LQ035Q7DH06 | SHARP | 3.5 | 240×320 |
| LS037V7DD05 | SHARP | 3.7 | 480×640 |
| NL2432HC22-22B | NLT | 3.5 | 240×320 |
| NL2432HC22-25E | NLT | 3.5 | 240×320 |
| NL2432HC22-32B | NLT | 3.5 | 240×320 |
| NL2432HC22-40J | NLT | 3.5 | 240×320 |
| TD026TTEA1 | TPO | 2.6 | 480×640 |
| TM038QV-67A02E | SANYO | 3.8 | 320×240 |
| TX09D23VM1CAA | KOE | 3.5 | 240×320 |
