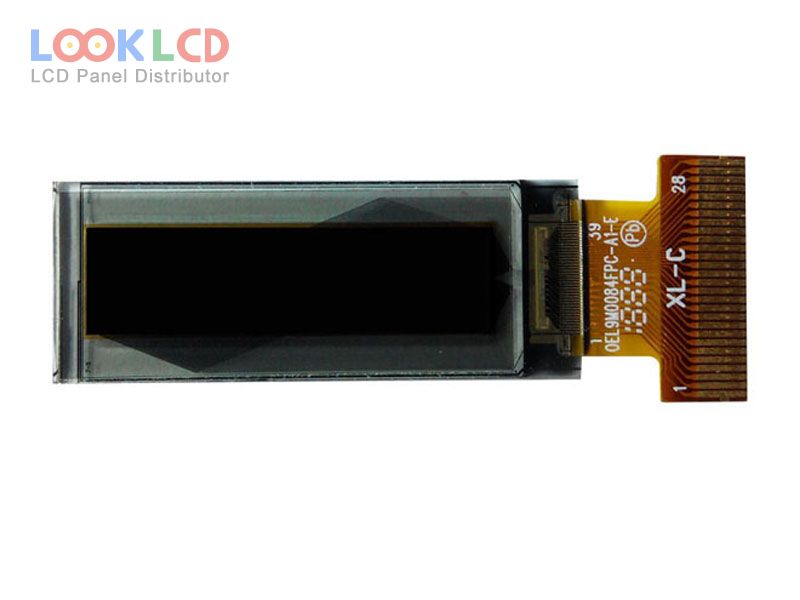

| भाग नम्बर | OEL9M0084-R-E |
| ब्रान्ड | Other |
| साइज | 0.91 |
| आवेदन | SW |
| संकल्प | 128×32 |
| रचना | OLED |
| चमक | |
| CR | 10000:1 |
| रंगहरू | Mono(Red) |
| ब्याकलाइट | self |
| इन्टरफेस | CPU/SPI/I²C |
| प्यानल ब्रान्ड | TRULY |
| प्यानल मोडेल | OEL9M0084-R-E |
| प्यानल प्रकार | PM-OLED , OLED |
| प्यानल आकार | 0.91 inch |
| संकल्प | 128×32 |
| सक्रिय क्षेत्र | 22.38×5.58 mm |
| रूपरेखा | 30×11.5×1.55 mm |
| सतह | |
| चमक | |
| विपरीत अनुपात | 10000 : 1 (Min.) |
| प्रदर्शन रंगहरू | Mono(Red) (1-bit) |
| हेर्ने कोण | 80/80/80/80 (Min.)(L/R/U/D) |
| आवृत्ति | 100Hz |
| चालक आईसी | COG Built-in SH1103G |
| संकेत इन्टरफेस | 8-bit 6800/8080 parallel, SPI, I²C, 28 pins |
| इनपुट भोल्टेज | 3.0/3.7/10.0V (Typ.)(VDD1/VDD2/VPP) |
| rohs: | |
| आवेदन | SW |
| OEL9M0064-Y-E | Other | 2.0 | 128×32 |
| OEL9M0068-G-E | Other | 0.91 | 128×32 |
| OEL9M0068-W-E | Other | 0.91 | 128×32 |
| OEL9M0073-B-E | Other | 1.0 | 128×64 |
| OEL9M0073-W-E | Other | 1.0 | 128×64 |
| OEL9M0078-Y-E | Other | 1.45 | 132×16 |
| OEL9M0082-Y-E | Other | 1.1 | 128×128 |
| OEL9M0083-B-E | Other | 0.96 | 128×64 |
| OEL9M0084-B-E | Other | 0.91 | 128×32 |
| OEL9M0084-R-E | Other | 0.91 | 128×32 |
| H139BLN01.0 | AUO | 1.39 | 400×400 |
| LS010B7DH01 | SHARP | 0.99 | 128×128 |
| LS012B7DH02 | SHARP | 1.2 | 240×240 |
| OEL9M0084-W-E | Other | 0.91 | 128×32 |
| OEL9M1010-W-E | Other | 0.95 | 96×64 |
| OEL9M1010-Y-E | Other | 0.95 | 96×64 |
| RGS13128096FH003 | RiTdisplay | 1.3 | 128×96 |
| RGS13128096WH000 | RiTdisplay | 1.3 | 128×96 |
| RGS18160128FH003 | RiTdisplay | 1.8 | 160×128 |
| RGS18160128FH007 | RiTdisplay | 1.8 | 160×128 |
