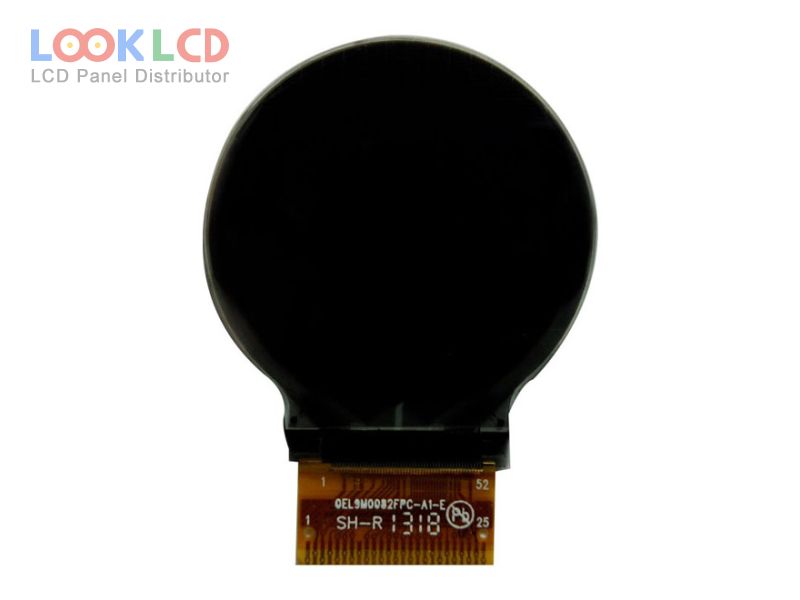

| भाग नम्बर | OEL9M0082-Y-E |
| ब्रान्ड | Other |
| साइज | 1.1 |
| आवेदन | SW |
| संकल्प | 128×128 |
| रचना | OLED |
| चमक | |
| CR | 10000:1 |
| रंगहरू | Grayscale(Y) |
| ब्याकलाइट | self |
| इन्टरफेस | CPU/SPI |
| प्यानल ब्रान्ड | TRULY |
| प्यानल मोडेल | OEL9M0082-Y-E |
| प्यानल प्रकार | PM-OLED , OLED |
| प्यानल आकार | 1.1 inch |
| संकल्प | 128×128 |
| सक्रिय क्षेत्र | 28.8×28.8 mm |
| रूपरेखा | 37.62×41.31×1.55 mm |
| सतह | |
| चमक | |
| विपरीत अनुपात | 10000 : 1 (Min.) |
| प्रदर्शन रंगहरू | Grayscale(Y) (4-bit) |
| हेर्ने कोण | 80/80/80/80 (Min.)(L/R/U/D) |
| आवृत्ति | 100Hz |
| चालक आईसी | COG Built-in SSD1329Z |
| संकेत इन्टरफेस | 8-bit 6800/8080 parallel, SPI, 25 pins |
| इनपुट भोल्टेज | 3.0/3.0/13.0V (Typ.)(VDD/VDDIO/VCC) |
| आवेदन | SW |
| OEL9M0039-W-E | Other | 1.5 | 128×128 |
| OEL9M0053-Y-E | Other | 1.6 | 128×64 |
| OEL9M0064-B-E | Other | 2.0 | 128×32 |
| OEL9M0068-R-E | Other | 0.91 | 128×32 |
| OEL9M0068-Y-E | Other | 0.91 | 128×32 |
| OEL9M0073-B-E | Other | 1.0 | 128×64 |
| OEL9M0082-Y-E | Other | 1.1 | 128×128 |
| OEL9M0083-Y-E | Other | 0.96 | 128×64 |
| OEL9M0084-W-E | Other | 0.91 | 128×32 |
| OEL9M0084-Y-E | Other | 0.91 | 128×32 |
| LPM013M091A | JDI | 1.34 | 320×300 |
| LS013B7DH06 | SHARP | 1.33 | 128×128 |
| OEL9M0082-R-E | Other | 1.1 | 128×128 |
| OEL9M1004-L4-E | Other | 1.5 | 128×128 |
| OEL9M1010-R-E | Other | 0.95 | 96×64 |
| RGS13128096WH000 | RiTdisplay | 1.3 | 128×96 |
| RGS15128128WR000 | RiTdisplay | 1.5 | 128×128 |
| RGS18160128FH003 | RiTdisplay | 1.8 | 160×128 |
| RGS18160128FH007 | RiTdisplay | 1.8 | 160×128 |
| UG-S009TSWAGF3 | WiseChip | 1.1 | 160×128 |
