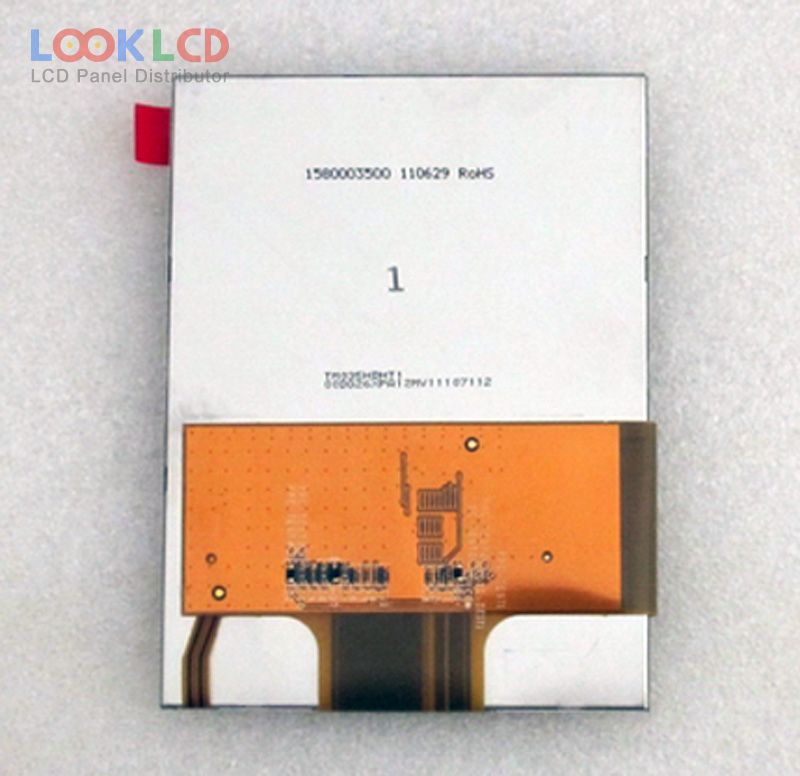

| भाग नम्बर | TM035HDHT1 |
| ब्रान्ड | Tianma |
| साइज | 3.5 |
| आवेदन | HHP |
| संकल्प | 240×320 |
| रचना | LCM |
| चमक | 100 |
| CR | 150:1 |
| रंगहरू | 262K |
| ब्याकलाइट | WLED |
| इन्टरफेस | TTL |
| प्यानल ब्रान्ड | TIANMA |
| प्यानल मोडेल | TM035HDHT1 |
| प्यानल प्रकार | a-Si TFT-LCD , LCM |
| प्यानल आकार | 3.5 inch |
| संकल्प | 240(RGB)×320 , QVGA |
| प्रदर्शन मोड | ECB, Normally White, Transflective |
| सक्रिय क्षेत्र | 53.64×71.52 mm |
| रूपरेखा | 64×85×3.13 mm |
| सतह | Hard coating |
| चमक | 100 cd/m² (Typ.) |
| विपरीत अनुपात | 150:1 (Typ.)(Transmissive)2.5:1 (Typ.)(Reflective) |
| प्रदर्शन रंगहरू | 262K (6-bit), CIE193135% |
| प्रतिक्रिया समय | 35 (Typ.)(Tr+Td) |
| हेर्ने कोण | 40/45/55/40 (Typ.)(CR≥10)(L/R/U/D) |
| आवृत्ति | 60Hz |
| बत्ती प्रकार | 6S1PWLEDWithout Driver |
| संकेत इन्टरफेस | Parallel RGB (1 ch, 6-bit) + SPI, 50 pins |
| इनपुट भोल्टेज | 2.8/15/-10V (Typ.)(VCC/VGH/VGL) |
| आवेदन | HHP |
