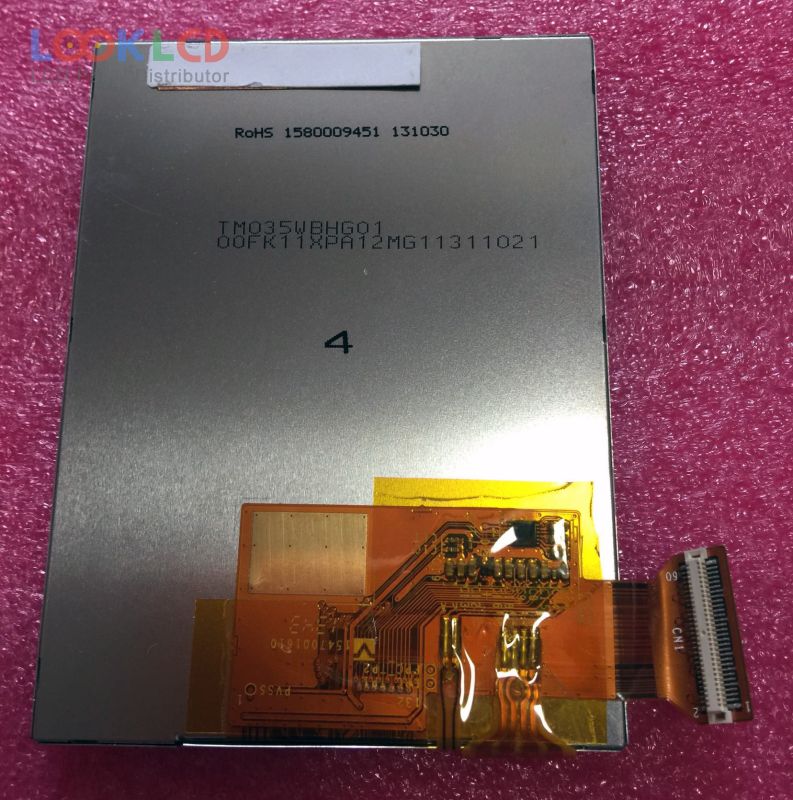

| भाग नम्बर | TM035WBHG01 |
| ब्रान्ड | Tianma |
| साइज | 3.5 |
| आवेदन | HHP |
| संकल्प | 480×640 |
| रचना | LCM |
| चमक | 250 |
| CR | 500:1 |
| रंगहरू | 262K |
| ब्याकलाइट | WLED |
| इन्टरफेस | TTL |
| प्यानल ब्रान्ड | TIANMA |
| प्यानल मोडेल | TM035WBHG01 |
| प्यानल प्रकार | a-Si TFT-LCD , LCM |
| प्यानल आकार | 3.5 inch |
| संकल्प | 480(RGB)×640 , VGA |
| प्रदर्शन मोड | TN, Normally White, Transmissive |
| सक्रिय क्षेत्र | 53.28×71.04 mm |
| रूपरेखा | 64×85×4.63 mm |
| सतह | Antiglare |
| चमक | 250 cd/m² (Typ.) |
| विपरीत अनुपात | 500:1 (Typ.) |
| प्रदर्शन रंगहरू | 262K (6-bit), CIE193150% |
| प्रतिक्रिया समय | 25 (Typ.)(Tr+Td) |
| हेर्ने कोण | 60/70/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| बत्ती प्रकार | 6S1PWLEDWithout Driver |
| संकेत इन्टरफेस | Parallel RGB (1 ch, 6-bit), 60 pins |
| इनपुट भोल्टेज | 2.8V (Typ.) |
| आवेदन | HHP |
