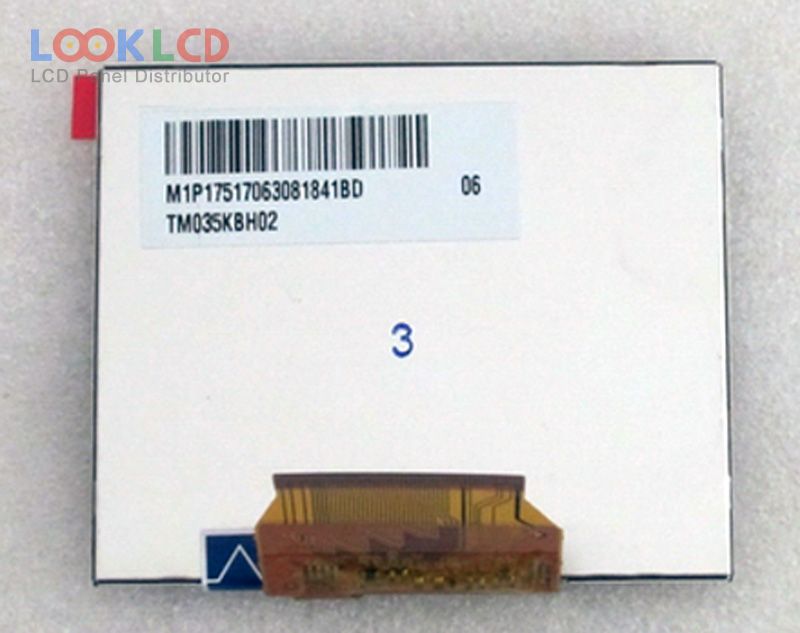

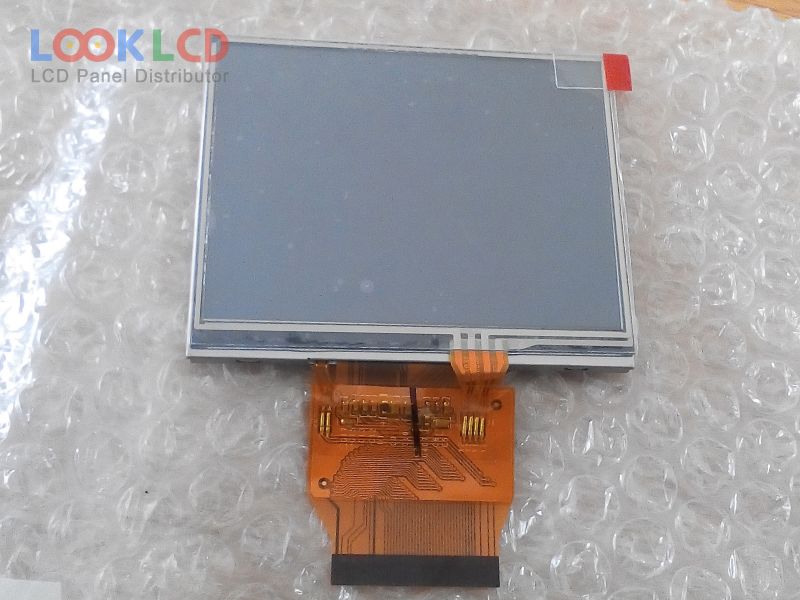

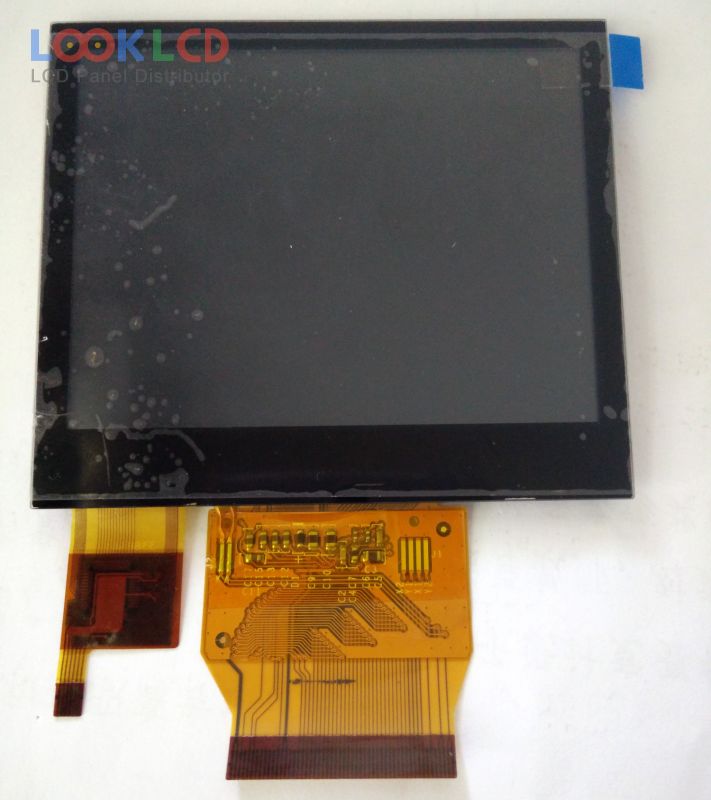

| भाग नम्बर | TM035KBH02 |
| ब्रान्ड | Tianma |
| साइज | 3.5 |
| आवेदन | DSC |
| संकल्प | 320×240 |
| रचना | LCM |
| चमक | 350 |
| CR | 500:1 |
| रंगहरू | 16.7M |
| ब्याकलाइट | WLED |
| इन्टरफेस | Parallel/Serial |
| प्यानल ब्रान्ड | TIANMA |
| प्यानल मोडेल | TM035KBH02 1 Compatible model |
| प्यानल प्रकार | a-Si TFT-LCD , LCM |
| प्यानल आकार | 3.5 inch |
| संकल्प | 320(RGB)×240 , QVGA |
| प्रदर्शन मोड | TN, Normally White, Transmissive |
| सक्रिय क्षेत्र | 70.08×52.56 mm |
| रूपरेखा | 76.9×63.9×4.2 mm |
| सतह | Antiglare, Hard coating (3H) |
| चमक | 350 cd/m² (Typ.) |
| विपरीत अनुपात | 500:1 (Typ.) |
| प्रदर्शन रंगहरू | 16.7M (6-bit + Dithering), CIE193150% |
| प्रतिक्रिया समय | 25 (Typ.)(Tr+Td) |
| हेर्ने कोण | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| आवृत्ति | 60Hz |
| बत्ती प्रकार | 6S1PWLEDWithout Driver |
| संकेत इन्टरफेस | Digital RGB (8/24-bit) + SPI, CCIR601/656, 54 pins |
| इनपुट भोल्टेज | 3.3V (Typ.) |
| आवेदन | DSC |
