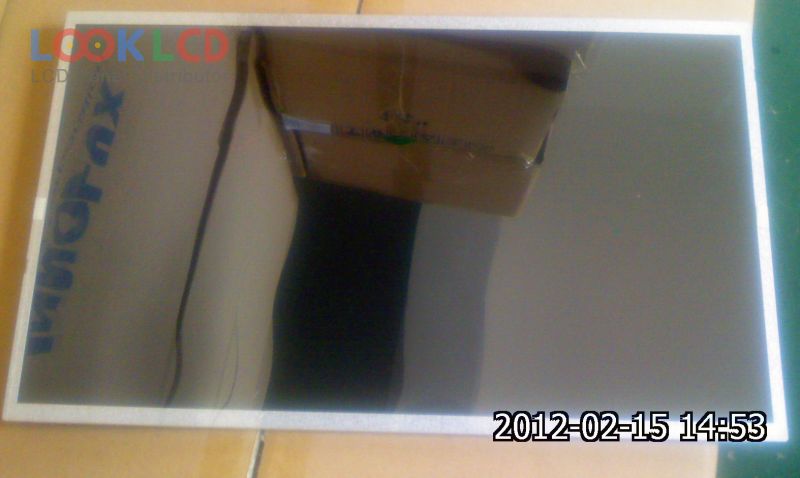

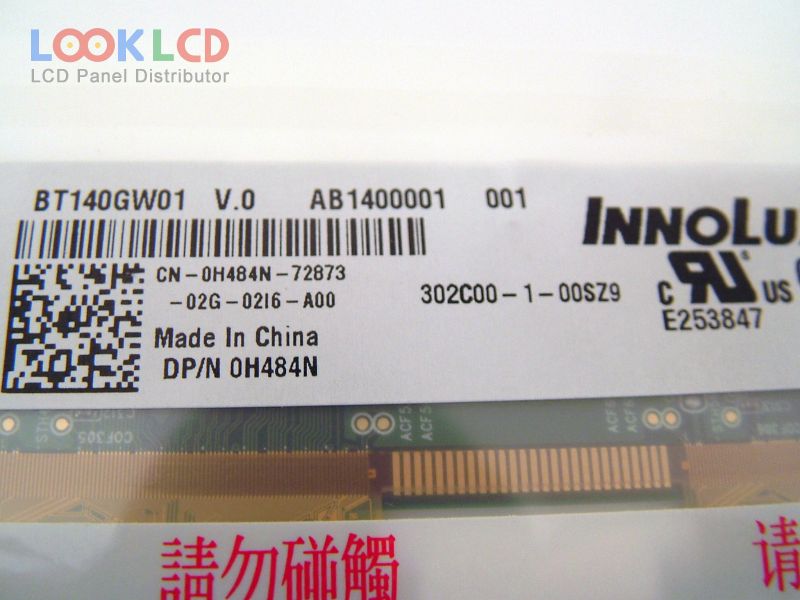

| भाग नम्बर | BT140GW01 V.0 |
| ब्रान्ड | Innolux |
| साइज | 14.0 |
| आवेदन | NBPC |
| संकल्प | 1366×768 |
| रचना | LCM |
| चमक | 220 |
| CR | 600:1 |
| रंगहरू | 262K |
| ब्याकलाइट | WLED |
| इन्टरफेस | LVDS |
| प्यानल ब्रान्ड | INNOLUX |
| प्यानल मोडेल | BT140GW01 V.0 |
| प्यानल प्रकार | a-Si TFT-LCD , LCM |
| प्यानल आकार | 14.0 inch |
| संकल्प | 1366(RGB)×768 , WXGA |
| प्रदर्शन मोड | TN, Normally White, Transmissive |
| सक्रिय क्षेत्र | 309.399×173.952 mm |
| रूपरेखा | 323.5×192×5.2 mm |
| आकार शैली | Wedge (PCBA Bent, Depth ≥5.2mm) |
| सतह | Glare (Haze 0%), Hard coating (3H) |
| चमक | 220 cd/m² (Typ.) |
| विपरीत अनुपात | 600:1 (Typ.) |
| प्रदर्शन रंगहरू | 262K (6-bit), CIE193160% |
| प्रतिक्रिया समय | 8 (Typ.)(Tr+Td) |
| हेर्ने कोण | 40/40/15/30 (Min.)(CR≥10)(L/R/U/D) |
| आवृत्ति | 60Hz |
| बत्ती प्रकार | WLEDEmbedded (LED Driver) |
| संकेत इन्टरफेस | LVDS (1 ch, 6-bit), 40 pins |
| इनपुट भोल्टेज | 3.3V (Typ.) |
| आवेदन | NBPC |
