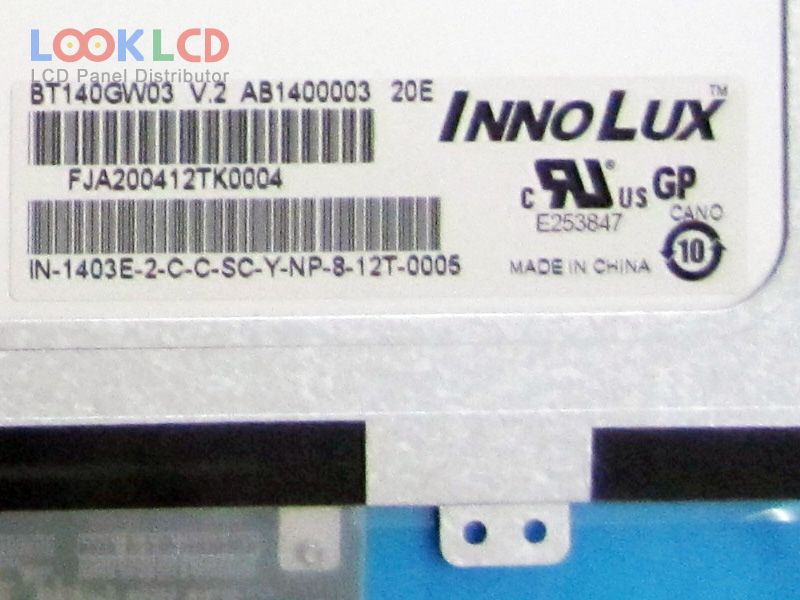

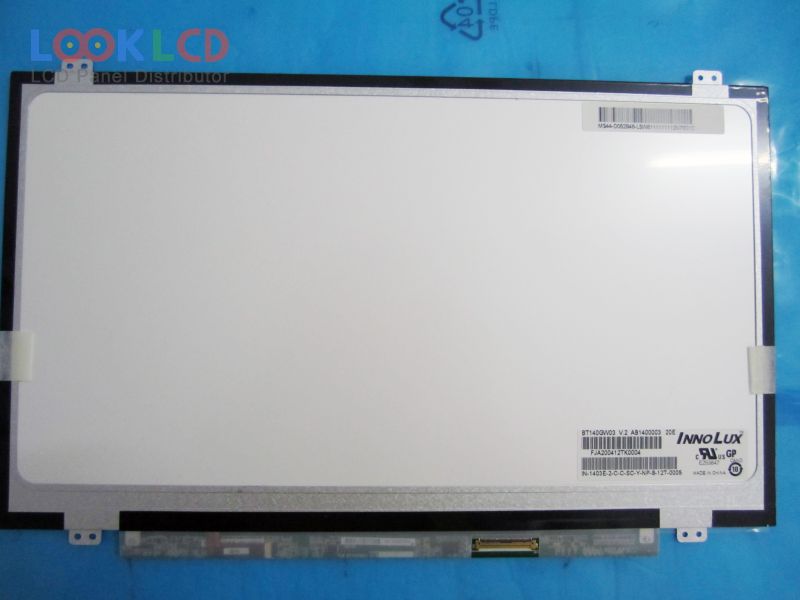

| भाग नम्बर | BT140GW03 V.2 |
| ब्रान्ड | Innolux |
| साइज | 14.0 |
| आवेदन | NBPC |
| संकल्प | 1366×768 |
| रचना | LCM |
| चमक | 200 |
| CR | 600:1 |
| रंगहरू | 262K |
| ब्याकलाइट | WLED |
| इन्टरफेस | LVDS |
| प्यानल ब्रान्ड | CHIMEI INNOLUX |
| प्यानल मोडेल | BT140GW03 V.2 6 Compatible model |
| प्यानल प्रकार | a-Si TFT-LCD , LCM |
| प्यानल आकार | 14.0 inch |
| संकल्प | 1366(RGB)×768 , WXGA |
| प्रदर्शन मोड | TN, Normally White, Transmissive |
| सक्रिय क्षेत्र | 309.399×173.952 mm |
| रूपरेखा | 320.4×205.1×3.6 mm |
| आकार शैली | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| सतह | Glare (Haze 0%), Hard coating (3H) |
| चमक | 200 cd/m² (Typ.) |
| विपरीत अनुपात | 600:1 (Typ.) |
| प्रदर्शन रंगहरू | 262K (6-bit), CIE193145% |
| प्रतिक्रिया समय | 8 (Typ.)(Tr+Td) |
| हेर्ने कोण | 45/45/15/30 (Typ.)(CR≥10)(L/R/U/D) |
| आवृत्ति | 60Hz |
| बत्ती प्रकार | 9S4PWLEDEmbedded (LED Driver) |

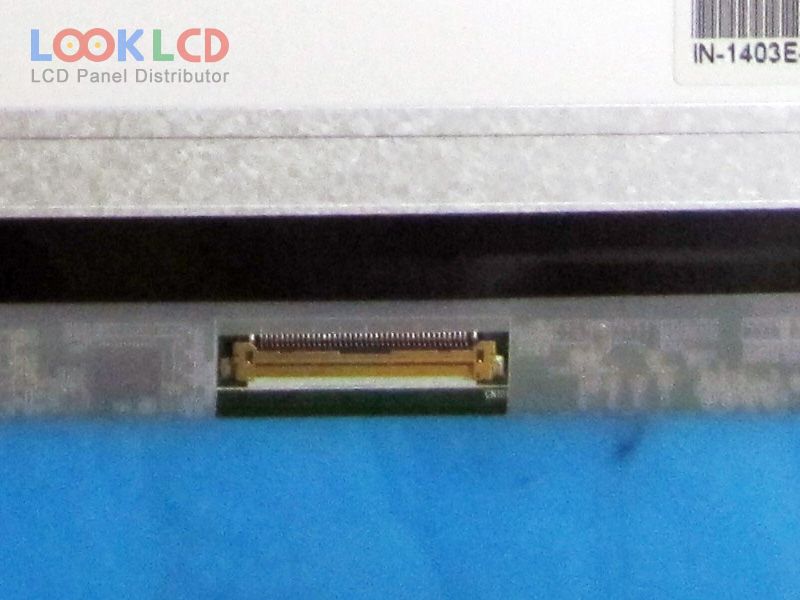

| संकेत इन्टरफेस | LVDS (1 ch, 6-bit), 40 pins |
| इनपुट भोल्टेज | 3.3V (Typ.) |
| आवेदन | NBPC |
| BT140GW01 V.0 | Innolux | 14.0 | 1366×768 |
| BT140GW01 V.4 | Innolux | 14.0 | 1366×768 |
| BT140GW01 V.5 | Innolux | 14.0 | 1366×768 |
| BT140GW01 V.A | Innolux | 14.0 | 1366×768 |
| BT140GW02 V.0 | Innolux | 14.0 | 1366×768 |
| BT140GW02 V.2 | Innolux | 14.0 | 1366×768 |
| BT140GW02 V.9 | Innolux | 14.0 | 1366×768 |
| BT140GW03 V.2 | Innolux | 14.0 | 1366×768 |
| HB140WH1-504 | BOE | 14.0 | 1366×768 |
| B154EW01 V1 | AUO | 15.4 | 1280×800 |
| B156RW01 V0 | AUO | 15.6 | 1600×900 |
| LP140WH2-TLB1 | LG Display | 14.0 | 1366×768 |
| LP140WHU-TPB2 | LG Display | 14.0 | 1366×768 |
| LP156WF4-SLBA | LG Display | 15.6 | 1920×1080 |
| LP156WH2-TLD1 | LG Display | 15.6 | 1366×768 |
| LQ164D1LA4B | SHARP | 16.4 | 1600×900 |
| LTN140AT20-301 | Samsung | 14.0 | 1366×768 |
| LTN184KT01-S02 | Samsung | 18.4 | 1680×945 |
| NL10276BC28-21A | NLT | 14.1 | 1024×768 |
