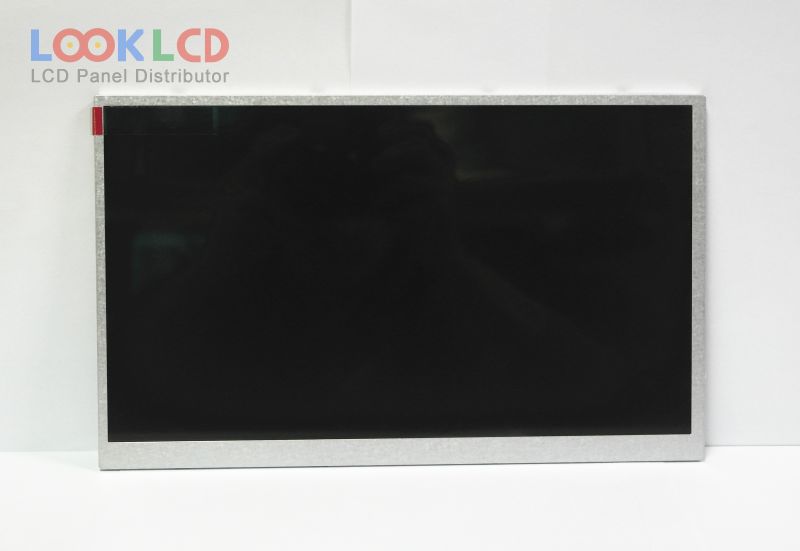

| भाग नम्बर | CLAA101ND02CW |
| ब्रान्ड | CPT |
| साइज | 10.1 |
| आवेदन | DPF |
| संकल्प | 1024×600 |
| रचना | LCM |
| चमक | |
| CR | 600:1 |
| रंगहरू | 262K/16.2M |
| ब्याकलाइट | WLED |
| इन्टरफेस | LVDS |
| प्यानल ब्रान्ड | CPT |
| प्यानल मोडेल | CLAA101ND02CW |
| प्यानल प्रकार | a-Si TFT-LCD , LCM |
| प्यानल आकार | 10.1 inch |
| संकल्प | 1024(RGB)×600 , WSVGA |
| प्रदर्शन मोड | TN, Normally White, Transmissive |
| सक्रिय क्षेत्र | 222.72×125.28 mm |
| सतह | Antiglare |
| चमक | |
| विपरीत अनुपात | 600:1 (Typ.) |
| प्रदर्शन रंगहरू | 262K/16.2M (6-bit / 6-bit + FRC), CIE193150% |
| प्रतिक्रिया समय | 25 (Typ.)(Tr+Td) |
| हेर्ने कोण | 70/70/70/50 (Typ.)(CR≥10)(L/R/U/D) |
| आवृत्ति | 60Hz |
| बत्ती प्रकार | WLEDWithout Driver |
| संकेत इन्टरफेस | LVDS (1 ch, 6/8-bit), 50 pins |
| आवेदन | DPF |
