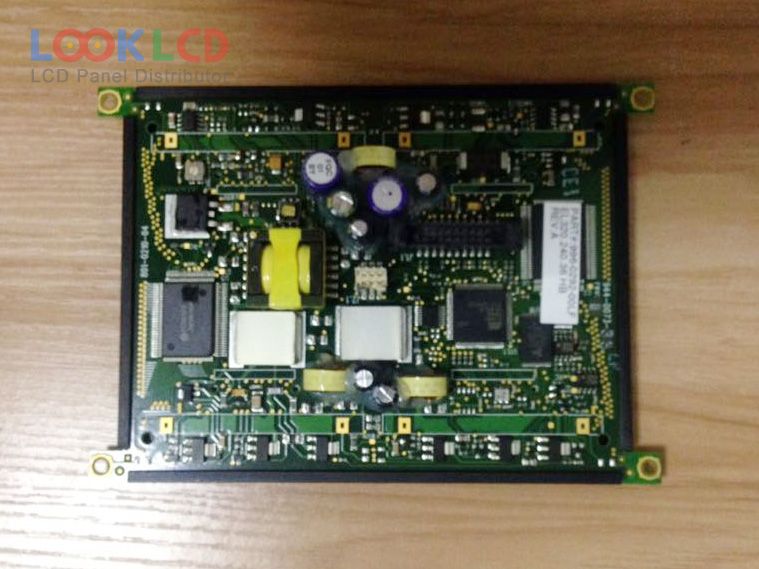

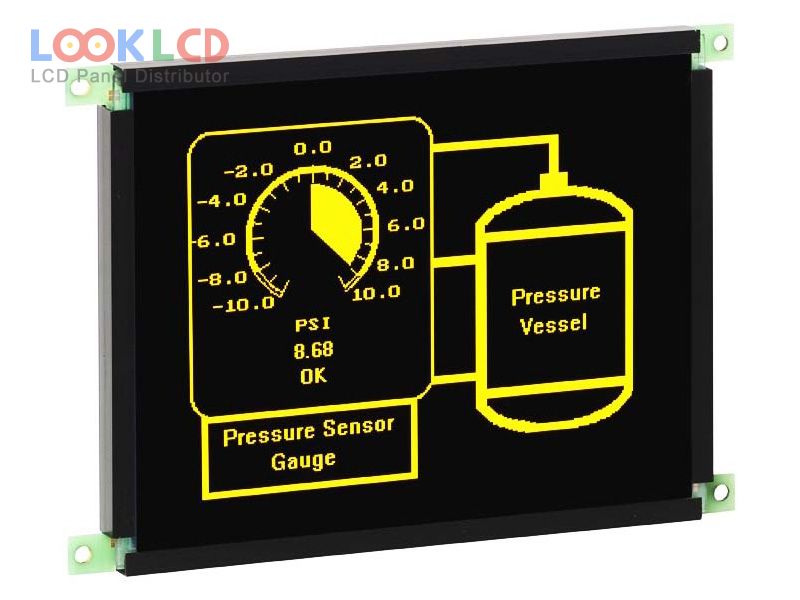

| भाग नम्बर | EL320.240.36 HB |
| ब्रान्ड | Lumineq |
| साइज | 5.7 |
| आवेदन | IA |
| संकल्प | 320×240 |
| रचना | EL |
| चमक | 150 |
| CR | 90:1 |
| रंगहरू | Mono(Yellow) |
| ब्याकलाइट | self |
| इन्टरफेस | Parallel Data |
| प्यानल ब्रान्ड | Lumineq |
| प्यानल मोडेल | EL320.240.36 HB |
| प्यानल प्रकार | EL , EL |
| प्यानल आकार | 5.7 inch |
| संकल्प | 320×240 , QVGA |
| सक्रिय क्षेत्र | 115.1×86.3 mm |
| रूपरेखा | 148.1×104.7 mm |
| सतह | |
| चमक | 150 cd/m² (Typ.) |
| विपरीत अनुपात | 90 : 1 (Typ.) |
| प्रदर्शन रंगहरू | Mono(Yellow) (1-bit) |
| हेर्ने कोण | 89/89/89/89 (Typ.)(L/R/U/D) |
| आवृत्ति | 120Hz |
| संकेत इन्टरफेस | Parallel Data (1ch, 4-bit), 26 pins |
| इनपुट भोल्टेज | 5/12V (Typ.)(VL/VH) |
| आवेदन | IA |
