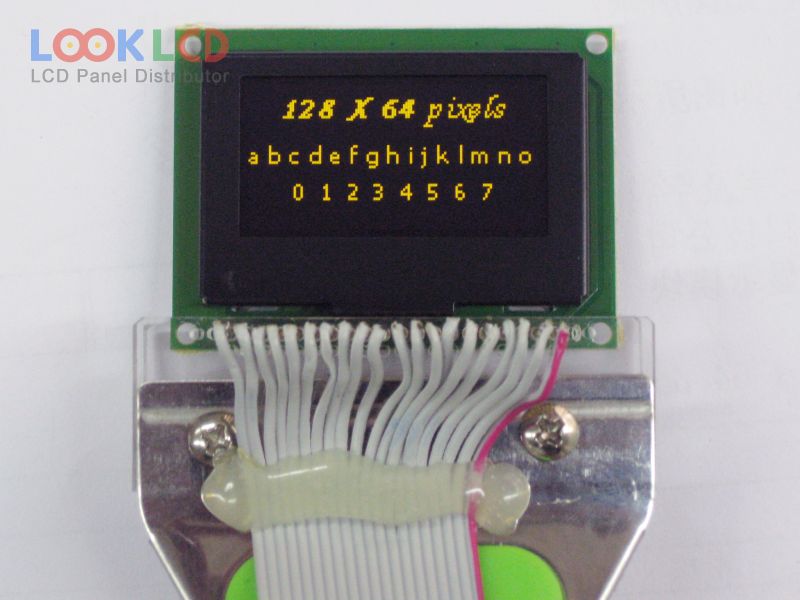

| भाग नम्बर | HGS128647-Y-EH-LV |
| ब्रान्ड | Other |
| साइज | 1.54 |
| आवेदन | IA |
| संकल्प | 128×64 |
| रचना | OLED |
| चमक | 150 |
| CR | 2000:1 |
| रंगहरू | Mono(Yellow) |
| ब्याकलाइट | self |
| इन्टरफेस | CPU/SPI/I²C |
| प्यानल ब्रान्ड | TSINGTEK |
| प्यानल मोडेल | HGS128647-Y-EH-LV |
| प्यानल प्रकार | PM-OLED , OLED |
| प्यानल आकार | 1.54 inch |
| संकल्प | 128×64 |
| सक्रिय क्षेत्र | 35.056×17.52 mm |
| रूपरेखा | 54×39.5×8.5 mm |
| सतह | |
| चमक | 150 cd/m² (Typ.) |
| विपरीत अनुपात | 2000 : 1 (Min.) |
| प्रदर्शन रंगहरू | Mono(Yellow) |
| हेर्ने कोण | 80/80/80/80 (Min.)(L/R/U/D) |
| चालक आईसी | Built-in SSD1305 |
| संकेत इन्टरफेस | 8-bit 6800/8080 parallel, 4-wire SPI, I²C, 20 pins |
| इनपुट भोल्टेज | 3.3V (Typ.) |
| rohs: | |
| आवेदन | IA |
