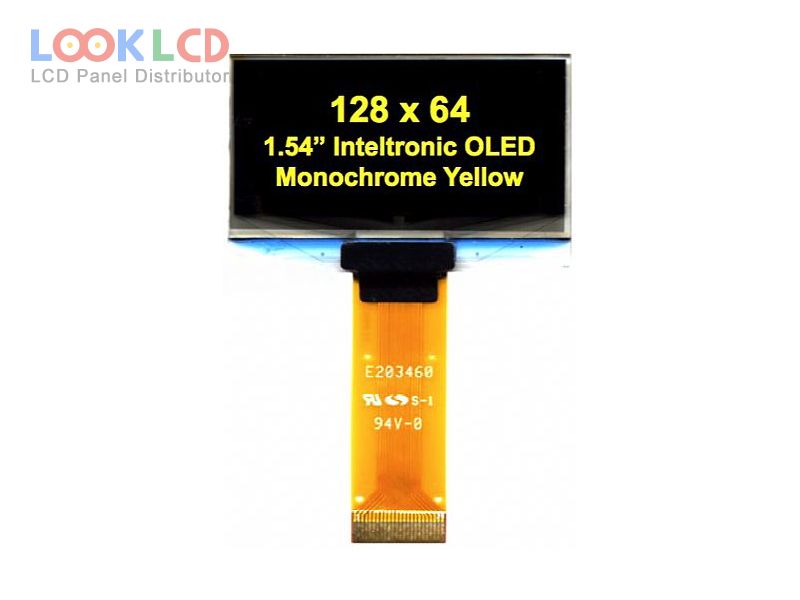

| भाग नम्बर | UG-2864ASYCG01 |
| ब्रान्ड | WiseChip |
| साइज | 1.54 |
| आवेदन | IA |
| संकल्प | 128×64 |
| रचना | OLED |
| चमक | 150 |
| CR | 10000:1 |
| रंगहरू | Mono(Yellow) |
| ब्याकलाइट | self |
| इन्टरफेस | CPU/SPI/I²C |
| प्यानल ब्रान्ड | WiseChip |
| प्यानल मोडेल | UG-2864ASYCG01 |
| प्यानल प्रकार | PM-OLED , OLED |
| प्यानल आकार | 1.54 inch |
| संकल्प | 128×64 |
| सक्रिय क्षेत्र | 35.056×17.52 mm |
| रूपरेखा | 45.24×29.14×2.1 mm |
| सतह | |
| चमक | 150 cd/m² (Typ.) |
| विपरीत अनुपात | 10000 : 1 (Typ.) |
| प्रदर्शन रंगहरू | Mono(Yellow) (1-bit) |
| हेर्ने कोण | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| चालक आईसी | COG Built-in SSD1305 |
| संकेत इन्टरफेस | 8-bit 6800/8080 parallel, 4-wire SPI, I²C, 24 pins |
| इनपुट भोल्टेज | 2.8/12.5V (Typ.)(VDD/VCC) |
| rohs: | |
| आवेदन | IA |
