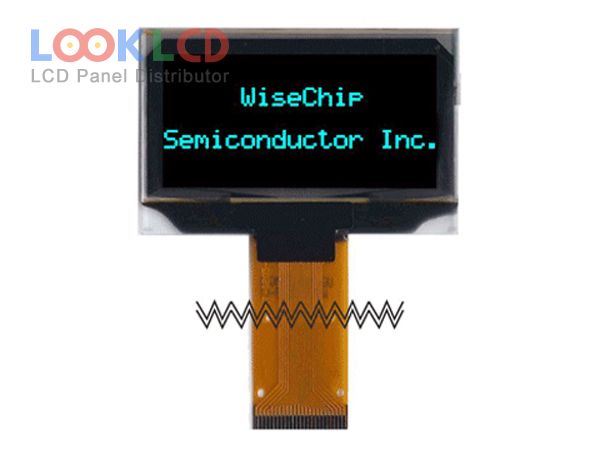

| भाग नम्बर | UG-2864KLBMG01 |
| ब्रान्ड | WiseChip |
| साइज | 1.54 |
| आवेदन | IA |
| संकल्प | 128×64 |
| रचना | OLED |
| चमक | 120 |
| CR | 10000:1 |
| रंगहरू | Mono(Blue) |
| ब्याकलाइट | self |
| इन्टरफेस | CPU/SPI/I²C |
| प्यानल ब्रान्ड | WiseChip |
| प्यानल मोडेल | UG-2864KLBMG01 |
| प्यानल प्रकार | PM-OLED , OLED |
| प्यानल आकार | 1.54 inch |
| संकल्प | 128×64 |
| सक्रिय क्षेत्र | 35.052×17.516 mm |
| रूपरेखा | 42.04×27.22 mm |
| सतह | |
| चमक | 120 cd/m² (Typ.) |
| विपरीत अनुपात | 10000 : 1 (Typ.) |
| प्रदर्शन रंगहरू | Mono(Blue) |
| हेर्ने कोण | |
| चालक आईसी | Built-in SSD1309 |
| संकेत इन्टरफेस | 8-bit 6800/8080 parallel, 4-wire SPI, I²C |
| rohs: | |
| आवेदन | IA |
| UG-2864ASGPG01 | WiseChip | 2.4 | 128×64 |
| UG-2864ASWIG01 | WiseChip | 2.7 | 128×64 |
| UG-2864ASWPG01 | WiseChip | 2.4 | 128×64 |
| UG-2864ASYCG01 | WiseChip | 1.54 | 128×64 |
| UG-2864HLBEG01 | WiseChip | 0.96 | 128×64 |
| UG-2864HSWEG01 | WiseChip | 0.96 | 128×64 |
| UG-2864KLBLG01 | WiseChip | 1.3 | 128×64 |
| UG-2864KLBMG01 | WiseChip | 1.54 | 128×64 |
| UG-2864KSWLG01 | WiseChip | 1.3 | 128×64 |
| UG-2864KSWMG01 | WiseChip | 1.54 | 128×64 |
| AA084VB01 | Mitsubishi | 8.4 | 640×480 |
| EL320.240.36 AG | Lumineq | 5.7 | 320×240 |
| ELT256.120.90 | Lumineq | 10.0 | 256×120 |
| KHB104SV1AD-G83 | Kyocera | 10.4 | 800×600 |
| LB121S03-TD01 | LG Display | 12.1 | 800×600 |
| LM065HB1T01 | SHARP | 6.5 | 640×240 |
| LM238XB | KOE | 5.9 | 240×128 |
| LTA090A220F | TOSHIBA | 9.0 | 800×480 |
| OEL9M0073-Y-E | Other | 1.0 | 128×64 |
| PD064VXC | E Ink | 6.4 | 640×480 |
