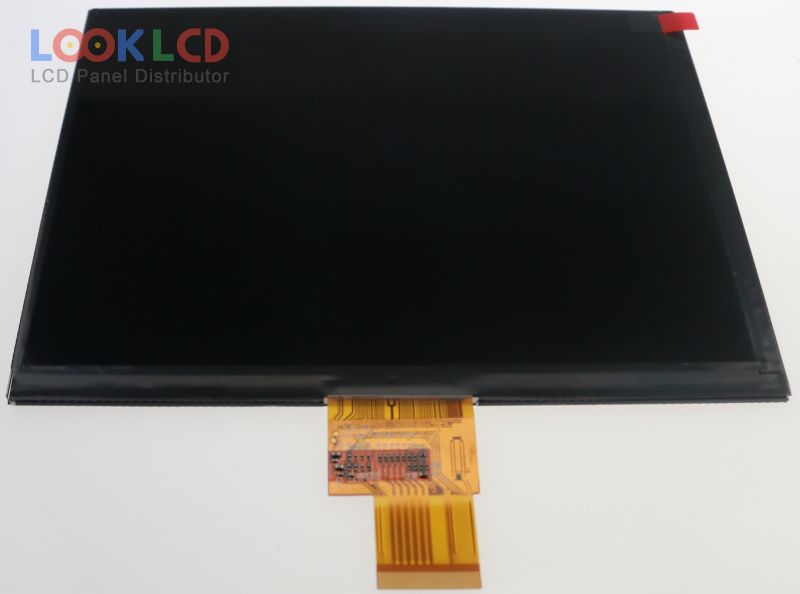

| भाग नम्बर | HJ080IA-01F |
| ब्रान्ड | Innolux |
| साइज | 8.0 |
| आवेदन | DPF |
| संकल्प | 1024×768 |
| रचना | LCM |
| चमक | 350 |
| CR | 800:1 |
| रंगहरू | 262K/16.7M |
| ब्याकलाइट | WLED |
| इन्टरफेस | LVDS |
| प्यानल ब्रान्ड | CHIMEI INNOLUX |
| प्यानल मोडेल | HJ080IA-01F |
| प्यानल प्रकार | a-Si TFT-LCD , LCM |
| प्यानल आकार | 8.0 inch |
| संकल्प | 1024(RGB)×768 , XGA |
| प्रदर्शन मोड | IPS, Normally Black, Transmissive |
| सक्रिय क्षेत्र | 162.048×121.536 mm |
| रूपरेखा | 174×136×2.65 mm |
| सतह | Hard coating |
| चमक | 350 cd/m² (Typ.) |
| विपरीत अनुपात | 800:1 (Typ.) |
| प्रदर्शन रंगहरू | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| प्रतिक्रिया समय | 25 (Typ.)(Tr+Td) |
| हेर्ने कोण | 85/85/85/85 (Typ.)(CR＞10)(L/R/U/D) |
| आवृत्ति | 60Hz |
| बत्ती प्रकार | 3S9PWLEDWithout Driver |
| संकेत इन्टरफेस | LVDS (1 ch, 6/8-bit), 40 pins |
| इनपुट भोल्टेज | 3.3/10/18.9/-7.8V (VCC/AVDD/VGH/VGL) |
| आवेदन | DPF |
