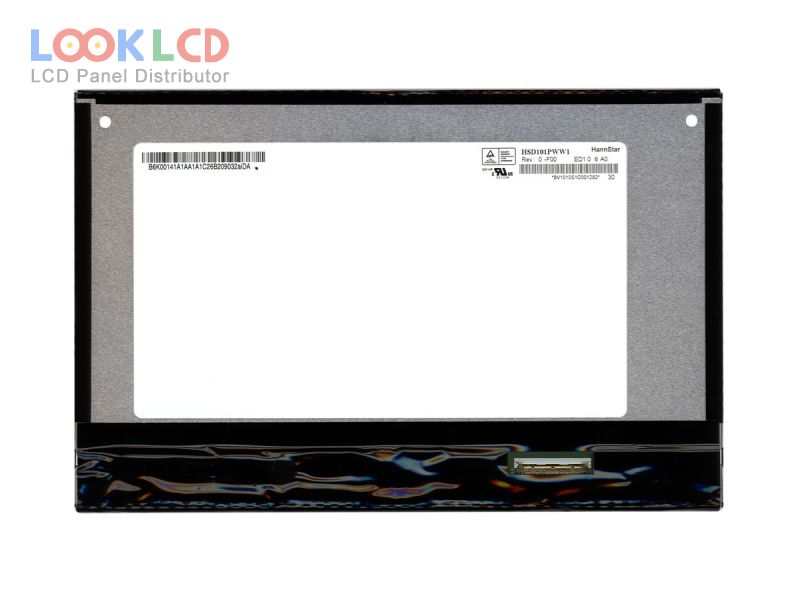

| भाग नम्बर | HSD101PWW1-F00 |
| ब्रान्ड | HannStar |
| साइज | 10.1 |
| आवेदन | PAD |
| संकल्प | 1280×800 |
| रचना | LCM |
| चमक | |
| CR | 800:1 |
| रंगहरू | 262K |
| ब्याकलाइट | WLED |
| इन्टरफेस | LVDS |
| प्यानल ब्रान्ड | HannStar |
| प्यानल मोडेल | HSD101PWW1-F00 |
| प्यानल प्रकार | a-Si TFT-LCD , LCM |
| प्यानल आकार | 10.1 inch |
| संकल्प | 1280(RGB)×800 , WXGA |
| प्रदर्शन मोड | HS-IPS, Normally Black, Transmissive |
| सक्रिय क्षेत्र | 216.96×135.6 mm |
| सतह | |
| चमक | |
| विपरीत अनुपात | 800:1 (Typ.) |
| प्रदर्शन रंगहरू | 262K (6-bit), CIE193145% |
| प्रतिक्रिया समय | 25 (Typ.)(Tr+Td) |
| हेर्ने कोण | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| आवृत्ति | 60Hz |
| बत्ती प्रकार | WLEDEmbedded (LED Driver) |
| संकेत इन्टरफेस | LVDS (1 ch, 6-bit) |
| इनपुट भोल्टेज | 3.3V (Typ.) |
| आवेदन | PAD |
| HSD101PFW1-A01 | HannStar | 10.1 | 1024×576 |
| HSD101PFW2-A00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW2-B00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW2-C00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW3-B00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW4-B01 | HannStar | 10.1 | 1024×600 |
| HSD101PWW1-A00 Rev.4 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-B00 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-F01 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-H00 | HannStar | 10.1 | 1280×800 |
| CLAA101FP05 | CPT | 10.1 | 1920×1200 |
| CLAA101FP05 XG | CPT | 10.1 | 1920×1200 |
| HJ080IA-01E | Innolux | 8.0 | 1024×768 |
| LP097QX1-SPC2 | LG Display | 9.7 | 2048×1536 |
| LTL101AL03-W01 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-002 | Samsung | 10.1 | 1280×800 |
| LTN121AP06-301 | Samsung | 12.1 | 1280×800 |
| N101BCG-GK1 | Innolux | 10.1 | 1366×768 |
| N101ICG-L21 Rev.C2 | Innolux | 10.1 | 1280×800 |
| TM080VDSP01 | Tianma | 8.0 | 1200×1920 |
