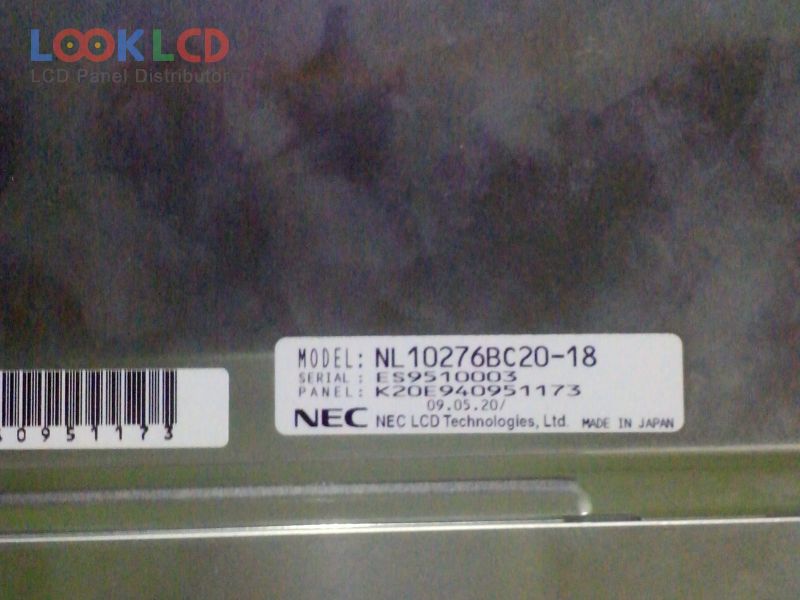

| भाग नम्बर | NL10276BC20-18 |
| ब्रान्ड | NLT |
| साइज | 10.4 |
| आवेदन | IA |
| संकल्प | 1024×768 |
| रचना | LCM |
| चमक | 400 |
| CR | 900:1 |
| रंगहरू | 262K/16.7M |
| ब्याकलाइट | WLED |
| इन्टरफेस | LVDS |
| प्यानल ब्रान्ड | NEC |
| प्यानल मोडेल | NL10276BC20-18 |
| प्यानल प्रकार | a-Si TFT-LCD , LCM |
| प्यानल आकार | 10.4 inch |
| संकल्प | 1024(RGB)×768 , XGA |
| प्रदर्शन मोड | TN, Normally White, Transmissive |
| सक्रिय क्षेत्र | 210.4×157.8 mm |
| रूपरेखा | 228×178.5×9.2 mm |
| सतह | Clear, Hard coating (3H) |
| चमक | 400 cd/m² (Typ.) |
| विपरीत अनुपात | 900:1 (Typ.) |
| प्रदर्शन रंगहरू | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193140% |
| प्रतिक्रिया समय | 3/15 (Typ.)(Tr/Td) |
| हेर्ने कोण | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| आवृत्ति | 60Hz |
| बत्ती प्रकार | 2 stringsWLEDWithout Driver |
| संकेत इन्टरफेस | LVDS (1 ch, 6/8-bit), 20 pins |
| इनपुट भोल्टेज | 3.3V (Typ.) |
| आवेदन | IA |
| NL10276AC20-03 | NLT | 10.4 | 1024×768 |
| NL10276AC28-05R | NLT | 14.1 | 1024×768 |
| NL10276BC16-01 | NLT | 8.4 | 1024×768 |
| NL10276BC16-06 | NLT | 8.4 | 1024×768 |
| NL10276BC20-18 | NLT | 10.4 | 1024×768 |
| NL10276BC24-19D | NLT | 12.1 | 1024×768 |
| NL10276BC30-17 | NLT | 15.0 | 1024×768 |
| NL10276BC30-18 | NLT | 15.0 | 1024×768 |
| NL10276BC30-18L | NLT | 15.0 | 1024×768 |
| NL10276BC30-24D | NLT | 15.0 | 1024×768 |
| EW50855BMW | EDT | 4.7 | 320×240 |
| G150XTN02.0 | AUO | 15.0 | 1024×768 |
| KCB104VG2CA-G43 | Kyocera | 10.4 | 640×480 |
| LQ104V1DG33 | SHARP | 10.4 | 640×480 |
| NL6448AC30-12 | NLT | 9.4 | 640×480 |
| PM070WL3 | E Ink | 7.0 | 800×480 |
| SG12232A | Other | 2.2 | 122×32 |
| TM084SDHG02 | Tianma | 8.4 | 800×600 |
| TM100SV-A01-01 | SANYO | 10.0 | 800×600 |
| TX54D11VC0CAB | JDI | 21.3 | 1600×1200 |
