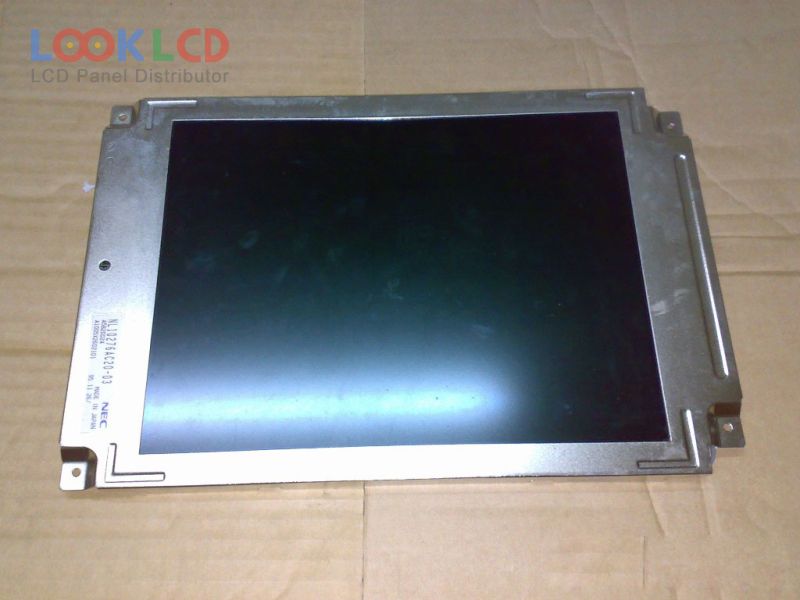

| भाग नम्बर | NL10276AC20-03 |
| ब्रान्ड | NLT |
| साइज | 10.4 |
| आवेदन | IA |
| संकल्प | 1024×768 |
| रचना | LCM |
| चमक | 85 |
| CR | 100:1 |
| रंगहरू | 4096 |
| ब्याकलाइट | CCFL |
| इन्टरफेस | TTL |
| प्यानल ब्रान्ड | NEC |
| प्यानल मोडेल | NL10276AC20-03 |
| प्यानल प्रकार | a-Si TFT-LCD , LCM |
| प्यानल आकार | 10.4 inch |
| संकल्प | 1024(RGB)×768 , XGA |
| प्रदर्शन मोड | TN, Normally White, Transmissive |
| सक्रिय क्षेत्र | 211.968×158.976 mm |
| रूपरेखा | 282×190×13 mm |
| सतह | |
| चमक | 85 cd/m² (Typ.) |
| विपरीत अनुपात | 100:1 (Typ.) |
| प्रदर्शन रंगहरू | 4096 (4-bit), CIE193140% |
| प्रतिक्रिया समय | 40 (Min.)(Tr+Td) |
| हेर्ने कोण | 45/45/25/25 (Typ.)(CR≥10)(L/R/U/D) |
| आवृत्ति | 60Hz |
| बत्ती प्रकार | 1 pcsCCFLEmbedded (Inverter) |
| संकेत इन्टरफेस | TTL (1 ch, 4-bit), 65 pins |
| इनपुट भोल्टेज | 5.0/12.0V (Typ.)(VCC/VDD) |
| आवेदन | IA |
