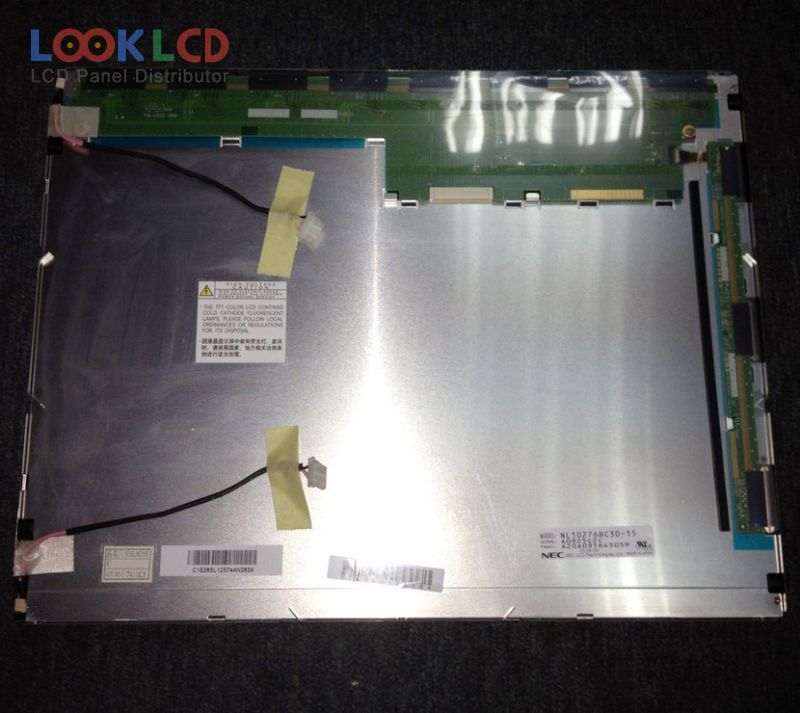

| भाग नम्बर | NL10276BC30-15 |
| ब्रान्ड | NLT |
| साइज | 15.0 |
| आवेदन | IA |
| संकल्प | 1024×768 |
| रचना | LCM |
| चमक | 250 |
| CR | 400:1 |
| रंगहरू | 16.7M |
| ब्याकलाइट | CCFL |
| इन्टरफेस | LVDS |
| प्यानल ब्रान्ड | NEC |
| प्यानल मोडेल | NL10276BC30-15 |
| प्यानल प्रकार | a-Si TFT-LCD , LCM |
| प्यानल आकार | 15.0 inch |
| संकल्प | 1024(RGB)×768 , XGA |
| प्रदर्शन मोड | TN, Normally White, Transmissive |
| सक्रिय क्षेत्र | 304.128×228.096 mm |
| रूपरेखा | 328×252×11.5 mm |
| सतह | Antiglare, Hard coating (3H) |
| चमक | 250 cd/m² (Typ.) |
| विपरीत अनुपात | 400:1 (Typ.) |
| प्रदर्शन रंगहरू | 16.7M (6-bit + Hi-FRC), CIE193160% |
| प्रतिक्रिया समय | 8/17 (Typ.)(Tr/Td) |
| हेर्ने कोण | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| आवृत्ति | 60Hz |
| बत्ती प्रकार | 2 pcsCCFLWithout Driver |
| संकेत इन्टरफेस | LVDS (1 ch, 8-bit), 20 pins |
| इनपुट भोल्टेज | 3.3V (Typ.) |
| आवेदन | IA |
