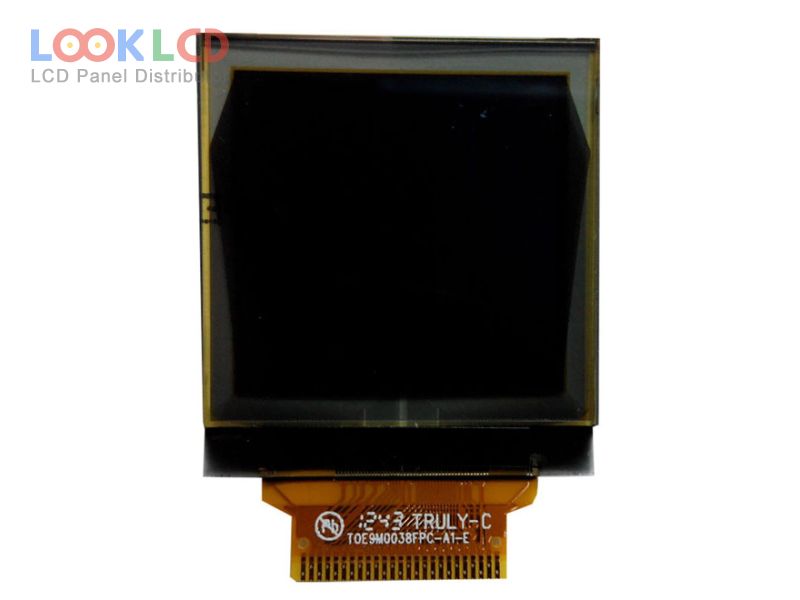

| भाग नम्बर | OEL9M0039-Y-E |
| ब्रान्ड | Other |
| साइज | 1.5 |
| आवेदन | MPH |
| संकल्प | 128×128 |
| रचना | OLED |
| चमक | 60 |
| CR | 10000:1 |
| रंगहरू | Grayscale(Y) |
| ब्याकलाइट | self |
| इन्टरफेस | CPU/SPI |
| प्यानल ब्रान्ड | TRULY |
| प्यानल मोडेल | OEL9M0039-Y-E |
| प्यानल प्रकार | PM-OLED , OLED |
| प्यानल आकार | 1.5 inch |
| संकल्प | 128×128 |
| सक्रिय क्षेत्र | 26.86×26.86 mm |
| रूपरेखा | 34.9×37.8×1.6 mm |
| सतह | |
| चमक | 60 cd/m² (Typ.) |
| विपरीत अनुपात | 10000 : 1 (Min.) |
| प्रदर्शन रंगहरू | Grayscale(Y) (4-bit) |
| हेर्ने कोण | 80/80/80/80 (Min.)(L/R/U/D) |
| आवृत्ति | 100Hz |
| चालक आईसी | COG Built-in SSD1329Z |
| संकेत इन्टरफेस | 8-bit 6800/8080 parallel, SPI, 25 pins |
| इनपुट भोल्टेज | 3.0/3.0/13.0V (Typ.)(VDD/VDDIO/VCC) |
| आवेदन | MPH |
