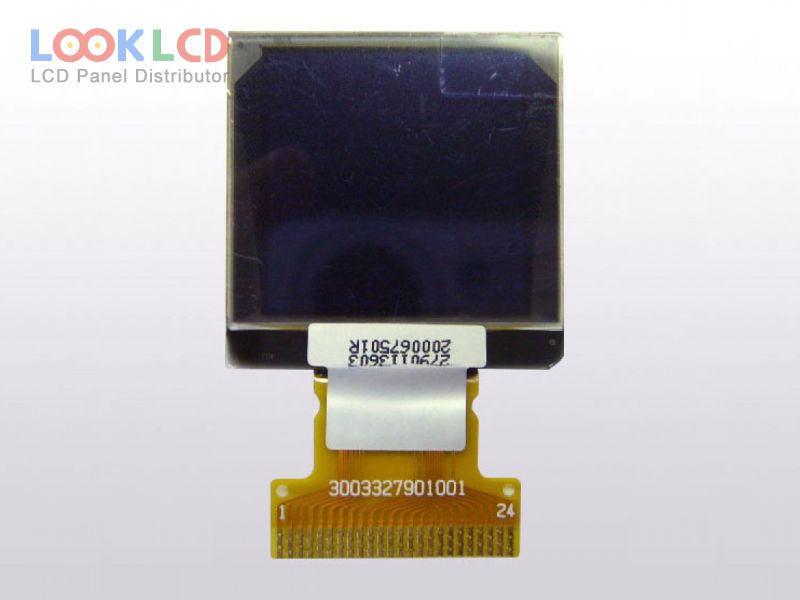

| भाग नम्बर | RGC11096096YR000 |
| ब्रान्ड | RiTdisplay |
| साइज | 1.1 |
| आवेदन | IA |
| संकल्प | 96×96 |
| रचना | OLED |
| चमक | 80 |
| CR | 2000:1 |
| रंगहरू | Mono(Yellow) |
| ब्याकलाइट | self |
| इन्टरफेस | CPU/SPI/I²C |
| प्यानल ब्रान्ड | RiTdisplay |
| प्यानल मोडेल | RGC11096096YR000 |
| प्यानल प्रकार | PM-OLED , OLED |
| प्यानल आकार | 1.1 inch |
| संकल्प | 96×96 |
| सक्रिय क्षेत्र | 20.14×20.14 mm |
| रूपरेखा | 27×27×1.71 mm |
| सतह | Antiglare |
| चमक | 80 cd/m² (Typ.) |
| विपरीत अनुपात | 2000 : 1 (Min.) |
| प्रदर्शन रंगहरू | Mono(Yellow) |
| हेर्ने कोण | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| आवृत्ति | 105Hz |
| चालक आईसी | COG Built-in SSD1327 |
| संकेत इन्टरफेस | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 24 pins |
| इनपुट भोल्टेज | 2.5/3.5/13.0V (Typ.)(VDD/VCI/VCC) |
| आवेदन | IA |
